How Dissolvable Magnesium Alloy Square Bar Enables Smarter Downhole Tool Design

The way we think about downhole tool building in oil and gas completions is changing because of No retrieval required Magnesium Alloy Square Bars. These special profiles were made for making parts that dissolve, like frac plugs and isolation balls. They combine high strength with dissolution properties that can be controlled. The No retrieval required Magnesium Alloy Square Bar is a solution because it lets tools break down completely in certain wellbore fluids without milling. This gets rid of the need for expensive retrieval operations and cuts down on the time needed for post-frac intervention while keeping the structure strong in tough downhole conditions.

Understanding Dissolvable Magnesium Alloy Square Bars in Downhole Applications

Dissolvable magnesium alloy materials are a big change in how operators and completion service providers deal with problems in tool design. These engineered alloys dissolve predictably in wellbore environments, making operational workflows easier than with regular metals that need to be removed mechanically.

The Material Science Behind Controlled Dissolution

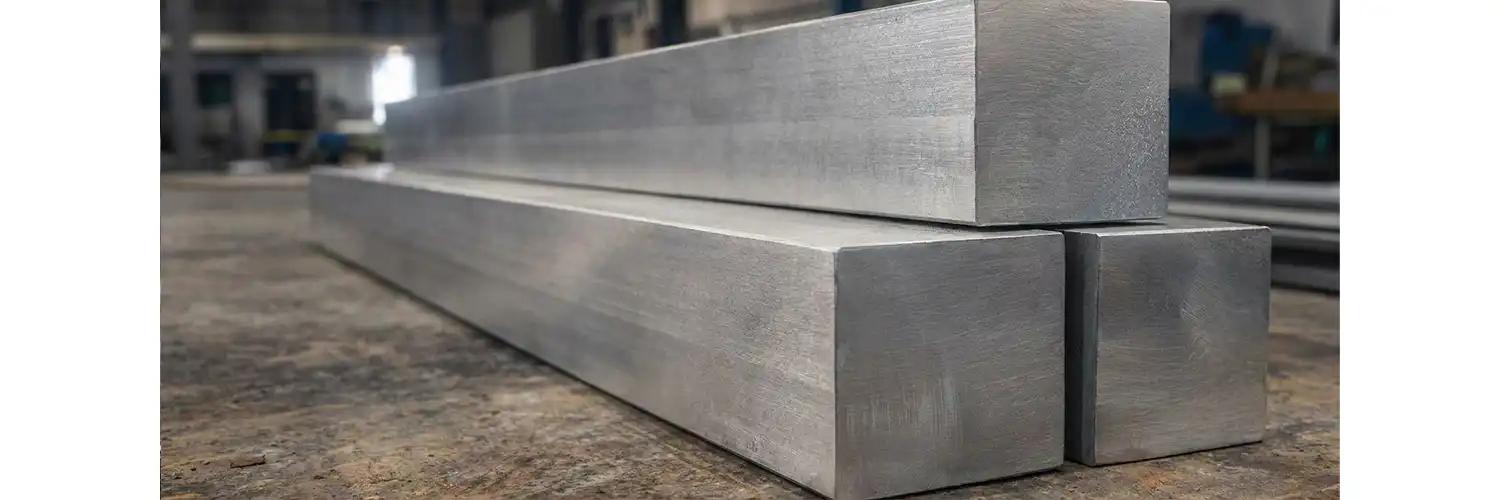

The No retrieval required Magnesium Alloy Square Bar is made from high-purity magnesium metals and was designed to work in harsh underground conditions. At HAGRIEN, we are in charge of the whole metalworking process, from melting the alloy to using 3,600-ton and 5,600-ton presses for extrusion and precision machining to make sure that every batch is the same. Our engineering for dissolution rate balances corrosion behaviour with mechanical performance. This lets tools keep their full structural integrity during hydraulic fracturing operations while dissolving completely within set timeframes after operations. The density of about 1.78g/cm³ makes it much lighter than steel or aluminium alternatives, which makes it easier to handle and better for use in horizontal wells with extended reach.

Why Traditional Metals Fall Short in Modern Completions

Standard materials for downhole tools, like aluminium or steel, have some problems that make them less useful. During milling or fishing activities, retrieval tasks add time to the rig, raise costs, and create technical risks. Even though aluminium is light, it doesn't have the right ratio of strength to weight for high-pressure fracturing stages. Steel parts need to be milled for a long time, which creates debris that can get in the way of production. These materials can't meet the needs of a business that wants to turn things around faster and leave less of an impact on the world.

Engineerable Performance Windows for Specific Wellbore Conditions

It is possible to engineer No retrieval required Magnesium Alloy Square Bars, which makes them stand out. The operating window, which includes temperature ranges, fluid salinity, mineralogy, and target dissolution timelines, tells us how to change the alloy composition and heat treatment parameters. Depending on the grade, the tensile strength is usually between 250 MPa and 310 MPa. The thermal conductivity is between 70 and 140 W/m·K, which makes it easier for heat to escape during high-temperature operations. With this ability to customise, procurement teams can ask for materials that are perfect for the conditions on the ground, whether they are in unconventional shale plays, deepwater environments offshore, or high-temperature geothermal applications.

Overcoming Traditional Downhole Tool Design Limitations with Dissolvable Magnesium Alloy

The switch to dissolvable technology directly fixes problems that have slowed down well completion and hurt the economy across a range of well types.

Eliminating Retrieval Complexity and Associated Costs

To take out traditional bridge plugs and stage isolation tools, you have to use coiled tubing or cable, which takes time away from the rig and costs more money. The No retrieval required Magnesium Alloy Square Bar lets designers make tools that disappear after they've done their job of isolating. Completion service providers say that switching to dissolvable plug systems cuts rig time by 30 to 50 percent. This directly leads to lower well costs and a faster time to production. Workover companies gain a lot during recompletion efforts when they don't have to do as many interventions as they would normally have to.

Weight Reduction and Improved Deployment Logistics

Compared to aluminium, magnesium metals are 33% lighter, and compared to steel, they are 75% lighter. This weight advantage is very important when using multiple tools in horizontal laterals that go beyond 10,000 feet. Lighter tools lower the risks of handling them on the surface, keep deployment equipment from getting tired, and make conveyance more reliable in wells with complicated paths. When tool makers use No retrieval required Magnesium Alloy Square Bars in their designs, the weight is spread out better. This lets them bring more tools on each trip and reduces the overall size of the logistics footprint during multi-stage fracturing operations.

Real-World Performance Validation in Demanding Environments

Field deployments in unconventional oil and gas plays across North America have proven that dissolvable magnesium alloy components work well. Operators in the Eagle Ford and Permian Basin have reported that dissolution rates were successful and matched planned flowback schedules. There was no residual debris that blocked production flow paths. Offshore uses in the Gulf of Mexico, where recovery operations are riskier and cost more, have shown that the materials dissolve completely in high-salinity brines within the time frames that were planned. These case studies show how important innovation is in leading to operating trust and real cost savings.

Core Design Principles for Using Dissolvable Magnesium Alloy Square Bars

To successfully use dissolvable materials in downhole tools, engineers must carefully balance the tools' mechanical performance, the speed at which they dissolve, and their ability to be made.

Matching Alloy Grades to Downhole Operating Conditions

Before you can choose the right magnesium metal grade, you need to know the specifics of your wellbore. The way something dissolves is affected by temperature, pressure, and the chemistry of the fluid, such as its pH, chloride concentration, and the presence of organic acids. Our CNAS-approved high-temperature, high-pressure laboratory data is used by HAGRIEN's engineering team to help customers choose the right materials for their needs. We help people who work in procurement and tool design find the best alloy system (like ZK60A for higher strength applications) that meets both their needs for mechanical properties during deployment and predictable dissolution after use. This matching method cuts down on the costs of trial and error and speeds up the approval process.

Optimizing Dimensions for Structural Integrity and Machinability

When it comes to making complicated tool parts, the No retrieval required Magnesium Alloy Square Bar shape has clear benefits. Our ability to extrude bars with tight standards on sizes up to Ø300 mm in diameter means that producers further down the line can make complex shapes with little waste. When needed, surface roughness specifications help with secondary processes like coating or anodising. The stability of dimensions during the machining process is very important. Our process controls make sure that the parts are straight, uniform, and microstructurally consistent, which lowers the amount of scrap and rework that needs to be done. Tool makers like how easy it is to work with magnesium metals because they can be worked with faster than aluminium and make better chips, which lowers the cost of making each part.

Engineering Heat Treatment Protocols for Performance Balance

The mechanical properties of No retrieval required Magnesium Alloy Square Bars are fine-tuned by heating them and making the process run more smoothly. We engineer temper conditions (like H24 or T5) to get the right balance of tensile strength, ductility, and rate of dissolution. Advanced heat treatment methods improve the stability of the grain structure, which makes the material more resistant to wear when it is subjected to cyclic pressure loads during fracture. This closed loop for materials, process validation, and delivery makes sure that performance is the same across production batches. This is very important for tool makers who have agreed to multi-well projects or framework supply agreements.

Decision-Making Guide for Procurement and Application

When procurement professionals look at different materials for making downhole tools, they need clear ways to figure out which ones are best in terms of technical suitability, supplier reliability, and total cost of ownership.

Comparative Performance: Magnesium Alloys vs. Conventional Materials

Several things stand out when you compare No retrieval required Magnesium Alloy Square Bars to aluminium or steel. Magnesium alloys have a higher specific strength (strength-to-weight ratio), which is important for tools that are used in heavy-duty, high-stress situations. Even though magnesium may cost more per kilogram as a raw material than steel, the total cost of installation is often lower for magnesium because it saves weight, doesn't need to be retrieved, and takes less time to fix. Durability during the operational phase is the same as or better than traditional materials for the intended service life. Another benefit is that the materials are meant to break down over time instead of staying in place forever downhole. Our manufacturing standards are based on aerospace and automobile quality standards, like ASTM B107/B107M. This makes sure that our products always work at a level that meets or exceeds oilfield requirements.

The Importance of Certified, Traceable Material Supply

For downhole applications to be quality assured, suppliers must be carefully checked. HAGRIEN has been certified by ISO 9001, ISO 14001, and ISO 45001, and they have a well-established HSE system and API recognition. Certificates of Analysis (COA), Certificates of Conformance (COC), Safety Data Sheets (SDS), and batch traceability records are all part of the documentation packages we offer. These can help with your internal qualification processes, supplier audits, and project milestone controls. ICP-OES analysis of the chemical composition confirms the exact ratios of alloying elements. Ultrasonic flaw detection according to ASTM E2375 checks the soundness of the inside. Tensile and hardness testing confirm the required temper. This audit readiness lowers your risk when buying things and speeds up the approval process for important projects.

Flexible Supply Models Aligned with Project Cadence

We keep a safety stock of widely specified No retrieval required Magnesium Alloy Square Bars on hand in case we need to do quick sampling or restock in an emergency. Standard sizes usually ship between 2 and 4 weeks, while special sizes or custom windows designed by engineers take 4 to 8 weeks to deliver. When capacity and raw materials allow, expedited production services can meet important project deadlines. We promise to confirm your needs within 24 hours and give you official quotes and delivery plans within 1–3 business days after receiving your technical question answer. This responsiveness is important when deadlines are sped up or when conditions on the job site call for quick material replacement. We handle North American shipping through our U.S. company, which offers open trade terms (EXW/FOB/CIF) that make buying things across borders easier.

OEM Collaboration and Customization Capabilities

Material-structure co-design that is done together is good for tool manufacturers. HAGRIEN supports OEM/ODM partnerships from prototyping to mass production. This includes controlling the drawings and making sure they pass acceptance tests that are in line with your requirements. Our engineering-to-spec service lets us adjust alloy systems and process settings to fit specific working conditions. This is backed up by application engineering support, online troubleshooting, and help on-site through our regional offices. Partners can easily sell solutions under their own names with the help of private labelling choices and regional cooperation models. Because we are so flexible, we can go from being a material supplier to an integrated development partner. This cuts down on the time it takes to get your product to market and makes you more competitive.

Future Trends and Opportunities in Downhole Tool Design Using Magnesium Alloys

The rate at which dissolvable technology is being used shows how the industry as a whole is moving toward operational efficiency, cost savings, and caring for the environment.

Industry Momentum Toward Sustainable Completion Practices

Regulatory frameworks and business sustainability pledges are favouring technologies that leave smaller marks on the environment more and more. No retrieval required Magnesium Alloy Square Bar parts get rid of the need for mechanical recovery, which cuts down on surface waste, the need for chemicals for milling operations, and the total carbon emissions that come with running a rig for a long time. Carbon capture utilisation and storage (CCUS) and geothermal development are two new energy applications that value materials that can reliably work in high-pressure, high-temperature subsurface environments while also supporting cleaner operational profiles. When procurement managers use these materials, their companies stay ahead of changing stakeholder expectations and compliance requirements.

Advances in Alloy Formulation Expanding Capability Boundaries

Improvements in making alloys are increasing their capabilities. The performance range of dissolvable magnesium alloys is still being expanded by ongoing metallurgical research. Rare-earth additions make the material more stable at high temperatures, and improved extrusion methods make the microstructure more regular and improve its tensile qualities. With a CNAS-certified lab and the ability to do large-scale extrusions in-house, HAGRIEN's research and development team is always making alloy systems better to fit the needs of different fields. These improvements make it possible for tool designs that were limited by the materials they were made of before. For example, they allow longer isolation intervals, higher differential pressures, and more aggressive wellbore chemicals. Expanding application windows that support more complex completion architectures and better recovery strategies are good for both tool designers and operators.

Integrated Lifecycle Management and Supply Chain Evolution

Lifecycle management and supply chain evolution work together. As technology moves toward dissolvable materials, it opens the door for new business models that put lifecycle value ahead of transactional material supply. OEMs and material suppliers work together more closely and share performance data from the field to improve alloy formulations and dissolution profiles. The framework deals with set delivery dates, and output capacities make the supply chain less volatile for drilling projects that last more than one year. Our manufacturing-driven approach—which includes keeping an eye on key production steps and making sure that methods are scalable and can be used again and again—supports the long-term supply stability that is needed for high-value projects. This shift toward partnership-based procurement lowers risk, boosts innovation, and makes sure that everyone in the value chain has the same goals.

Conclusion

In conclusion, No retrieval required Magnesium Alloy Square Bars are a tried-and-true material innovation that fixes major problems with the way downhole tools are designed and operations are performed. These materials make smarter and more cost-effective well development possible in unconventional, offshore, and new energy applications by getting rid of the need for retrieval, lowering weight, and allowing engineerable dissolution properties. HAGRIEN offers a reliable and scalable source of materials for procurement professionals and tool manufacturers. Their integrated capabilities include alloy formulation, large-diameter extrusion, precision machining, and full quality documentation. If your company uses dissolvable technology, it will be ahead of the curve when it comes to operational efficiency, sustainability, and getting a leg up on the competition in the changing energy landscape.

FAQ

1. What makes the No retrieval required Magnesium Alloy Square Bar suitable for high-pressure fracturing operations?

Depending on the grade, the alloy's tensile strength ranges from 250 MPa to 310 MPa. This means that the structure stays intact when different pressures are applied during multi-stage fracture. Engineered dissolution profiles make sure that tools keep their mechanical properties during operation and only break down when they come into contact with certain fluid chemicals after operation.

2. How does material weight per meter impact tool deployment in extended-reach horizontals?

Magnesium's density of 1.78g/cm³ makes it much lighter than steel or aluminium. This makes transportation more reliable on complex paths, lowers the risk of surface handling accidents, and lets you use more tools on each trip, which directly lowers operational costs and increases completion efficiency.

3. What quality certifications should procurement teams prioritize when sourcing dissolvable magnesium alloys?

Certifications like ISO 9001, ISO 14001, and ISO 45001 show that a company cares about quality and the environment. Material traceability is ensured by API recognition and CNAS-accredited laboratory validation. Ask for a COA, COC for each batch, and inspection records that show the chemical composition through ICP-OES and non-destructive testing that meet ASTM E2375 standards.

Partner with HAGRIEN for Your Dissolvable Magnesium Alloy Square Bar Needs

If you need a No retrieval required Magnesium Alloy Square Bar, HAGRIEN is the company to talk to. HAGRIEN is ready to help you build your downhole tools by providing approved, traceable, dissolvable magnesium alloy square bars that are made for tough oilfield uses. We offer consistent quality, predictable lead times, and open customisation options that lower the risk of your project because we are an integrated producer that melts, extrudes, and precisely machines alloys in-house. Whether you're a procurement professional, an E&P operator, a completion service provider, or an OEM manufacturer, our team can help you with expert advice, quick quotes, and the right materials for the job. Contact cyrus@us-hagrien.com to get samples, talk about your project needs, or find out how working with a reliable No retrieval required Magnesium Alloy Square Bar supplier can help your business run more smoothly and stand out from the competition.
