Wellbore sealing Rubber Element Applications in Oilfield Packers

When you're specifying components for downhole completion assemblies, the integrity of your zonal isolation depends on one critical interface: the elastomeric seal between your packer body and the casing wall. Wellbore sealing rubber elements are precision-engineered elastomeric components that create hydraulic barriers in oil and gas wells, preventing fluid migration and maintaining pressure integrity across hostile downhole environments. These elements are deployed in packers, bridge plugs, and liner hangers to isolate production zones, control pressure differentials, and protect wellbore integrity throughout the life of the well.

Understanding Wellbore Sealing Rubber Elements

What Are Elastomeric Sealing Elements?

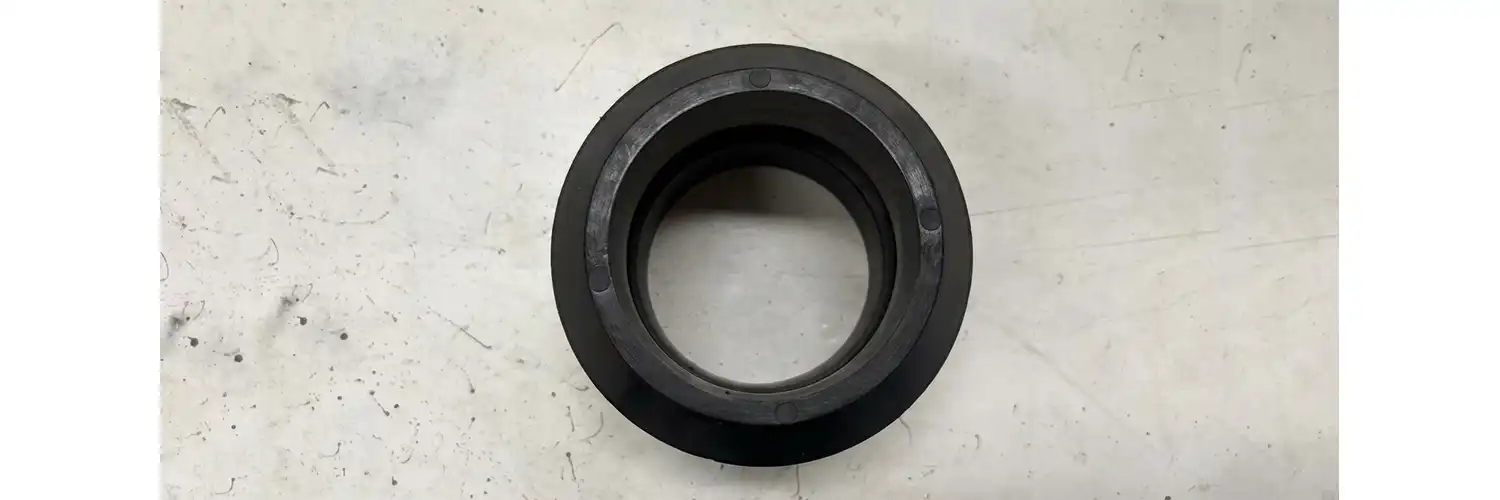

A Wellbore Sealing Rubber Element is an elastomer that can be shaped or extruded and is made to expand in a radial direction when mechanical or hydraulic force is applied. It fills the space between the tool body and the casing or formation face. During the setting and production stages, these elements must be able to handle large differences in pressure, toxic fluids, changes in temperature, and mechanical stress.

Controlled deformation is what makes the sealing mechanism work. When you turn on the packer, the element contracts along its length and grows around its circumference, making close touch with the inner diameter of the casing. This contact pressure needs to be higher than the formation pressure to stop leaking, and the material can't be forced out of clearance gaps when the difference pressure is high.

Material Selection and Engineering Principles

Performance depends on the choice of materials. Nitrile rubber (NBR) is a cheap way to seal things up to 120°C and in moderate temperatures. Hydrogenated nitrile butadiene rubber (HNBR) increases the temperature range of its use to 180°C and is better at withstanding sour gas environments that contain H2S and CO2. Fluoroelastomer (FKM) compounds can withstand temperatures of up to 230°C and are not affected by strong acids, hydrocarbons, or steam. EPDM works great for steam pumping and hot water uses, but it gets bigger when it comes in touch with hydrocarbons.

Shore A hardness (usually 70–95), which controls how the material compresses and how well it resists extrusion, is one of the most important design factors. When the tensile strength is above 15 MPa, the fabric doesn't tear when it expands. Setting the compression set below 25% makes sure that the element keeps its closing force for a long time. Resistance to rapid gas decompression (RGD) according to ISO 23936-2 and NORSOK M-710 stops internal burning when pressure drops quickly during well control events.

Integration with Packer Systems

Elastic parts are used as a part of a bigger closing system. Back-up rings made of PEEK, PTFE, or metal stop rubber from running into holes when there is a lot of differential pressure. The shape of the elements—whether they are single, dual, or segmented—affects how well they seal and how much force is needed to set them. The part where the element meets the metal packer body needs to be able to handle differences in thermal expansion while still keeping the mechanical lock during setting.

Applications of Wellbore Sealing Rubber Elements in Oilfield Packers

Zonal Isolation in Multi-Stage Fracturing

When plug-and-perf processes are done in unconventional shale completions, elastomeric sealing parts are very important. When high-rate pumping is done, high-durometer rubber elements in bridge plugs must separate each fracture stage while withstanding pressure spikes of up to 10,000 psi and rough proppant slurries. During the frac treatment, the element must keep the seal intact for hours. After that, it must be possible to retrieve or dissolve the element without affecting the integrity of the casing.

Completion service providers say that element failures cause about 12% of stage separation problems, which need expensive fixes. Choosing the right compound and hardness for your fluid system and pump schedule lowers the risk of bypass and raises the effectiveness of stimulation.

Permanent Packers in HPHT Gas Wells

Deepwater gas wells that work at temperatures and pressures above 12,000 psi and more than 180°C need reliable seals for a long time. Permanent production packers use HNBR and FKM elements that must be able to withstand thermal aging, chemical breakdown from sour gas, and mechanical fatigue from pressure cycling over a production life of 20 years or more.

When sustained casing pressure (SCP) events happen, they are often caused by elastomer degradation. Laboratory studies that simulate 10,000 hours of use at room temperature show that the hardness rises, the tensile strength falls, and the compression set grows. These changes can be used to predict how the material will work in the field. More and more, operators are asking for NORSOK M-710 qualified parts to lower the chance of long-term leaks.

Enhanced Oil Recovery and Geothermal Applications

When heavy oil is recovered thru steam injection wells, the sealing elements are exposed to constant 260°C steam, changing pH, and thermal cycling. Even tho the conditions are harsh, EPDM and certain Aflas-based compounds keep their elasticity and sealing force. This keeps steam from getting into areas that aren't supposed to be there, which would lower the effectiveness of the sweep.

For geothermal energy projects that drill into high-temperature sources, the same kinds of materials need to be used. The Wellbore Sealing Rubber Element has to be able to handle formation brines that are high in minerals and temperatures that are getting close to the highest point at which an elastomer can stay stable. It also has to be able to provide solid zone isolation for decades of power production.

Blowout Preventer Ram Packers

In an emergency, surface safety systems need to be able to be activated quickly and seal well. Within seconds, elastomeric ram packer elements must seal against the pipe or in the open hole, stopping corrosion from wellbore fluids at full wellhead pressure. Extreme temperatures, ranging from arctic cold to wellhead fire, are used to test the flexibility and compression set resistance of materials.

Comparative Analysis: Selecting the Right Wellbore Sealing Rubber Element

Synthetic vs. Natural Rubber Compounds

Natural rubber is very tough to tear and flexible at low temperatures, but it breaks down quickly in high temperatures, solvents, and ozone. These days, oilfield packers only use synthetic elastomers that were made to work in certain conditions downhole.

NBR is a moderately priced material that has good oil protection and mechanical qualities. It can be used in wells below 120°C with sweet crude or water-based fluids. HNBR can handle temperatures up to 180°C and is resistant to sour gasses, which makes it the standard choice for unconventional completions onshore. FKM can work in harsh chemical conditions and temperatures up to 230°C, which is why it is used in offshore HPHT wells where the cost of replacing elements is too high. EPDM doesn't expand in oil or steam, so it can only be used in thermal EOR applications.

Material Property Trade-offs

Choosing the right level of hardness means combining different needs. Softer compounds (Shore A 70–80) are easier to seal when setting forces are low and they can work with flaws in the case. However, they are easier to extrude when differential pressure is high. Harder compounds (Shore A 85–95) don't extrude and keep their shape, but they need more setting force and might not be able to smooth out flaws in the case.

Chemical resistance gets better as fluorine content goes up, but at the same temperatures, FKM materials have higher compression set than HNBR. Crosslink density affects thermal stability, but polymers with a lot of crosslinks lose their ability to bend at low temperatures. For your unique needs in terms of pressure, temperature, fluid chemistry, and isolation time, the material you choose must make the best use of these trade-offs.

Hybrid and Backup Systems

A lot of modern packers have elastomeric parts and metal backup rings or metal-to-metal seals. The elastomeric element seals the case at first and works with its limits, while the backup system stops extrusion and offers a backup. Hybrid designs that use split elements with various hardness zones improve both sealing and extrusion resistance in a single part.

Procurement Insights: Sourcing Wellbore Sealing Rubber Elements Globally

Supplier Qualification and Certification Requirements

When looking for Wellbore sealing Rubber Element elastomeric sealing parts, make sure the company you're buying from has an ISO 9001 quality management system and written process controls for mixing, molding, and curing. Material traceability from batches of raw polymer to finished parts helps find the root cause of problems in the field and ensures consistent performance.

Technical know-how can be shown by a CNAS or similar laboratory approval for checking physical properties, chemical aging, and high-pressure seals. API certificates for certain packer models give you extra peace of mind, but many dissolvable and specialized tool designs don't follow API guidelines. Instead, they use ISO standards and operator-specific qualification procedures.

Production Capability and Customization

Check to see if possible sellers can help you choose materials based on your working window, not just catalog compounds. Can they change the formulas to meet different needs, such as sour gas resistance and compression set? Do they still have the ability to make prototypes, which could include rapid sampling and testing in small steps?

Minimum order amounts are very different. For unique profiles, large molding operations may need hundreds or even thousands of pieces. Smaller specialty makers, on the other hand, can be flexible for trial projects or limited production runs. Lead times are usually between 2 and 4 weeks for standard profiles in compounds that are in stock, and between 4 and 8 weeks for special formulations or complicated shapes that need custom tools to be made.

Integrated Supply Considerations

When sealing elements, metal packer parts, and dissolvable plugs come from different suppliers, the buying process becomes more complicated. During assembly, problems with compatibility arise, and it takes longer to fix them because of problems with parts from different vendors. Integrated makers that offer coordinated supply of metal and dissolvable parts along with rubber seals make purchasing easier, lower interface risks, and speed up problem-solving by providing unified engineering support.

Maintenance and Longevity: Maximizing the Life of Wellbore Sealing Rubber Elements

Handling and Storage Best Practices

If elastomeric sealing elements are stored incorrectly, they break down before they can be installed. Crosslinks break down and plasticizer is lost when exposed to sunshine, ozone, high temperatures, or chemicals that don't mix. Keep things away from UV light, ozone sources like electric motors, and petroleum solutions in packages that can't be opened. Keep the temperature in storage between 5°C and 25°C and the humidity below 70%.

Different compounds have different shelf lives. NBR usually lasts 5–10 years, HNBR 7–12 years, and FKM 10–15 years if stored properly. Batch codes allow inventory to be rotated, which makes sure that older stock is used up before it goes bad. Before installation, a visual check should find surface cracks, hardening, or stickiness that show degradation.

Installation Factors That Affect Performance in the Field

Damage to elements during installation leads to more fails than limits in the materials themselves. Back-up rings and packer bodies shouldn't have any sharp edges that could cut the element during assembly. Use the right lubricants that are compatible with both the elastomer and the fluids that are going down the hole. For example, petroleum grease speeds up the breakdown of FKM, and silicone lubricants could affect the production of hydrocarbons.

Setting speed and force have an effect on how well something works in the long run. Compression hysteresis causes heat to be released during rapid setting, which could damage the element before it fully opens. When there isn't enough setting force, there are holes in the space where extrusion starts when pressure is applied. To get the most out of element expansion and mechanical lock, make sure you follow the manufacturer's instructions for setting pressure, ramp rate, and hold time.

Predicting Service Life and Replacement Timing

In expected ways, environmental factors speed up the aging process. Thermal aging is based on Arrhenius kinetics, which says that for every 10°C rise in temperature, chemical reaction rates almost double, cutting service life in half. By comparing bottomhole temperature patterns to data from a laboratory age experiment, we can figure out when hardness will rise and compression set will grow, which will make sealing less effective.

The effects of chemical exposure depend on the type of fluid. Taking in H2S and CO2 changes the crosslink density, and organic acids break down the backbone polymer chains. Periodic pressure testing during workover operations finds worn-out seals before they cause production losses. Planning to replace elements during planned interventions is a lot cheaper than having to do emergency workovers because of a leak that you didn't see coming.

Conclusion

Even tho dissolvable and metal sealing technologies have improved, elastomeric sealing components are still needed to keep the wellbore intact. For the Wellbore Sealing Rubber Element to work well in a variety of working situations, it has to meet different needs for sealing effectiveness, resistance to extrusion, chemical stability, and heat endurance. Choosing the right material affects how well it works. Matching the polymer chemistry and chemical composition to the pressure, temperature, and fluid environment reduces risk and increases service life. Not only should the cost of the parts be taken into account when making a procurement choice, but also the supplier's technical help, the ability to track down materials, and the consistency of production. Handling, installation, and preventative maintenance that are done correctly protect the well's integrity throughout its production lifecycle and get the best return on investment.

FAQ

1.How does H₂S exposure affect elastomeric sealing elements?

Hydrogen sulfide reacts with crosslinks in elastomers, making NBR materials harder and less flexible. When HNBR has a lot of acrylonitrile in it, it resists H₂S better and keeps its flexibility and sealing power in sour service. For wells with H2S levels above 50 ppm, specify HNBR. For critical applications, check that the well meets the requirements for sour service according to NORSOK M-710.

2.What causes seal extrusion under pressure?

Differential pressure forces the elastomer into gaps between the packer body and casing, which is called extrusion. Extrusion risk goes up when differential pressure is high, compounds are soft, clearances are large, and temperatures are high. This type of failure can be lessened by using anti-extrusion backup rings and harder rubber materials. It is very important that the element shape matches the limits of the casing.

3.Can elastomeric elements be reused after retrieval?

When sealing parts are set up and used, they permanently change shape. Compression set, surface damage from contact with the casing, and chemical exposure all make it less reliable to use again. When using elastomeric sealing parts, they should only be used once. Compared to the risk of leaks from a used part, the cost of a new one is very small.

Source High-Performance Wellbore Sealing Rubber Elements from HAGRIEN

Material quality and engineering precision are the first steps to making sure that a downhole tool will work. Shaanxi Hagrien Energy Technology Co., Ltd. (HAGRIEN) makes Wellbore Sealing Rubber Elements that are designed to work in real-world situations and support packers, bridge plugs, and finishing tools that have been tested and proven to work. Our production system is fully traceable, checks the quality of the materials, and is ISO 9001/14001/45001 certified. With CNAS-approved HTHP lab testing, we offer COA documentation, batch tracking, and a choice of materials that are best for your needs in NBR, HNBR, FKM, and EPDM compounds. As a seller of a combined Wellbore Sealing Rubber Element, we arrange elastomeric seals with dissolvable magnesium alloy plugs and metal packer parts. This cuts down on vendor fragmentation and speeds up approval. For help choosing materials and quotes, email cyrus@us-hagrien.com.
