How to Balance Strength and Dissolution Rate in Magnesium Alloys?

To get the right balance between strength and breakdown rate in magnesium alloys, the chemical makeup, microstructure, and working conditions must be carefully managed. Dissolvable Magnesium Alloy materials achieve this balance by using engineered alloy design to include certain elements such as aluminum, zinc, and rare earths to improve their mechanical qualities and ensure repeatable performance downhole. The important thing is to make sure that the material's behavior matches the working windows, which are temperature, salinity, and fluid chemistry. This way, tools can keep their shape during fracturing operations and then dissolve fully in wellbore fluids without any milling help.

Introduction

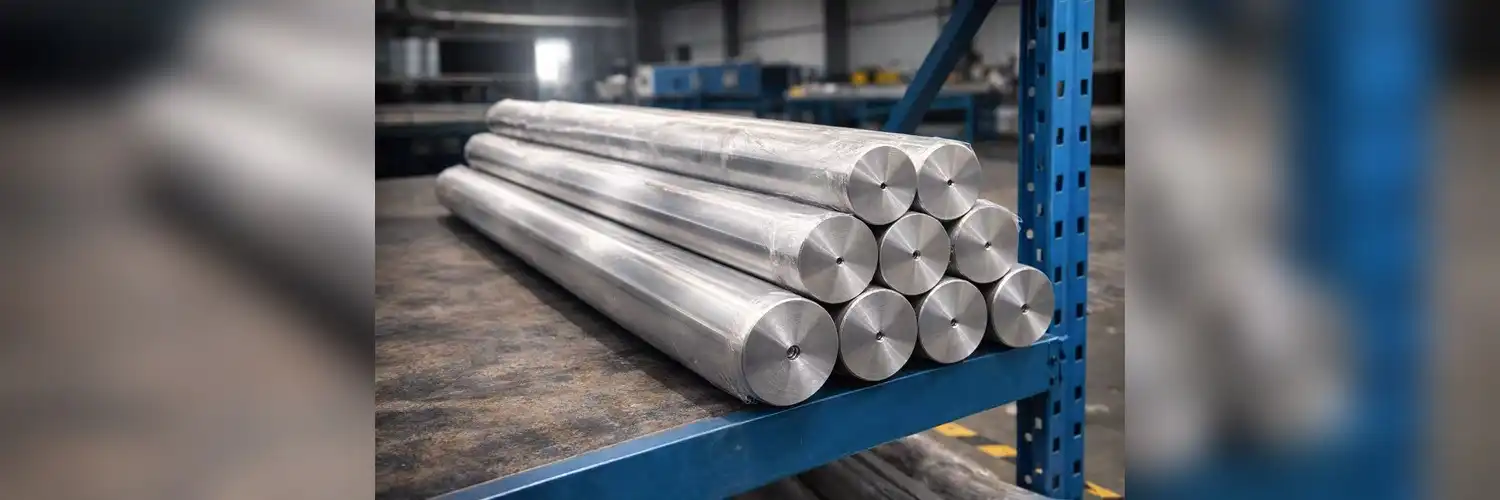

In multistage fracturing, the oil and gas industry faces intervention time, milling risks, and tool retrieval challenges. Dissolvable Magnesium Alloy bars enable bridge plugs and packers that survive 15,000 psi and 150°C during fracturing, then dissolve in produced brine to clear the wellbore. This guide provides technical and purchasing insights for completion service providers, E&P operators, and OEM makers to lower operational risk and improve project cost-effectiveness through informed material sourcing.

Understanding the Core Challenge: Balancing Strength and Dissolution Rate

Why This Balance Matters in Downhole Applications?

A dissolvable tool's zone isolation depends on strength. Tensile strength of 240-380 MPa and yield strength of 180-300 MPa prevent deformation under load, maintaining seal integrity during fracturing. Controlled degradation rates of 10-200 mg/cm²/h in 3% KCl enable dissolution windows of 24 hours to 21 days based on temperature and fluid chemistry. Dissolvable Magnesium Alloy bars must balance these properties—too fast causes premature failure, too slow delays production and eliminates milling cost savings.

The Consequences of Imbalance

Material failure too soon during fracturing operations can cause stages to be lost, which can require expensive repairs and cause production schedules to slip. On the other hand, tools that don't dissolve within the planned windows slow down production, causing operators to switch back to traditional milling, which comes with risks like making trash, having pipes get stuck, and having to spend more time on the rig. The effect on the economy goes beyond the immediate costs; unpredictable material behavior makes it harder to plan field growth and lowers trust in the use of dissolvable technology.

Analytical Insights: Factors Influencing Strength and Dissolution Rate

Chemical Composition and Microstructural Engineering

Alloy creation starts with magnesium as the base metal plus micro-alloy additions. Aluminum (2-9 wt%) provides solid-solution and precipitate strengthening. Zinc improves corrosion uniformity, reducing localized pitting. Manganese enhances ductility and grain refinement. Rare earth elements modify phase distribution. Dissolvable Magnesium Alloy bars rely on extrusion methods ensuring uniform grain size and secondary phase distribution across billets up to 300 mm diameter. Evenly distributed Mg₁₇Al₁₂ intermetallics create micro-galvanic cells causing uniform surface corrosion.

Environmental Operating Conditions

Unconventional plays and standard reservoirs have very different downhole conditions. Elevated temperature speeds up electrochemical reactions by a factor of ten; between 25°C and 150°C, breakdown rates can go up by ten times. The amount of chloride in created water changes how magnesium surfaces passivate; in general, higher salt makes degradation happen faster. The safety of corrosion products is affected by the pH of the fluid; acidic conditions from CO₂ or H2S contact can change the way things dissolve.

Processing Techniques That Fine-Tune Performance

The T4 and T6 tempers change the size and spread of the precipitates, which lets producers change the balance between strength and dissolution for different uses. T4 solution treatment followed by natural aging gives middling power with faster dissolution, making it good for finishing in a shorter amount of time. T6 fake aging makes things stronger by distributing the particles in the best way. This is good for HPHT wells that need to keep their structure strong for a long time before it breaks down naturally.

Texture and leftover stress states are affected by extrusion factors such as temperature, ram speed, and die design. These things have an effect on both mechanical distortion and the places where rust starts. Depending on the needs of the application, surface finishing methods can either add safe layers or speed up the initial dissolution.

Practical Approaches to Achieving the Optimal Balance

Engineerable Dissolution Windows Through Alloy Customization

Material suppliers that focus on downhole uses create their own alloy systems that are specifically made for certain working environments. Engineers can set breakdown rates that work with plans by changing the ratios of elements and the ways they are processed. For example, a deepwater Gulf of Mexico completion needs a tool life of 72 hours at 120°C in brine with 180,000 ppm TDS, which is different from a horizontal well in the Permian Basin that needs 14-day windows at 90°C.

This ability to customize, choosing materials goes from being a one-time buy to a relationship between engineers. Suppliers that offer dissolution window engineering set up test methods that mimic real wellbore conditions. This gives you validation data that you can use for approval and risk assessment.

Manufacturing Scale and Consistency Control

Large-diameter extrusion solves a major problem in procurement: accuracy from batch to batch. Dissolvable Magnesium Alloy billets up to Ø300 mm allow the making of complicated tool shapes from a single forging, which gets rid of the need for weld points that cause corrosion and galvanic couples. High-capacity extrusion presses (3,600-ton to 5,600-ton) keep the flow of metal and temperature even, which makes microstructures that are regular and reliable in the field.

Dimensional stability and surface quality have a direct effect on how well later cutting works. Tight standards on diameter, straightness, and surface finish help tool makers cut down on scrap and repair costs. Process controls that make sure these traits are present in all production lots reduce the work needed for approval and speed up the time it takes for new tool designs to reach the market.

Verification and Traceability Protocols

Industrial-grade materials are kept separate from lab specimens by strict quality control. ICP-OES study of the chemical composition proves micro-alloying accuracy to within 0.01 wt%, making sure that the rate of dissolution matches the design requirements. Testing the mechanical properties at both room temperature and high temperatures confirms the performance ranges for conditions downhole. Standardized dissolution rate tests in virtual fluids gives real-world information that can be used to guess how things will behave in the field.

Non-destructive testing with ultrasonic inspection finds holes or inclusions inside a material before it is machined. This stops expensive fails that happen later in the process. Scanning electron microscopy is used to look at the microstructure and make sure that the grains are smooth and the phases are evenly distributed. These steps of proof, which are written down in certificates of analysis and conformance, help the process of qualifying suppliers and create audit trails for root cause investigations.

Comparing Dissolvable Magnesium Alloys with Alternative Materials

Performance Differentiation from Traditional Solutions

Traditional composite bridge plugs have been shown to be reliable, but they need to be milled, which takes 4 to 8 hours per plug in horizontal wells with many steps. Milling creates dust that can hurt finishing machinery and make the wellbore width smaller. Cast iron bolts are very strong, but they take longer to mill and produce more waste.

Dissolvable Magnesium Alloy systems don't need any cutting at all, which cuts down on finishing times by days and gets rid of the risk of getting a pipe stuck. Biodegradable plastics aren't strong enough for high-pressure uses, but engineered magnesium metals can handle compressive forces of over 350 MPa while still breaking down in a predictable way. The lighter weight compared to strength—density of about 1.8 g/cm³ vs. 7.8 g/cm³ for steel—makes it easier to handle and requires fewer setting tools.

Economic and Supply Chain Considerations

When comparing the costs of materials, you need to look at the well's overall economics, not just the unit prices. Even though magnesium alloys cost more per pound than cast iron, not grinding saves between $15,000 and $50,000 per well, based on the number of stages and the rate of the rig. Shorter finishing times speed up the start of production, which makes net present value estimates better, especially in unconventional wells with high decline rates.

For large-scale field projects, supply chain dependability is very important. Buying from suppliers with a history of making things, keeping standard sizes in stock, and having good track records lowers the risk of the purchase. Lead times of two to four weeks for stock items and four to eight weeks for designed standards make it possible to plan projects around drilling schedules. Options for expedited production give you the freedom to speed up completions or fix problems.

How to Source High-Quality Dissolvable Magnesium Alloys?

Supplier Qualification Criteria

Certification files show that quality management is organized and rules are followed. ISO 9001 certification shows that you can control the production process. ISO 14001 and ISO 45001 certifications show that you care about the environment and safety, which is something that big operators are increasingly looking for. Third-party confirmation of testing skills is provided by API recognition and CNAS-accredited laboratory qualifications. Safety production permits and health and safety systems make sure that suppliers follow the rules for dealing dangerous materials.

Integration of manufacturing tells the difference between real makers and wholesalers. Suppliers who are in charge of melting, extruding, and heat treating alloys can fix technical problems by making changes to the process instead of negotiating with vendors. When problems happen in the field, having metals experts on staff lets you figure out what went wrong and fix it. Large-scale molding capacity makes sure that supply stays steady for field development projects that last for more than one year.

Evaluating Technical Capabilities and Customization

OEM/ODM features let tool makers work together to create materials that fit their own designs. Product development stages are sped up when suppliers offer technical help, which includes choosing the right alloy, improving the process, and doing qualification tests. By showing dissolution rate graphs for different temperature and salinity levels, it is possible to make accurate guesses about how well something will work before spending a lot of money on field tests.

Procurement teams can check that performance claims are true before they agree to a program by using sample programs with written test methods. For internal engineering studies, full datasheets with information like mechanical properties at temperature, dissolution rates in relevant fluids, and microstructural characterization are useful. Traceability of batches from the melt lot to the final inspection makes sure that everyone is responsible and helps with ongoing growth.

Building Long-Term Partnerships

For trade ties to last, you need to do more than just buy things. Suppliers who can show that their production can be scaled up from small prototypes to multi-well projects are easier to qualify. Predictable delivery promises that are aligned with drilling plans keep inventory costs low and keep critical path delays from happening. Responding technical support, such as debugging over the phone or in person, helps solve problems in the field before they become fails.

Being open about how capacity is allocated and where raw materials come from boosts trust for large-scale operations. Suppliers who keep extras of important sizes in stock protect against changes in demand. Flexible trade terms (EXW/FOB/CIF) and the ability to work together across regions (for example, North American business companies) make it easier to buy things internationally and lower the risk of exchange rates.

Conclusion

Finding the right mix between magnesium metals' strength and rate of dissolution is both a materials science problem and a chance to buy things. Dissolvable Magnesium Alloy requires knowing how the makeup, microstructure, and environmental factors that affect downhole performance work together. Instead of just looking for the lowest unit price, sourcing choices should focus on suppliers who can show they can be engineered, make a lot of products, do thorough verification, and commit to a relationship. As finishing technologies improve and become less invasive, dissolvable materials will become more important in unusual, offshore, and new energy uses. When procurement teams build relationships with suppliers based on technical teamwork and supply chain reliability, they will be able to take advantage of competitive benefits in terms of operations efficiency and project economics.

FAQ

1. What alloying elements are most important in Dissolvable Magnesium Alloy formulations?

Precipitation hardening makes aluminum stronger. The amount of hardening is usually controlled between 2 and 9 weight percent, based on the desired mechanical qualities. Zinc makes rusting more even and lessens pitting in specific areas. In metals, manganese improves flexibility and makes grain structure better. Rare earth elements change the spread of the secondary phase, which improves both strength and electrochemical activity so that breakdown patterns can be predicted.

2. How do dissolution rates compare to other downhole metals?

In comparison to corrosion-resistant alloys like titanium or stainless steel, Dissolvable Magnesium Alloys break down at rates between 10 and 200 mg/cm³/h in common wellbore fluids. This managed decline gets rid of the need for mechanical removal while keeping the structure strong during operation, which is something that traditional materials can't do.

3. What should buyers prioritize when selecting suppliers?

Quality management and testing certifications (ISO 9001, CNAS laboratory accreditation), manufacturing integration that controls key process steps, large-diameter extrusion that ensures batch consistency, documented traceability systems, and quick technical support for engineering that is specific to the application are some of the things that set qualified suppliers in this category of specialized materials apart.

Partner with HAGRIEN for Reliable Dissolvable Magnesium Alloy Supply

HAGRIEN blends deep downhole application knowledge with combined manufacturing, which includes melting alloys, extruding them, and precision machining. As a well-known company that makes Dissolvable Magnesium Alloy for oil and gas completions around the world, we offer engineerable options that balance strength and dissolution for your unique operating conditions. Our Ø300 mm extrusion capability, CNAS-accredited HTHP laboratory, and ISO-certified quality systems make sure that each batch is consistent and that quality can be tracked from the pilot to the production scale.

We have been in constant production for about seven years, starting in 2019. We keep safety stock on hand for quick samples and standard deliveries within two to four weeks. Customized engineering requirements are met in four to eight weeks, with options for faster delivery. Our full paperwork packages (COA/COC/SDS) and batch tracking meet your qualification needs, and our North American coordination team's responsive engineering backs them up.

If you're making dissolvable bridge plugs, packers, or separation parts, HAGRIEN can give you the reliable materials, expert support, and reliable supply chain that your projects need. Email our team at cyrus@us-hagrien.com to talk about the needs of your application, get detailed datasheets, or set up a free evaluation.

​​​​​​​

References

1. Atrens, A., Song, G.-L., Liu, M., Shi, Z., Cao, F., & Dargusch, M. S. (2015). Review of recent developments in the field of magnesium corrosion. Advanced Engineering Materials, 17(4), 400-453.

2. Esmaily, M., Svensson, J. E., Fajardo, S., Birbilis, N., Frankel, G. S., Virtanen, S., ... & Johansson, L. G. (2017). Fundamentals and advances in magnesium alloy corrosion. Progress in Materials Science, 89, 92-193.

3. Zhao, D., Huang, Y., Jin, W., Zhang, L., Zheng, Y., & Atrens, A. (2020). Influence of aluminium and zinc on the mechanical properties and degradation behavior of magnesium-based alloys for biomedical applications. Journal of Materials Science & Technology, 54, 1-15.

4. Ballerini, G., Bardi, U., Bignucolo, R., & Ceraolo, G. (2005). About some corrosion mechanisms of AZ91D magnesium alloy. Corrosion Science, 47(9), 2173-2184.

5. Liu, M., Schmutz, P., Uggowitzer, P. J., Song, G., & Atrens, A. (2010). The influence of yttrium (Y) on the corrosion of Mg-Y binary alloys. Corrosion Science, 52(11), 3687-3701.

6. Hort, N., Huang, Y., Fechner, D., Störmer, M., Blawert, C., Witte, F., ... & Kainer, K. U. (2010). Magnesium alloys as implant materials–principles of property design for Mg-RE alloys. Acta Biomaterialia, 6(5), 1714-1725.
