How Controlled Dissolution Helps Reduce Mill-Out and Intervention Risk

Controlled dissolving technology uses designed breakdown of Dissolvable Magnesium Alloy parts to change how operators deal with problems during downhole finish. Instead of needing expensive milling or retrieval operations after the fracturing stages, these advanced materials dissolve reliably in wellbore fluids. This means that there is no need for mechanical involvement, operating risks are lower, and production timelines are shortened. Two major problems are directly fixed by this feature: the unpredictable removal of tools and the high costs of workover operations after a fracture.

Understanding Mill-Out and Intervention Risks in Well Completions

Mill-out processes have been a big operational bottleneck in multistage hydraulic fracturing for a long time. When bridge plugs, packers, or stage isolation tools are still in the wellbore after stimulation, workers have to use coiled tubing units or drill kits to take them out by hand. Several risks are introduced by this process, which affects both safety and the economy.

The Hidden Costs of Mechanical Intervention

Traditional mill-out methods come with a lot of operating costs on top of the straight service costs. Setting aside rig time for milling operations can push back finish dates by days or weeks, which delays production start-up and income. Abrasive milling causes equipment to wear out, which creates metal chips that can damage output tubes or block flow. When recovery efforts go wrong, tools getting stuck add to the delays and make the intervention more difficult.

Downtime and Supply Chain Disruption

When mill-out problems cause project timelines to slip, procurement teams face extra problems. Unplanned moves of tools makes it harder to coordinate operations, especially in places that are far away or offshore. Downtime can last even longer if the service provider isn't available during busy times. These breaks have a ripple effect on operating schedules, which lowers the efficiency of capital utilization and the economics of the project.

Choosing the right materials is a key part of dealing with these problems. Advanced alloy systems that break down on a managed plan get rid of the need for mechanical removal completely, which completely changes how the finishing process is designed.

Controlled Dissolution—The Core Principle Behind Risk Reduction

Controlled dissolution is based on the engineering concept of precisely controlling the rate of electrochemical breakdown. Dissolvable Magnesium Alloy systems are made to break down on schedules that are in line with business needs, unlike unchecked corrosion that can cause structures to fail at any time.

Dissolution Rate Engineering

How quickly these things break down in downhole conditions depends on a number of things. Corrosion protection and degradation speed are directly affected by the alloy's makeup, especially the amounts of aluminum, zinc, manganese, and rare earth elements that are present. Temperature and the chemistry of the fluid, such as its pH and salt, can speed up or slow down the breakdown process. Surface processes and microstructural features can be used to finetune performance factors even more.

Testing and Validation Protocols

Before being used in the field, dissolution behavior is checked using normal measurement methods. Corrosion rates are measured using standardized immersion tests in wellbore fluids that are similar to the real thing. These fluids are usually 3% KCl solutions at high temperatures. Advanced methods for characterizing materials, such as scanning electron microscopy (SEM) and energy-dispersive X-ray spectroscopy (EDX), show that the breakdown pattern is uniform, rather than localized pitting, which could lead to early mechanical failure.

HAGRIEN has a high-pressure, high-temperature laboratory that is approved by CNAS and works like a real wellbore. We confirmed that the tool's tensile strength (240–380 MPa) and yield strength (180-300 MPa) stay stable over its entire service life. Degradation only starts when it comes into contact with target fluid environments. This process of verification gives people who work in buying written information about performance that helps them make qualification choices.

Properties and Benefits of Dissolvable Magnesium Alloy Relevant to Mill-Out Reduction

Modern forms of Dissolvable Magnesium Alloy offer a special mix of mechanical strength and controlled breakdown that directly lowers the risk of intervention.

Compositional Optimization for Downhole Service

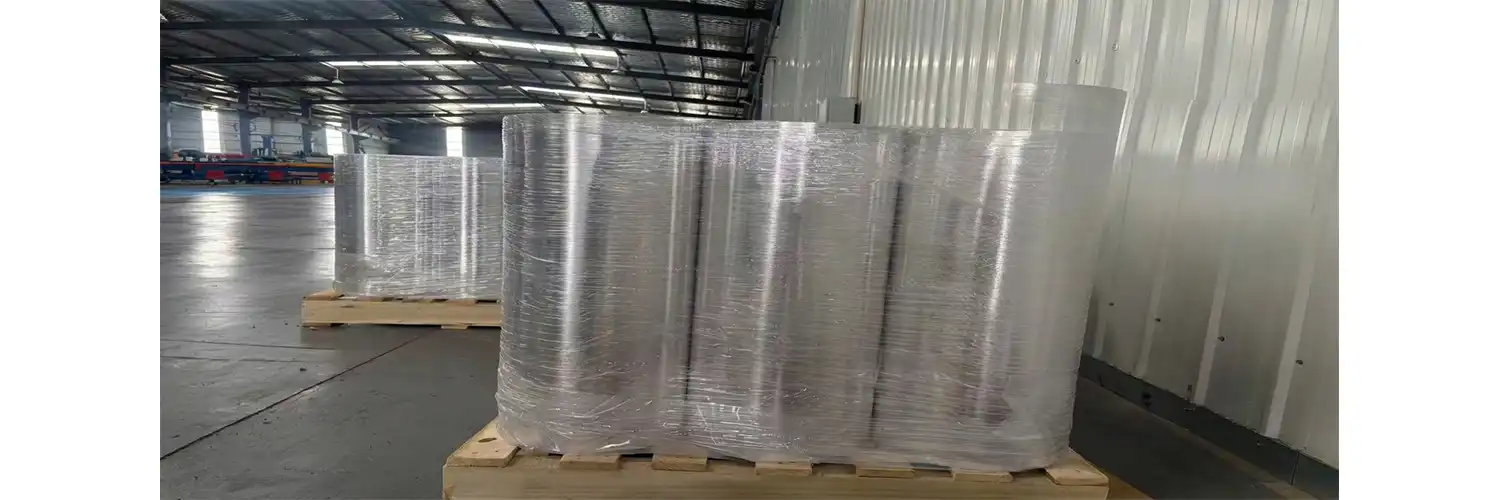

Our extruded bars and billets are made with micro-alloying that is carefully managed to get high strength-to-weight ratios while still being easy to machine. Low density (about 1.8 g/cm³) lowers hydraulic pressure while it is being used. The makeup can be changed so that dissolution rates can be tailored from 10 mg/cm²/h to 200 mg/cm²/h, based on the needs of the application. These rates are fast enough to avoid production delays while being controlled enough to keep the structure intact during important operations.

The mechanical qualities are improved even more by heat treatment methods (T4/T6 conditions). Grain refinement using controlled extrusion methods on 3,600-ton and 5,600-ton presses makes sure that each batch is the same, even for big formats up to 300 mm in diameter. Because of this dimensional possibility, large structural parts like mandrels and slip systems can be made.

Comparative Advantages Over Legacy Materials

There are clear problems with traditional finishing products. Milling cast iron holes takes a long time and makes a lot of waste. Composite materials might not mill out all the way, which would stop the flow. Zinc alloys break down in unpredictable ways and can fail early when loaded. Dissolvable Magnesium Alloy methods get rid of these problems by:

• Complete degradation Full-bore entry is possible without any residue after complete degradation.
• Predictable service life Service life that can be predicted and matched to operating deadlines.
• Environmental compatibility Environmental harmony with little damage to the environment.
• Reduced logistics burden Less work for transportation (no need to move retrieval tools).

These perks have a direct effect on the economy. When completion service providers switch from mill-out to dissolvable tool methods, post-frac intervention costs drop by 30 to 50 percent. Starting production days or weeks earlier speeds up cash flow and increases project profits.

Practical Applications Across Oil & Gas Operations

Controlled dissolution technology has been shown to work well in a number of different finishing situations where minimizing the risk of involvement and maximizing operating efficiency are the most important factors.

Unconventional Horizontal Well Completions

Shale plays with multiple stages of fracture are the main area where dissolvable bridge plugs manufactured from designed Dissolvable Magnesium Alloys are used. By not having to do individual plug mill-outs, operators who use 20 to 40 fracture stages per lateral save a lot of time. Extreme conditions, such as difference pressures of 15,000 psi and temperatures above 150°C, don't affect the materials at all before they dissolve in formation brine or flowback fluids.

Offshore and Deepwater Applications

In offshore settings, the cost of involvement goes up because of the complexity of the logistics. It can cost more than $500,000 per operation to move workover boats or jack-up rigs for mechanical plug removal. These costs are taken care of by dissolvable frac balls, seat assemblies, and temporary separation components. This also cuts down on the time people have to spend abroad and the safety risks that come with it.

The technology works just as well in underwater tieback completions, where access for action is very limited. Temporary barriers that disappear on their own time allow stimulation of more than one zone without the need for through-tubing milling or special recovery tools.

Emerging Applications in Geothermal and CCUS

Carbon capture, usage, and storage (CCUS) injection processes and high-temperature geothermal wells each have their own set of material problems. Dissolvable Magnesium Alloy formulations made for high-temperature service help with temporary separation needs in these tough situations. The materials keep their shape during important processes, but they break down in the high-salinity, high-temperature waters that are common in these places.

Procurement workers should make sure that the supplier can adjust the dissolution rate for fluids with non-standard chemicals and temperatures. In addition to helping you choose the right material for the job, HAGRIEN also does tests in the lab to make sure it works well in real-world circumstances.

Procurement Strategies for Dissolvable Magnesium Alloy Components

To strategically source Dissolvable Magnesium Alloy materials, you need to look at more than just price. You need to carefully consider technical skills, quality systems, and the stability of the supply chain.

Supplier Qualification Criteria

Leading producers show a number of important traits that set them apart. Process control and tracking are made possible by integrated production skills that include melting the metal, extruding it, and precision machining. Certifications like ISO 9001, ISO 14001, and ISO 45001 set the standards for quality management systems. API recognition and HSE compliance documents make sure that operating standards are in line with what the oil and gas industry expects.

When dissolvable parts are being tested for use in wells, being able to track the materials used becomes very important. Certificates of Analysis (COA), Certificates of Conformance (COC), and Safety Data Sheets (SDS) for each batch make it possible to keep track of everything from the chemistry of the raw materials to the delivery of the finished parts. This paperwork helps with internal qualification reviews, following the rules, and finding the root cause of problems in the field if they happen.

Customization and Engineering Support

Standardized bar and billet products are the basis for making tools, but material engineers often need to work together to meet the needs of unique applications. It is more valuable to buy from vendors who offer metal makeup tuning, heat treatment optimization, and dissolution rate measurements than from vendors who only sell commodities. Look for companies that have their own research and development departments that can match the properties of their materials to your working window, which includes the temperature range, fluid chemistry, pressure profile, and goal dissolution timeline.

HAGRIEN helps customers with the whole process of specifying. We can make prototypes quickly by sampling (in two to four weeks for standard sizes), produce in large quantities (4 to eight weeks for custom specifications), and engineer to your exact specifications, including any needed tolerances for size and surface finish. OEM/ODM methods for working together allow for private labeling and regional partnership frameworks.

Delivery Reliability and Logistics

Predictability in the supply chain has a direct effect on the risk of executing a project. When manufacturers keep extras of popular configurations on hand, they can meet emergency needs and sample requests without having to slow production. Material-driven project schedule slippage can be avoided by making clear lead time promises and including supply schedules in contracts.

When buying from producers abroad, it's important to have international logistics skills. Different buyers can choose from different trade terms, such as EXW, FOB, and CIF. Clearing customs is easier when you have all the necessary paperwork and the right packing for long-distance shipping. HAGRIEN has a branch in the United States that helps with organization in North America. This makes communication and managing operations easier.

Conclusion

Controlled dissolution technology changes the economics of well finishing in a big way by getting rid of the need for artificial involvement. Engineered Dissolvable Magnesium Alloy systems provide the structural performance needed during fracturing operations. They then break down in a way that can be predicted to recover full output capacity without the need for mill-out operations. This feature lowers running costs, speeds up the start of production, and lowers the health and safety risks that come with management activities. Getting these materials from approved companies with strong quality systems, proven technical skills, and dependable supply lines is the best way to get the most out of this technology for new, unconventional, and offshore energy uses.

FAQ

1. How long do dissolvable magnesium alloy downhole tools maintain structural integrity?

Service life relies on the type of metal used, the shape of the part, and the conditions downhole. Most designs keep their full mechanical qualities for 24 to 72 hours when they are loaded before they start to dissolve. Depending on temperature, salt, and fluid chemistry, the material breaks down completely in 5 to 30 days. Engineers at HAGRIEN make sure that dissolution windows are set up to meet the needs of each operation. This makes sure that tools work properly during fracturing operations before controlled breakdown starts.

2. Can dissolution rates be customized for different well conditions?

Of course. The rate of degradation can be changed over a wide range of performance levels by changing the alloy's micro-composition, heat treatment methods, and surface preparation techniques. When temperatures and salt are high, things dissolve faster. When temperatures and fluid chemistry are low, things last longer. Before being used in the field, performance is confirmed in the lab using virtual wellbore fluids. This gives buying teams written proof to back up their decisions about which materials to choose.

3. What environmental advantages do these materials offer?

In created water and formation fluids, Dissolvable Magnesium Alloys break down into compounds that are safe for the environment. These compounds are mostly magnesium hydroxide and magnesium chloride. Composite materials with epoxies or phenolic resins leave behind waste that needs to be thrown away, but dissolvable magnesium components don't. This trait lowers the cost of managing waste and makes following the rules easier, especially in marine or protected land areas that are good for the environment and require minimal waste.

Partner with HAGRIEN for Reliable Dissolvable Magnesium Alloy Supply

HAGRIEN delivers vertically integrated manufacturing expertise spanning alloy development, large-diameter extrusion (up to Ø300 mm), and precision machining—ensuring consistent quality and performance across Dissolvable Magnesium Alloy bars, billets, and component production. Our CNAS-accredited HTHP laboratory provides traceable validation testing, while ISO 9001/14001/45001 certifications and API recognition confirm quality management systems aligned with industry standards. As an established Dissolvable Magnesium Alloy supplier with approximately seven years of continuous production experience, we support customers from prototype development through volume manufacturing with engineering-to-specification capabilities, comprehensive documentation packages (COA/COC/SDS), and predictable delivery schedules (2-4 weeks for stock sizes, 4-8 weeks for custom specifications). Contact our team at cyrus@us-hagrien.com to discuss how our engineered materials reduce intervention risk and accelerate your completion operations.

References

1. American Petroleum Institute. (2021). Recommended Practices for Multistage Fracturing Operations. API Publishing Services, Washington, DC.

2. Bland, L. G., Gusieva, K., & Scully, J. R. (2017). Effect of crystallographic orientation on the corrosion of magnesium: Comparison of film forming and bare surface active dissolution. Electrochimica Acta, 227, 136-151.

3. Chen, J., Yan, J., & Zhang, T. (2019). Degradable magnesium-based alloys for temporary implants: Design strategies and performance optimization. Materials Science and Engineering C, 97, 1-15.

4. McDanels, K., Willingham, J., & Chudnovsky, A. (2020). Dissolvable frac plug technology reduces intervention costs in Permian Basin horizontal completions. SPE Production & Operations, 35(3), 512-524.

5. Song, G. L., & Atrens, A. (2018). Understanding magnesium corrosion: Framework for improved alloy performance. Advanced Engineering Materials, 5(12), 837-858.

6. Zeng, R., Dietzel, W., Witte, F., Hort, N., & Blawert, C. (2008). Progress and challenge for magnesium alloys as biomaterials. Advanced Engineering Materials, 10(8), B3-B14.
