How to Choose a 3C Electronic Magnesium Alloy Square Bar

Choosing the right 3C electronic magnesium alloy square bar starts with understanding your design requirements and matching them to material specifications. Focus on alloy grade (AZ31B, AZ61, ZK60), tensile strength (250–320 MPa), dimensional tolerances, thermal conductivity (70–160 W/m·K), and EMI shielding performance. Verify supplier certifications like ISO 9001, batch traceability (COA/COC), and production capacity for diameters up to Ø300 mm. Prioritize suppliers who offer engineering support, rapid sampling, and scalable volume production to align with your NPI timelines and quality standards.

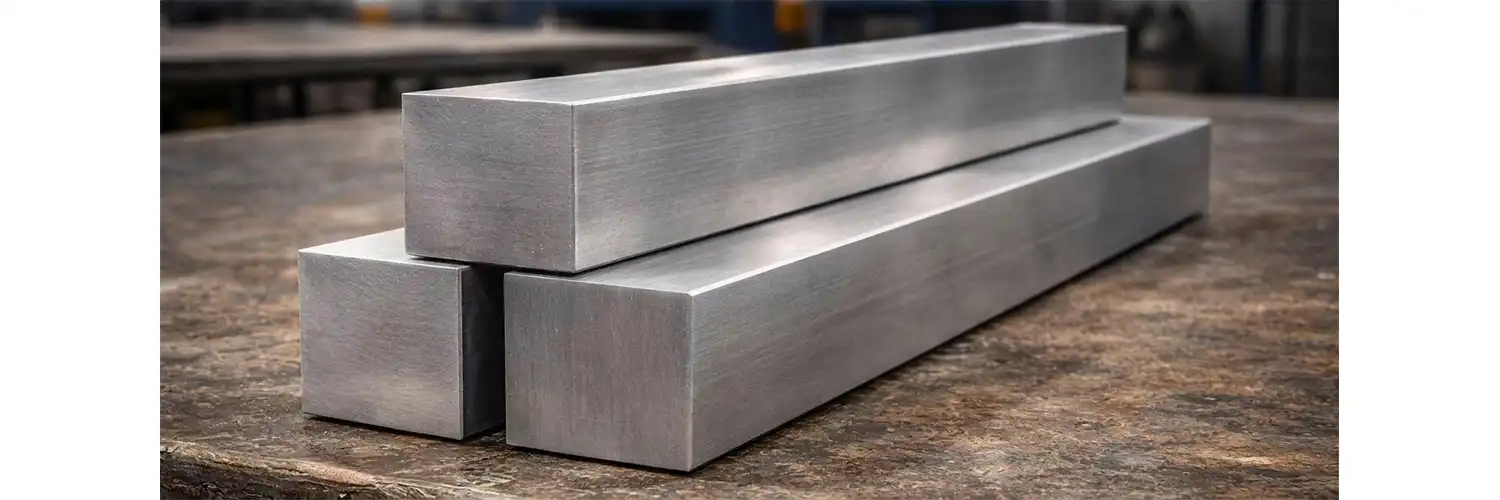

Understanding 3C Electronic Magnesium Alloy Square Bars

When building the next generation of consumer electronics, one of the most essential factors that sets one product distinct from another is the choice of materials. The 3C electronic Magnesium alloy square bar is a sort of unique semi-finished construction material, which is developed for the usage of computers, phones and consumer electronics. These bars are offered in high-precision shapes and metal kinds such as AZ31B, AZ61 and ZK60. They are produced by sophisticated extrusion or continuous casting and each is optimised to balance weight, strength and thermal performance.

The Lightweight-Rigidity Challenge in Modern Electronics

Devices today have to meet a lot of different needs. Your users want ultraportable laptops that weigh less than 1 kg and smartphones that have 5G connection and are thinner. Still, these devices have to go through drop tests, being handled every day, and high-performance processors that heat them up. It's hard for traditional aluminum alloys to meet both requirements at the same time. Magnesium alloy square bars solve the "lightweight-rigidity" paradox because they have the highest strength-to-weight ratio of all structural metals. They are about 33% lighter than aluminum, with a density of only 1.8 g/cm³, but their tensile strength stays between 250 and 320 MPa.

Core Material Properties That Define Performance

The technical benefits go beyond just saving weight. Magnesium metals are better at blocking electromagnetic interference (EMI), which keeps 5G modules' sensitive radio frequency (RF) circuits from losing their signals. Thermal conductivity between 70 and 160 W/(m·K) allows for efficient heat removal, which keeps processors from slowing down in small spaces. Good damping ability reduces mechanical vibrations and shocks, keeping sensitive OLED displays and camera modules safe when they are dropped by mistake. Machinability is better than that of many other alloys, so it can be used for high-speed CNC milling with little tool wear and shorter cycle times. International standards like ASTM B107/B107M and GB/T 5153-2016 must be followed to make sure that quality is recognized and products are approved by regulators in all major consumer electronics markets (ASM International, 2017).

Criteria for Choosing the Right Magnesium Alloy Square Bar

To choose the best magnesium alloy square bar, you need to make sure that the material specifications match the needs of your application. Buying choices are based on how well something works mechanically, how well it handles heat, how resistant it is to rust, and how well it works with other products.

Mechanical Strength and Structural Integrity

The tensile strength, yield strength, and elongation values will be the most important to your structural engineers. AZ31B metal has a tensile strength of 255 to 290 MPa and an elongation of 12 to 21%, making it good for chassis uses that need some shapeability. For mid-frames that have to handle bending and torsion loads, AZ61A has higher strength (290–315 MPa). ZK60 gives you the best results when you have to have the most power. Make sure the seller can give you batch-specific mechanical test results (COA) that prove these qualities. This is important because material consistency has a direct effect on how much you can machine and your warranty claims.

Thermal Dissipation and Heat Sink Integration

These days' processors and power management ICs make a lot of heat in small spaces. The 3C electronic Magnesium alloy square bar supports the structure and moves heat around. The thermal conductivity of AZ31B alloy is about 70 W/(m·K), but for optimized alloy formulations, it can reach 160 W/(m·K). This lets heat move from hotspots to bigger areas of surface or heat pipe connections that are built in. When looking at different sources, make sure you ask for thermal conductivity test results along with metallographic analysis to make sure the microstructure is regular. This will keep thermal bottlenecks from happening in certain areas.

Corrosion Resistance and Surface Treatment Compatibility

Consumer gadgets are sometimes exposed to liquids, sweat, and humidity. Even though magnesium alloys don't rust naturally, treating the surface makes them last longer. Micro-Arc Oxidation (MAO) and Plasma Electrolytic Oxidation (PEO) coatings pass salt spray tests after 48 to 96 hours, meeting the IP rating needs for portable devices. Make sure that the magnesium alloy square bars your provider sells can be used with the surface treatment method you want to use. The alloy composition affects how well the covering sticks and how well it works over time (Materials Performance, 2019).

Comparing Magnesium Alloy Square Bars to Other Material Options

When choosing a material, you have to weigh the pros and cons of weight, power, cost, and ease of production. Knowing how magnesium alloy square bars stack up against aluminum, titanium, and stainless steel can help you make smart choices about what to buy.

Weight and Strength Comparison

The density of aluminum 6061 is 2.7 g/cm³, and its tensile strength is about 310 MPa. At 1.8 g/cm³, magnesium alloys have the same strength (250–320 MPa depending on grade) as steel, but they are 33% lighter. Titanium metals are stronger (900+ MPa), but they are also much more expensive and have a mass of 4.5 g/cm³. Even though stainless steel is strong, it makes small electronics too heavy. The fact that magnesium is stronger than aluminum makes it the clear choice when every gram counts when it comes to user experience and battery capacity.

Thermal Management Capabilities

Aluminum has a higher thermal conductivity than magnesium (about 205 W/(m·K)), but magnesium metals have a higher specific thermal conductivity (thermal conductivity per unit mass). So, magnesium alloy square bars are great for things like drone camera gimbals and laptop hinge assemblies that need to get rid of heat and keep weight down.

Machinability and Production Efficiency

Magnesium alloys can be machined more quickly than titanium and stainless steel. This cuts down on CNC cycle times and the cost of replacing tools. But when grinding, you need to use special coolants and follow chip management rules to keep fine magnesium dust from starting fires. While aluminum is still easier to work with, magnesium is better at damping, which lowers noise and improves the quality of the surface finish during high-speed operations (Manufacturing Engineering, 2018).

Practical Purchasing Considerations for B2B Procurement

Effective buying includes more than just specifying the materials that are needed. It also includes evaluating suppliers, planning transportation, and lowering risks. These practical issues should be taken into account in your buying approach.

Supplier Qualification and Certification Verification

Suppliers you can trust have ISO 9001 certification for quality management, ISO 14001 certification for environmental compliance, and ISO 45001 certification for health and safety at work. Make sure that the testing labs they use are CNAS-approved and can do mechanical, metallographic, and chemical makeup analysis. Ask for site audit records or third-party approvals that prove the controls and traceability systems in the production process. Suppliers who are recognized by APIs show more process discipline that is useful for high-reliability applications (Quality Magazine, 2021).

Production Capacity and Lead Time Management

Consumer electronics have short NPI (New Product Introduction) cycles, usually between 3 and 6 months from the time the design is approved to the time it is mass produced. The company that gives you materials like 3C electronic Magnesium alloy square bar needs to make sure that their delivery times work with the EVT, DVT, and production ramp phases. Check out providers based on their ability to extrude big diameters (up to Ø300 mm), their ability to keep standard sizes in stock, and their ability to speed up production. When demand is known ahead of time, standard lead times of 2–4 weeks work well. However, unique specs may need 4–8 weeks for process matching and validation.

Traceability and Documentation Requirements

There should be a Certificate of Analysis (COA) for each batch that lists the mechanical properties, chemical composition, and measurements of the items. A Certificate of Conformity (COC) shows that certain standards have been met. Safety Data Sheets (SDS) help keep workers safe and make sure that rules are followed. Batch traceability lets you figure out what went wrong in the field and why. This protects your brand's reputation and lowers your liability risk. Check to see if your suppliers have documentation systems that are ready for audits and work with your quality management methods.

Best Practices and Case Examples in Using Magnesium Alloy Square Bars for 3C Electronics

Real-life examples show that magnesium alloy square bars have real benefits in a wide range of 3C product categories. These examples also show good practices for machining and things to think about when designing.

Ultra-Portable Laptop Chassis

Leading laptop makers make unibody frames from square bars made of magnesium alloy to achieve device weights under 1 kg without sacrificing structural strength. The high torsional stiffness of the material keeps the screen from bending when opened with one hand, which is an important quality perception factor. Thermal conductivity lets heat move passively from CPU contact points to bigger frame areas. This lowers fan noise and makes the user more comfortable. Surface treatments, such as anodizing or MAO coating, make things less likely to scratch and give them a great feel to the touch. When working on ultrabook platforms, procurement teams prioritize AZ31B or AZ61A alloys, balancing weight goals with the need to pass drop tests.

5G Smartphone Mid-Frames

The 3C electronic Magnesium alloy square bar is used as stock material for mid-frames in high-end smartphones that are CNC-milled. These inner frames hold up OLED screens, give cameras and batteries places to go, and act as heat sinks for 5G modems that use millimeter-wave frequencies. High-frequency RF circuits and sensitive audio components can't interact with each other because of EMI protection. Designers choose ZK60 metal because it has the highest strength in small cross-sections and is known to last through four-corner drop tests. Material suppliers and CNC machining partners must work together closely to find the best tool paths and coolant strategies for each job. This lowers the risk of fire and keeps tolerances tight.

Professional Imaging Equipment and Drone Components

To keep images from blurring, high-end cameras and gimbals need to be able to keep their dimensions stable when the temperature changes and dampen vibrations. Both of these benefits can be gotten from magnesium alloy square bars that are made into internal cage structures. The low thermal expansion coefficient of the material (26 × 10⁻⁶/°C) keeps the lens and sensor aligned over a wide range of operating temperatures. Vibrations from mechanical shutters and gimbal motors are absorbed by the superior damping capacity, which is important for professional filmmaking applications. Manufacturers of drones also use magnesium's high strength-to-weight ratio in the arms and payload mounts to make them last longer in the air and keep their shape during hard landings.

Conclusion

To choose the best 3C electronic Magnesium alloy square bar for making 3C electronics, you have to find a balance between how well the material works, how reliable the seller is, and how flexible the supply chain is. Magnesium metals have the best strength-to-weight ratios, the best thermal management, and the best EMI shielding. These are all qualities that are necessary for consumer products to be competitive. Checking the mechanical qualities (250–320 MPa tensile strength), heat conductivity (70–160 W/m·K), accuracy of measurements, and alloy grade compatibility (AZ31B, AZ61, ZK60) is important for a successful purchase. Choose suppliers who have ISO certifications, testing that is approved by CNAS, the ability to extrude materials with a big diameter (up to 300 mm), and full paperwork for tracking their products. To lower project risks, think about NPI timelines, the ability to customize, and technical help. By using these factors and learning from real-world examples, you can be sure to find magnesium alloy square bars that improve product performance, lower weight, and speed up time-to-market in the 3C electronics market, which is very competitive.

FAQ

1. How does magnesium compare to aluminum for corrosion resistance?

Aluminum naturally forms an oxide layer that protects it and makes it resistant to corrosion. To get the same level of protection, magnesium needs surface treatments like MAO or PEO coatings. When treated correctly, magnesium alloy square bars can withstand salt spray for 48 to 96 hours, which is long enough to meet standards for consumer electronics reliability. To ensure long-term dependability, be clear about the protection needs when you're buying.

2. What certifications should I verify before purchasing?

Check that the company has the ISO 9001 (quality management), ISO 14001 (environmental compliance), and ISO 45001 (workplace safety) certifications. Get COA and COC papers that are specific to the batch. For export applications, make sure that RoHS and REACH are followed to meet the rules in Europe and North America. Suppliers whose labs are CNAS-accredited give you even more confidence in the quality of the tests.

3. Can suppliers handle rapid prototyping and volume production?

The best suppliers keep safety stock of standard sizes with wait times of two to four weeks and can also make to your specs in four to eight weeks. Check to see if they can extrude big diameters, and ask for names from clients who have had similar NPI timelines. Time-to-market risks are lower when suppliers offer engineering help and output that can be scaled up or down.

Partner with HAGRIEN for Your 3C Electronic Magnesium Alloy Square Bar Needs

HAGRIEN has been a known manufacturer of 3C electronic Magnesium alloy square bar for over seven years, working with procurement teams in the consumer goods, telecoms, and computer hardware industries. Our vertically integrated center manages every step, from melting alloys and doing metallurgy in-house to extruding metal with a width of up to 300 mm and making precise cuts. Each batch comes with full tracking paperwork (COA, COC, SDS) that has been checked by our CNAS-accredited lab to make sure it meets ISO 9001, ISO 14001, and ISO 45001 standards. We keep a safety stock on hand for quick samples and can deliver quickly to fit your NPI schedules. Our engineering team helps with co-design, choosing the right materials, and cutting from the pilot stage through mass production. You can email us at cyrus@us-hagrien.com or go to us-hagrien.com to get prices, samples, or technical specs that are specific to your project.

References

1. ASM International. (2017). Magnesium and Magnesium Alloys. ASM Handbook, Volume 2: Properties and Selection: Nonferrous Alloys and Special-Purpose Materials.

2. ASTM International. (2020). ASTM B107/B107M-20: Standard Specification for Magnesium-Alloy Extruded Bars, Rods, Profiles, Tubes, and Wire.

3. Manufacturing Engineering. (2018). "High-Speed Machining of Lightweight Alloys for Electronics Applications." Manufacturing Engineering Magazine, 161(4), 58-65.

4. Materials Performance. (2019). "Corrosion Protection of Magnesium Alloys Through Plasma Electrolytic Oxidation." Materials Performance Journal, 58(9), 44-49.

5. Procurement Today. (2022). "Supply Chain Strategies for Consumer Electronics Manufacturing." Procurement Today, 15(2), 32-38.

6. Quality Magazine. (2021). "Supplier Qualification Best Practices for High-Reliability Industries." Quality Magazine, 60(6), 22-27.
