How to Select the Right Multistage Fracturing Sliding Sleeve

Selecting the right multistage fracturing sliding sleeve starts with understanding what your well demands. In high-stage-count horizontal completions—where lateral lengths reach 2,000 to 5,000 meters and stage counts climb past 80—the wrong tool choice translates directly into lost time, failed zonal isolation, and costly intervention. A multistage fracturing sliding sleeve is a downhole completion component installed with the casing string to selectively open individual fracturing stages. The right system eliminates wireline runs, preserves full-bore access after activation, and keeps your frac schedule predictable from stage one to stage one hundred.

Understanding Multistage Fracturing Sliding Sleeves

What the Tool Actually Does？

A moving tube goes inside the casing string and stays shut while the well is being built. When the stage is ready to break, the sleeve opens, either mechanically with a key or a ball or hydraulically, letting high-pressure fluid reach the area that needs to be broken. Once the pumping is done, the sleeve either stays open or loses its sealing element, making the wellbore ready for production.

Mechanical vs. Hydraulic Activation

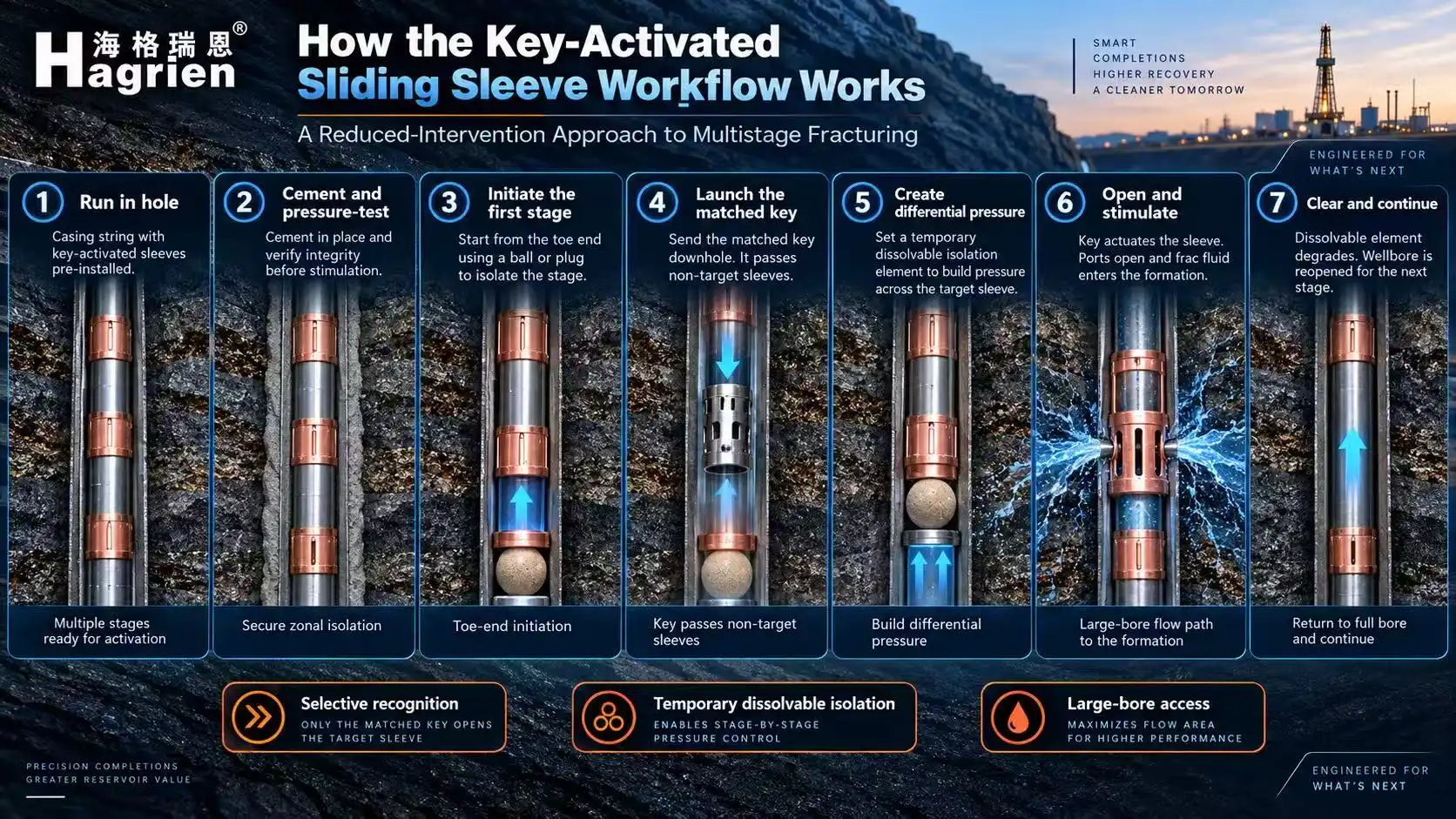

Mechanical sliding sleeves open when a key shape that matches the sleeve body is pressed. In ball-drop systems, seats of varying sizes open sleeves one at a time. When circular pressure is applied, hydraulic arms move. Key-activated systems, like the HAGRIEN system, can go to an infinite number of stages because they are not limited by ball-seat diameter increments. Once they are activated, every sleeve has the same full-bore internal diameter.

How Sliding Sleeves Compare to Plug-and-Perf

For each step of a plug-and-perf finish, you need a cable run and a perforating gun. That's 60 trips in and out of the wellbore in a 60-stage well. A multistage fracturing slide sleeve method gets rid of all of those trips. SPE data shows that interventionless sleeve systems cut the time it takes to go from one stage to the next by 30–50% compared to plug-and-perf systems for the same lengths of laterals.

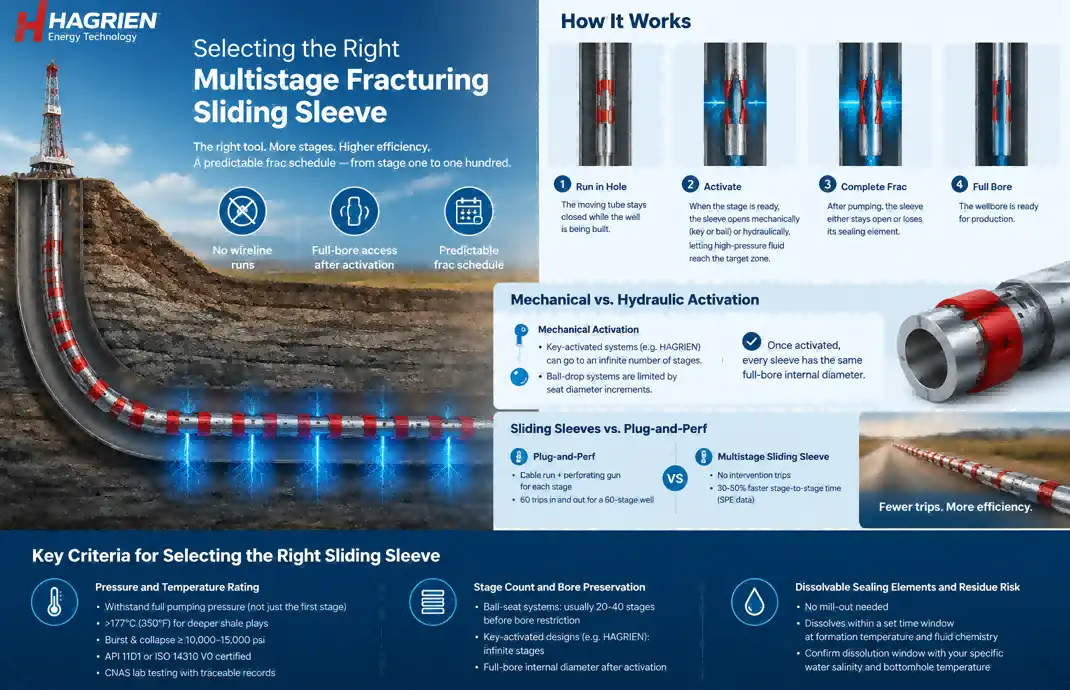

Key Criteria for Selecting the Right Sliding Sleeve

Pressure and Temperature Rating

The rated pressure must stay in your sleeve during all stages of pumping, not just the first one. For deeper shale plays, look for tools that can handle temperatures above 177°C (350°F) and a burst and collapse pressure of at least 10,000 to 15,000 psi. The devices that seal things should be approved by either API 11D1 or ISO 14310 V0. When tools are made in a lab that is approved by the CNAS, they come with test records that can be tracked and checked before they are used.

Stage Count and Bore Preservation

This is where a lot of everyday systems fail. With ball-seat systems, the number of stages is limited by the smallest seat-diameter steps that can be used. Usually, 20 to 40 stages can be used before bore restriction becomes a problem for production. This ceiling can be taken down with key-activated sliding sleeve designs. The HAGRIEN multistage fracturing sliding sleeve system provides full-bore internal diameter after activation, no matter how many stages are used. This directly protects future access for re-entry and re-fracturing.

Dissolvable Sealing Elements and Residue Risk

Seal residue left in the wellbore after fracturing limits flow and makes it harder to do anything else in the future. Mill-out processes are no longer needed because of dissolved closing elements that are designed to dissolve within a certain time window at the formation temperature and fluid chemistry. When choosing a provider, make sure that the dissolving window has been tested in your specific water salinity and bottomhole temperature, not just in a lab.

Comparing Market Solutions and Brands

Established Service Company Offerings

In North American shale, the RapidFrac and BeatIt sleeve systems from Halliburton and SLB are both commonly used. Baker Hughes has the FracPoint system, which can be activated hydraulically in HPHT underwater situations. Weatherford's multistage sleeves can be used in both ball-drop and mechanical moving setups. Each big provider brings a lot of field data, but tools are usually part of bigger service contracts. This can make it harder for operators running their own completion programs to buy what they need.

Evaluating Supplier Credibility

In addition to a well-known name, reliable providers offer full material traceability, batch-level paperwork (COA/COC), and validation by an independent laboratory. Ask for MTR paperwork that proves the metal is API 5CT-compliant, hardness tests on the seat inserts, and proof that the metal is resistant to erosion in proppant-filled flow. You take a supply risk with a seller who can't show you paperwork that can be used to track each batch. This risk lasts for the whole well program.

Where HAGRIEN Fits

Hagriden is a multistage fracturing sliding sleeve supplier that focuses on manufacturing. They do their own precision machining, magnesium alloy extrusion, and quality control under ISO 9001, ISO 14001, and ISO 45001. The HAGRIEN key-activated sleeve system can be used for an endless number of stages of completions. It has dissolvable magnesium alloy sealing elements that are custom made for your operation window and comes with full batch tracking. Before starting a main-well program, operators may need to see proof of performance data. HAGRIEN's CNAS-accredited laboratory can provide this. The test documentation can be used for both internal review and third-party audits.

Installation and Operation Best Practices

Pre-Installation Verification

Before running the casing string, make sure that the drift diameter of each sleeve fits the design of your finish and that all of the sealing parts are still in good shape. Check the positions of the sleeves against the completion program to make sure that the stage spacing and key-profile assignments are correct. A simple dimensional check before the run using a calibrated drift bar finds differences in the way the parts were made before they become a problem downhole.

The main steps that field teams always say lower the risk of something going wrong are listed below:

• Torque and make-up records: Document every connection make-up torque during assembly. Improper torque on sleeve connections is a leading cause of pressure-integrity failure during high-rate pumping.
• Stage-pressure monitoring: Track treating pressure at each stage against the design window. Pressure anomalies during initial pumping often signal a sleeve that has not fully shifted—catching this early allows a coiled tubing contingency shift before the next stage is pumped.
• Post-frac wellbore survey: After completing all stages, run a caliper or camera survey to confirm full-bore access before production testing begins.

Together, these steps lower the chance that production will be delayed because of sleeve failures or conditions that limit the bore that haven't been found yet.

Troubleshooting Common Field Issues

Most new designs have a backup shift feature that can be accessed through coiled tubing or a wireline shifting tool in case a sleeve doesn't open when activated. Keep track of any problems and let your provider know about them. Reliable makers use feedback from the field to improve the geometry and actuation force specs of each production batch.

Final Recommendations and Strategic Considerations for Procurement

Prioritize Verifiable Performance Over Price

Short-term savings on tool costs rarely make up for the cost of a failed stage, milling run, or re-frac campaign that was caused by not enough zone isolation. Verified test documentation and field application records should be given the same amount of weight as unit price when judging a multistage fracturing sliding sleeve manufacturer.

Custom Configurations for Specific Well Environments

Material and shape changes need to be made for extended-reach laterals, deepwater uses, and high-H₂S conditions. If a supplier has their own alloy control and engineering-to-spec tools, they can match the performance of the sleeves to your exact operating window instead of making you change your program to fit a catalog product.

Build Supplier Qualification Into Your Timeline

As a general rule, it takes four to ten months for completion engineers to go from technical evaluation to batch adoption in the procurement process. Start early with qualifying suppliers. Before you choose a vendor, make sure you get data from bench tests, get references from operators in similar shale plays, and check that wait times work with your rig plan.

Conclusion

Selecting the appropriate multistage fracturing sliding sleeve is a crucial choice directly impacting completion efficiency, well performance and long-term production value. Operators should examine crucial criteria such as the number of stages, pressure and temperature requirements, bore preservation, sealing dependability, and supplier capabilities before making a decision. A good sliding sleeve solution must not only function well during fracturing, but also support future well access and intervention demands. HAGRIEN enables operators to provide safer and more predictable multistage completions via modern manufacturing, rigorous quality control and bespoke designs, while enhancing overall project efficiency.

FAQ

1. How many stages can a key-activated sliding sleeve system support?

Key-activated systems don't have limits on the number of stages that can be in a single wellbore because they don't care about incremental seat diameters. Because the HAGRIEN sliding sleeve device is made to work with an endless number of stages, it can be used in wells with more than 80 or 100 stages.

2. What happens if a sleeve fails to open during fracturing?

Most current sleeve designs come with an emergency shift choice. If the main way of activating the sleeve doesn't work, a coiled tubing or wireline shifting tool can do it mechanically. Record the event and tell the maker about it so that the design can be looked over.

3. Do dissolvable sealing elements leave residue in the wellbore?

When properly engineered dissolvable elements are matched to your specific bottomhole temperature and fluid chemistry, they dissolve completely within the defined operating window. This means that there is no need to mill out and full-bore access is kept for production and future intervention.

4. What certifications should I require from a sliding sleeve supplier?

Ask for at least ISO 9001 quality management certification, API product recognition, material tracking documents (COA/COC), and records of independent lab validation. Test reports that are CNAS-accredited add an extra level of credibility that is ready for an audit.

5. How do I verify seal integrity before running the casing string?

Ask for test records for each batch that show that it is hydraulic and gas-tight. Make sure that the testing was done at the highest allowed pressure and that heat cycling was used if your well conditions require it.

Get Matched With the Right Multistage Fracturing Sliding Sleeve — Contact HAGRIEN

HAGRIEN makes key-activated multistage fracturing sliding sleeves that can go through an infinite number of stages and come with quality documentation that is recognized by the CNAS. To find a new multistage fracturing sliding sleeve source for a shale development program or to find a co-development partner with magnesium alloy extrusion in-house, our engineering team gets back to you within 24 hours. You can get technical specifications and batch traceability documentation by going to us-hagrien.com or emailing cyrus@us-hagrien.com.
