Magnesium alloys square bar in Aerospace and Automotive Design

Magnesium alloys square bar represents a pivotal material innovation for aerospace and automotive engineering, delivering unmatched lightweighting solutions without sacrificing structural integrity. These precision-extruded profiles—typically alloyed with aluminum, zinc, and manganese—offer densities 35% lighter than aluminum and 78% lighter than steel, directly translating to fuel savings, extended range, and enhanced payload capacity. For procurement teams managing complex supply chains in high-performance sectors, these bars solve critical challenges: reducing rotational inertia in high-speed assemblies, improving energy efficiency in electric vehicle platforms, and meeting stringent weight targets in satellite and aircraft structures. The combination of superior machinability, natural vibration damping, and high specific strength makes these alloys indispensable for next-generation design.

Understanding Magnesium Alloy Square Bars in Aerospace and Automotive Applications

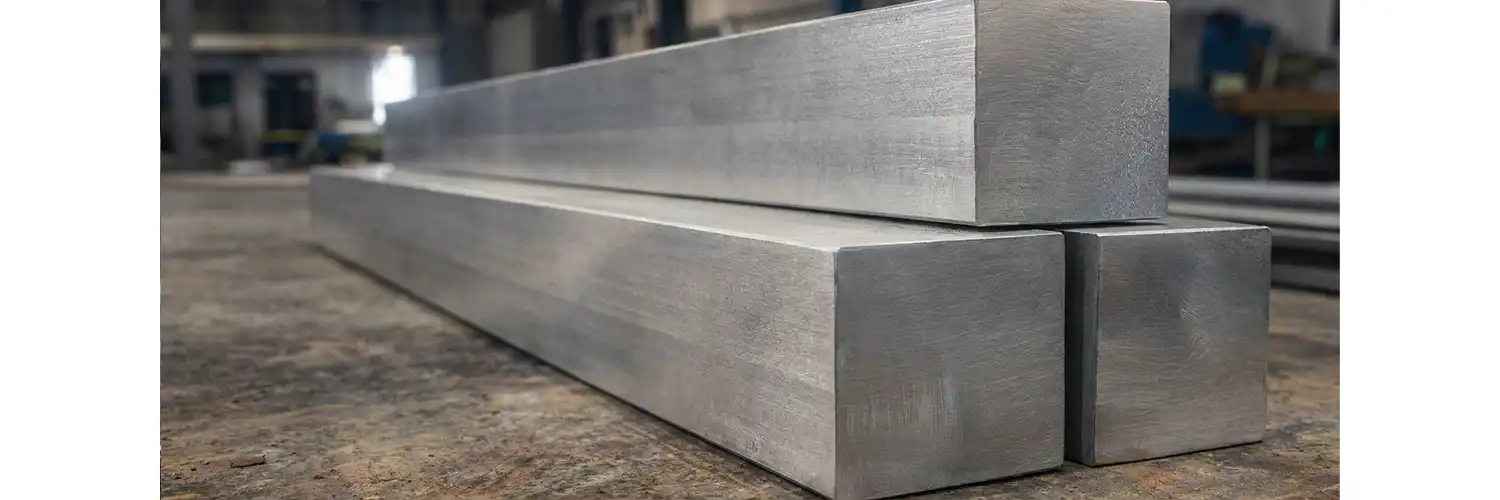

Magnesium alloy square bars are semi-finished structural elements manufactured by exact extrusion, rolling or continuous casting. They feature great square cross sections, suitable for demanding work. The most popular alloy systems are AZ31B, AZ61A and AZ91D. Aluminium, zinc and manganese are added in precisely regulated quantities to provide the highest mechanical performance and protection to the environment.

Chemical Composition and Alloy Types

The AZ31B is remarkable because of its balanced makeup. It has a tensile strength of 255-290 MPa and elongation rates of 12 to 21 %. This makes it well suited for pieces that require to be able to be moulded. AZ61A is exceptionally strong (290-315 MPa tensile) and not particularly flexible, hence it may be utilised for aircraft brackets and suspension parts that carry loads. It has more aluminium in it than AZ91D therefore is harder (63-90 HB) and less flexible (3-5%) which makes it an excellent option for automobile frame elements that need high stiffness. Rules for each metal are given in ASTM B107/B107M and AMS 4377 to ensure that the grain structure and chemical composition are always the same.

Physical and Mechanical Properties

These metals have densities ranging from 1.77 to 1.81 g/cm3, around one third the weight of aluminium 6061 (2.7 g/cm3) and one quarter the weight of steel . The thermal conductivity is between 50 and 70 W/(m·K), allowing engine bolts and electrical housings to dissipate heat easily. With an elastic modulus of 45 GPa and a shear modulus of 17 GPa , the material is strong enough to absorb pressure , and yet flexible enough to absorb pressure . One remarkable feature about it is that its dampening ability is sometimes 10 to 100 times greater than that of aluminium. This way, vibrations and noise are efficiently eliminated in automobile seats and aviation instruments displays.

Machining and Heat Treatment Techniques

CNC workers prefer the cleanliness of magnesium as it’s being ground. It can cut 30-50% quicker than aluminium and survive longer on tools. Certain forms of heat treatment, such as T4 (solution treated) and T6 (solution treated and purposefully aged) optimise the microstructure to raise the yield strength 15-25%. To defend against corrosion in tough conditions , epoxy primers may be used in conjunction with Micro-Arc Oxidation ( MAO ) or electroless nickel plating . This makes things last much longer . These working advantages reduce the cost of manufacturing things and speed up the time to develop something new, and so support high-volume production plans.

Comparing Magnesium Alloy Square Bars with Alternative Metals

Finding the best lightweight metal requires a thorough analysis of its performance features, cost effects, and the needs of the particular application. Magnesium alloys square bars are different from aluminum, titanium, and steel. Each has pros and cons when it comes to weight, strength, and cost.

Weight and Ratio of Strength to Weight

Magnesium has a much higher density than aluminum, titanium, and steel, with 1.77–1.81 g/cm³ compared to 2.7 g/cm³ for aluminum, 4.5 g/cm³ for titanium, and 7.85 g/cm³ for steel. When strength is taken into account, magnesium metals have specific strengths that are the same as or higher than aluminum in many grades. Titanium is stronger overall, but it costs a lot more and weighs a lot more. For practical reasons, magnesium is the better choice for UAV frames, racing car suspension arms, and satellite structural parts where every gram counts.

Cost Efficiency and Durability

Magnesium is priced between aluminum (which is the cheapest) and titanium (which is the most expensive). Total cost of ownership changes in a good way when you think about how efficient the machine is, how much less energy it uses during processing, and how much fuel it saves over the duration of the product. Surface treatment is needed to make magnesium resistant to corrosion, but with the right protection, magnesium parts have the same service life as aluminum in controlled environments. Steel is still the best material for heavy loads, but because it is heavier than other materials, it can't be used in situations where weight is important.

Practical Selection Guide

When weight reduction is important for project success, machine speed impacts meeting deadlines, and vibration damping improves user experience, procurement professionals should put Magnesium alloy square bars at the top of their list. Aluminum is still good for making parts in large quantities that don't need to be very strong but still need to be cost-effective. Titanium is used in aerospace applications that need to work in harsh environments, which is why it costs a lot. Steel is used for heavy-duty structural tasks where weight is not important. Choosing the right grade of magnesium—AZ31B for shapeability, AZ61A for balanced performance, and AZ91D for hardness—aligns the properties of the material with the stress levels and conditions it will be used in.

Procurement and Supply Chain Considerations for Magnesium Alloy Square Bars

To make sure that projects stay on track and quality standards are met, strategic sourcing of magnesium alloy square bars needs thorough supplier evaluation, clear pricing models, and proactive supply chain risk management.

Verifying Supplier Reliability and Certification

Getting ISO 9001, ISO 14001, or ISO 45001 certifications shows that a seller cares about quality, the environment, and worker safety. Labs that are API- and CNAS-accredited can independently check the qualities of materials and make sure that batches are consistent. To help with internal audits and following the rules, ask for a Certificate of Analysis (COA), a Certificate of Conformance (COC), and Safety Data Sheets (SDS) for every shipment. Batch traceability, which connects each bar to its original melt makeup and extrusion settings, lets you quickly find the cause of a quality problem if it happens later on.

Price Factors and Cost Components

Pricing structures usually take into account the cost of raw materials, the difficulty of extrusion, the size tolerances, and the number of orders. Price ranges per kilogram depend on the alloy type (AZ91D is more expensive because it is harder), the diameter (large-format Ø300 mm bars need special tools), and the surface finish needs. Minimum order quantities (MOQ) are a way to balance production efficiency with customer flexibility. To keep your inventory costs as low as possible, negotiate MOQs that are in line with how much you use. Standard sizes take two to four weeks to deliver, and custom specifications take four to eight weeks. Delivery lead times must work with project milestones, and there must be fast options for activities that are on the critical path.

Addressing Supply Chain Challenges

Coordinating logistics between places where things are made and places where they are used increases the chances of damage in transport and schedule delays. Flexible trade terms (EXW, FOB, and CIF) and North America cooperation thru U.S. companies make it easier to clear customs and cut down on transit times for suppliers. Set up framework deals with dedicated providers to make sure you have enough capacity during times of high demand and that a lack of materials doesn't stop production. Spread your buying across as many qualified sources as you can, making sure you have a good balance between deep relationships and supply continuity.

Application Case Studies: Magnesium Alloy Square Bars in Aerospace and Automotive Design

In the real world, magnesium alloys square bars show that their theoretical benefits can be turned into actual performance gains and operational efficiencies in the car and aircraft industries.

Aerospace Structural Weight Reduction

A company that makes satellites switched from aluminum 6061 frames to AZ61A magnesium alloy square bars in the mounting brackets for electronics. This made each part 38% lighter. This reduction in weight made it possible for a LEO satellite platform to carry 12 kg more payload, which meant that more sensor packages could be added without having to rethink the propulsion systems. The better damping properties stopped vibrations from getting to sensitive optics during launch, which made image stabilization better. Because magnesium is easier to machine, machining time dropped by 22%. This shortened production plans and cut costs per unit by 15%.

Automotive Suspension Components

A new company that makes electric cars put AZ31B magnesium alloy square bars into the back suspension control arms. This cut the vehicles' unsprung mass by 4.2 kg each. This made the ride more comfortable, increased the battery's range by about 2.3%, and made it easier to accelerate. At highway speeds, the natural damping properties cut road noise into the cabin by 4 dB, making the driving experience more pleasant. The material switch saved enough fuel and energy to avoid 840 metric tons of CO2 emissions per year over the course of a 200,000-unit production run.

Lessons Learned and Value Quantification

These case studies show three important procurement lessons: reducing weight directly affects performance metrics like range, payload, and efficiency; damping properties solve noise and vibration problems that usually need expensive extra solutions; and higher material costs don't affect the total cost of ownership when machining is more efficient. Before committing to full-scale production, B2B buyers should ask for pilot programs to test how well the product works in specific situations. They should also make sure that it can be used with existing manufacturing processes and confirm the estimated cost-benefit ratios.

How to Maximize the Value of Magnesium Alloy Square Bars in Your Project

Getting the most out of magnesium alloy square bars means integrating them strategically during the design, processing, and quality assurance stages. This will help them work at their best and reduce any risks.

Advanced Machining Best Practices

High-speed cutting with sharp carbide or polycrystalline diamond (PCD) tools removes the most material at the fastest rate while keeping the quality of the surface finish. Specialized oil-based coolants or dry machining stop hydrogen absorption, which can cause stress corrosion cracking. Fine magnesium dust can be flammable, but this can be controlled by removing chips right away and making sure there is enough air flow. Solid bars, on the other hand, don't pose many fire dangers during normal operations. Talk to tooling makers who have worked with magnesium before to find the best cutting settings for your CNC equipment and the number of items you want to make.

Heat Treatment for Enhanced Properties

Solution treatment (T4) at 410–430°C followed by water cooling evens out the grain and makes it easier to shape for parts that need to be bent after extrusion. When you age something artificially (T6) at 170-200°C, strengthening phases form. These phases raise the yield strength by 15–25% while only slightly reducing the ductility. Plan the order of machining and heat treatment so that rough machining comes before heat treatment and finish machining comes after. This will keep the dimensions stable and reduce warping. Work with providers that offer heat treatment services to make sure the process is always the same and to save money on buying new tools.

Common Pitfalls and Emerging Trends

Do not use magnesium in places where it will be exposed to salty or acidic conditions for a long time without proper surface protection. To prevent corrosion, protective coatings must be used. Galvanic corrosion can happen when magnesium touches metals that are not the same; use insulating gaskets or coatings at the points where the metals meet. New nano-grain refinement methods offer 30–40% stronger next-generation alloys, and additive production of magnesium parts gives designers more options than just using standard extrusion geometries. Stay involved with schools that do study on materials to get new alloys and processing methods before your rivals do.

Conclusion

In aircraft and car design, magnesium alloys square bars are very important because they allow for weight reductions that directly lead to better efficiency, longer range, and better performance. If procurement experts know how to choose the right alloy (AZ31B for shapeability, AZ61A for balanced strength, and AZ91D for hardness), they can fit the qualities of the material to the needs of the application. Strategic supplier evaluation that focuses on certifications, traceability, and delivery reliability lowers risks in the supply chain and makes sure that quality standards are met. Actual case studies show real improvements in the amount of data that satellites can carry, the range of electric vehicles, and the efficiency of manufacturing. By using advanced machining techniques and heat treatment methods, engineering teams get the most out of the materials they use and avoid common problems. This puts their projects at the cutting edge of technology for lightweight materials.

FAQ

Answering common questions gives procurement professionals the confidence they need to make technical decisions and evaluate suppliers.

1.What advantages do magnesium alloys offer over aluminum?

Magnesium alloy square bars have a density that is 35% lower than aluminum. This means that they directly reduce the mass of parts and make movement more fuel-efficient. It can dampen vibrations and noise 10–100 times better than metal, and it doesn't need any extra damper materials. Making things takes 30 to 50 percent less time and costs less because tools wear out faster. All of these benefits add up to a lower total cost of ownership, even tho the raw materials are more expensive. This is especially true in uses that care about weight and where performance gains support material premiums.

2.How does heat treatment affect mechanical properties?

Solution treatment (T4) breaks down alloying elements into a solid, uniform solution. This makes parts that need to be bent or shaped more flexible and easy to shape. Artificial aging (T6) forms small intermetallic phases that stop dislocations from moving. This raises the yield strength by 15–25% while only slightly reducing the extension. The best time to heat treat an alloy depends on its composition and the balance of properties that is wanted. For help customizing processes for specific uses and performance goals, talk to someone who knows metallurgy.

3.What criteria define trustworthy suppliers?

Magnesium alloy square bar suppliers you can trust have ISO 9001/14001/45001 certification, can test your bars in a way that is recognized by the CNAS, and can link each bar to its melt chemistry and extrusion parameters for full batch traceability. They offer full paperwork packages (COA, COC, SDS) that help with quality checks and following the rules. Advanced manufacturing control is shown by the ability to make extrusions with a diameter of up to 300 mm and tight tolerances on the dimensions. Partners are different from transactional suppliers because they offer flexible delivery choices, responsive engineering support, and regular delivery times of 2 to 4 weeks or 4 to 8 weeks for custom orders.

Partner with HAGRIEN for Superior Magnesium Alloy Square Bar Solutions

Finding the right magnesium alloys square bar supplier has a direct effect on the success of your project, from testing the prototype to mass production. Since 2019, HAGRIEN has been making precision-extruded bars up to 300 mm in diameter and has been able to prove this with CNAS-accredited validation and full batch tracking. Our closed-loop method makes sure that the dimensions stay the same, the microstructure is uniform, and the lead times are known (2-4 weeks for normal sizes and 4–8 weeks for custom specs). As a qualified magnesium alloy square bar maker, you can email our engineering team at cyrus@us-hagrien.com to talk about your needs, get full technical specs, or get reasonable pricing. You can look at our OEM/ODM services and download material selection guides at us-hagrien.com to help you with your buying decisions.
