5 Machining Tips for Aerospace Magnesium Alloy Round Bar

Machining Aerospace Magnesium alloy round bar demands precision, safety awareness, and specialized knowledge. These lightweight materials—featuring density 75% lower than steel and 33% lighter than aluminum—deliver exceptional weight reduction for helicopter transmission housings, satellite structural brackets, and commercial aircraft interior components. Successfully machining these alloys requires optimized cutting parameters, specialized tooling, rigorous safety protocols, post-machining treatments, and collaboration with certified suppliers. This guide presents five proven strategies that help materials engineers and procurement professionals reduce scrap rates, extend tool life, and meet stringent AMS/ASTM standards while ensuring FAA and EASA compliance throughout the supply chain.

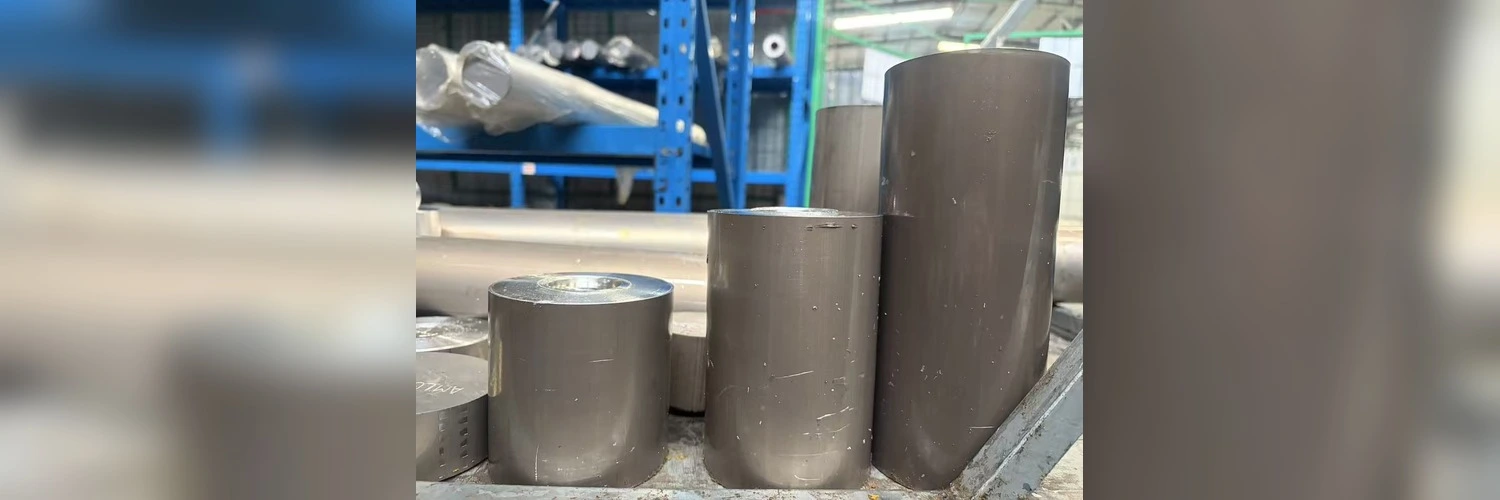

Understanding Aerospace Magnesium Alloy Round Bar for Machining

Some aerospace magnesium metals, like AZ31B, AZ61A, and AZ91D, have special properties that affect how they are machined. These materials have tensile strengths between 230 and 315 MPa and stretch values between 3% and 21%. They are a good mix between strength and weight. The thermal conductivity of magnesium metals is 50–70 W/(m·K), which lets heat escape quickly during cutting. However, their low melting points (470–632°C) mean that you have to be careful with the temperature to keep the workpiece from warping.

Material Properties That Impact Machining

Magnesium's hexagonal close-packed crystal structure makes it easy to machine, but it also causes it to behave in an uneven way. The surface finish quality and physical stability are affected by the size and direction of the grains. Rare-earth alloys, like WE43, have better creep resistance up to 600°C. This makes them good for uses close to engines where heat cycling happens a lot.

Common Challenges in Aerospace Applications

When ordering magnesium round bars for machining, procurement engineers have to deal with a number of problems. Large bars (Ø200–300 mm) often have uneven grain structures if the extrusion parameters aren't stable. This can cause tool wear and surface flaws that are hard to predict. The material can catch fire when it comes into contact with some cutting fluids, and its low hardness (56–90 HB) can lead to edges that build up. By knowing these things, you can choose the right processing windows and avoid costly production delays while the product is being qualified.

Tip 1 – Optimize Cutting Parameters for Enhanced Surface Finish and Tool Life

Cutting speed, feed rate, and depth of cut choices all play a big role in getting aerospace-grade finishes on magnesium alloy round bars. According to data from the industry, the best cutting speeds for roughing are between 300 and 600 meters per minute, and the best feed rates are between 0.1 and 0.3 mm per tooth. These settings find a good balance between productivity and temperature control, which stops areas from getting too hot and damaging the surface.

Balancing Speed and Precision

High cutting speeds lower cutting forces and make it easier for chips to escape when machining Aerospace Magnesium alloy round bar, but too much speed creates frictional heat that could set magnesium fines on fire. We suggest that controlled factors be used to keep cutting temps below 300°C. Finish passes work best with slower feed rates (0.05 to 0.15 mm per tooth) and shallow depths of cut (0.2 to 0.5 mm). This makes surfaces rough (Ra = 0.8 to 1.6 μm), which is what aerospace structural parts need.

Coolant Selection and Fire Prevention

Because magnesium is easily caught on fire, it needs special cooling tactics. Water-based emulsions and manufactured coolants work well to control heat, but they need to be carefully pH-balanced (7.5–9.0) to stop galvanic rusting. Cutting fluids that are based on mineral oil are better at lubrication and lower the risk of fire. Our closed-loop manufacturing system uses automatic coolant tracking to keep thermal management consistent across production batches. This makes sure that the surface quality of parts going to the supply lines of Boeing and Airbus is always the same.

Effective chip removal keeps fines from building up and becoming flammable. Chips are taken out before they hit the ignition point by using vacuum collection devices and high-pressure coolant supply (5–10 bar). Compared to traditional flood cooling methods, this integrated approach cuts down on fires and increases tool life by 30–50% (ASM International, 2018).

Tip 2 – Use Specialized Tooling and Machining Equipment

When machining aerospace magnesium round bars, the choice of tools has a direct effect on both the quality of the parts and their productivity. Sharp cutting edges on carbide inserts (5–10° rake angles) reduce cutting forces and keep work from hardening. Polycrystalline diamond (PCD) tools are very hard to wear down, so they can be used for high-volume production. They can keep measurement accuracy within ±0.025 mm for a long time.

Tool Geometry for Magnesium Alloys

Because magnesium isn't very hard and edges tend to get built up, it's important to have sharp tool shape. To make it easier for chips to move and lessen sticking, we specify rake angles between 8° and 15° and clearance angles between 12° and 18°. When profile milling, helical end mills with helix angles between 35° and 40° make cleaner cuts and cause less shaking. When working with big bars, where cutting forces rise in a straight line, these geometric parameters become even more important.

Machine Rigidity and Vibration Control

Machines need to be very rigid both when they are stationary and when they are moving. With their cast-iron bases and preloaded ballscrews, horizontal machining centers can keep their positioning accuracy within ±0.005 mm for long cutting cycles. Vibration dampening systems stop noise that can damage the finish on the surface and make it harder to control the dimensions. Our factory has 3,600-ton and 5,600-ton extrusion presses with built-in cutting cells. This makes sure that the material is consistent from extrusion to delivery of the end component.

Every 500 hours of use, routine calibration procedures check the correctness of the machine. Laser interferometry and ballbar tests find mistakes in setting before they hurt the quality of the production. This proactive approach to maintenance helps keep delivery times consistent and on schedule, which is what aerospace procurement engineers need to qualify suppliers and keep checking for compliance.

Tip 3 – Employ Effective Safety Measures during Machining

Because magnesium is easily ignited, it poses special safety issues that need a thorough approach to reducing risk. Ignition happens in air at about 480°C, and burning gives off a lot of heat and light. Facilities that work with Aerospace Magnesium alloy round bars need to follow strict safety rules that cover things like preventing fires, dealing with emergencies, and keeping workers safe.

Fire Prevention Infrastructure

Effective dust collection systems catch magnesium fines where they come from, so they don't build up in the air. Using grounded ducts and HEPA filters gets rid of static electricity that can start a fire. We keep the negative pressure in the machining enclosures and check for dust buildup once a week. Each machine station is within 10 meters of a Class D fire extinguisher that uses dry powder because water-based extinguishers make magnesium fires worse.

Operator Training and PPE Requirements

People who work with Aerospace Magnesium alloy round bar materials get special training that covers how the materials respond, what to do in an emergency, and how to choose the right PPE. Gloves that won't cut, safety glasses with side shields, and clothes that won't catch fire all protect against mechanical and thermal dangers. Our training programs are in line with OSHA rules and best practices in the aircraft business. This makes sure that our employees are ready for both normal operations and emergencies (National Fire Protection Association, 2020).

Chip and Swarf Management

Wet chip collection devices that use mineral oil keep fines from starting to burn on their own. Magnesium swarf is kept separate until it is thrown away in containers with lids that are sealed and atmospheres of inert gasses. We keep magnesium machining stations at least 3 meters away from other materials that could catch fire. These procedures protect production consistency and seller image in the aerospace manufacturing sectors while meeting FAA and EASA safety requirements.

Tip 4 – Post-Machining Treatments for Durability and Performance

After they are machined, aerospace magnesium parts get treatments that improve their mechanical properties and resistance to the environment. Heat treatment, surface finishing, and protective coats make things last longer and meet strict aircraft quality standards like AMS 4377 and AMS 4350.

Heat Treatment for Stress Relief

Machining leaves behind residual forces that hurt the ability to resist wear and keep the shape of an object. Stress reduction annealing at 250–350°C for one to two hours lowers the stresses inside by 60–80% without changing the mechanical features much. Our CNAS-approved lab uses X-ray diffraction analysis to prove stress reduction and provides documentation packages that help with material qualification processes and supplier audits.

Surface Protection Systems

Magnesium parts used in aerospace need to be protected from corrosion in places that are wet and salty. Chemical conversion coatings (chromate-free formulations that follow RoHS rules) offer basic protection and have a thickness of 2–5 μm. Electrolytic plasma oxidation creates layers that are like ceramic and are 40–80 μm thick. These coatings are better at protecting against rust and wear. These treatments meet the 500-hour or more salt spray requirements set by ASTM B117 for use on commercial aircraft (SAE International, 2019).

Quality Verification Protocols

A careful check makes sure that the treatments done after the machining meet the requirements set out in the specifications. We use spectrographic analysis to check the makeup of the alloy and ultrasonic tests (AMS 2154) to find flaws below the surface. We also measure grain size (ASTM E112). Before applying a protected covering, a fluorescent penetrant is used to find any surface cracks. Every shipment comes with a full Certificate of Analysis (COA), Certificate of Conformance (COC), and Safety Data Sheet (SDS) document. This makes it easier to qualify suppliers and track goods throughout aerospace supply chains.

Tip 5 – Collaborate with Trusted Aerospace Magnesium Alloy Round Bar Suppliers

Choice of supplier has a big effect on the success of a program, the uniformity of quality, and the security of the supply chain. When buying aerospace parts, companies need to work with partners who have a track record of manufacturing skills, strict quality control systems, and quick expert help. Certified providers shorten the time it takes to get qualified, keep batch differences to a minimum, and provide audit-ready paperwork that meets FAA and EASA standards.

Certification and Quality Standards

Getting ISO 9001, ISO 14001, or ISO 45001 standards for Aerospace Magnesium alloy round bar shows that you care about quality management and the environment. Aerospace-specific approvals, like AS9100 and NADCAP, show that a company can meet the needs of its business. Along with API recognition and HSE management systems, our facility keeps these certificates. This gives customers faith in compliance from the initial source review to ongoing production tracking.

Manufacturing Capability and Scalability

Large-diameter extrusion (up to Ø300 mm) with controlled grain structure lowers the risks and scrap rates of machining that comes after. Integrated manufacturing, which includes melting the alloy, extruding it, and carefully cutting it, gets rid of the need for delays in coordination between suppliers. We keep safety stock of standard sizes (AZ31B, AZ61A, and AZ91D), and the lead time for these is usually 2–4 weeks. Custom specifications take 4–8 weeks to deliver, but there are options for getting them faster for important programs.

Technical Support and Documentation

Quick response from engineers speeds up the process of fixing problems and making processes run more smoothly. Within 24 hours, our team responds to RFQs, and within 1–3 business days, they give formal quotes. We support production based on drawings, prototype scaling, and Factory Acceptance Testing so that you can quickly go from testing an idea to mass production. Weekly project updates are in line with the schedules of North American aerospace programs, and they are backed up by a U.S. organization that helps with local coordination.

Full batch tracking and inspection records help with finding suppliers and making sure they are following the rules all the time. Our paperwork includes COAs, COCs, SDSs, mechanical test data, and metallographic reports. All of these have been checked by our CNAS-accredited lab and are official. This method is ready for an audit and cuts the approval cycle from 6 to 12 months to 4 to 8 months. This speeds up program rollout while still meeting strict quality standards (Aerospace Industries Association, 2021).

Conclusion

To successfully machine Aerospace Magnesium alloy round bars, you need to pay attention to cutting parameters, safety practices, special tools, treatments after machining, and building strategic partnerships with suppliers. Optimized cutting speeds (300–600 m/min) and special carbide or PCD equipment make tools last longer and get surfaces that are good enough for aircraft use. Strict rules for preventing fires protect people and keep production going. Treatments done after the metal is machined, like stress relief and protective coatings, make it stronger and less likely to rust so it meets AMS/ASTM standards. Working with certified providers who can handle big diameters, offer full traceability, and provide quick expert support cuts down on qualification times and supply chain risks. These five strategies help materials engineers and procurement workers make sure that all aerospace manufacturing projects have consistent quality, reliable delivery, and follow all regulations.

FAQ

1. What advantages does magnesium offer compared to aluminum for aerospace applications?

Magnesium alloys have a 33% lower density than aluminum, which means they save a lot of weight, which helps with fuel efficiency and payload optimization. Better vibration damping (8–10 times better than aluminum) in rotary-wing and power systems, which increases the wear life of parts. Because it cuts down on tool wear and cutting speeds, excellent machinability lowers the cost of making things. Because of these qualities, magnesium is very useful for parts that hold transmissions in helicopters, support structures for satellites, and parts inside airplanes that are used to make the cabin more comfortable.

2. How can I ensure consistent quality across multiple batches from suppliers?

Make sure that suppliers have quality management systems that are certified (ISO 9001, AS9100) and that they provide full batch traceability documentation. For every package, you should ask for a Certificate of Analysis (COA) and a Certificate of Conformance (COC), which should include mechanical test data, a chemical makeup analysis, and metallographic reports. Check the process controls and checking skills of your suppliers on a regular basis. Set standards for acceptable grain size, measurement accuracy, and surface quality. Then, for new runs, require first article inspection reports. Suppliers with integrated factory control and CNAS-accredited labs give aircraft projects the consistent results they need.

3. What are the main machining challenges with magnesium alloys and how can they be mitigated?

The main problem is that it can catch fire, which needs special cooling systems, dust collection, and Class D fire extinguishers. Low hardness causes built-up edges to form. This problem is less likely to happen with sharp tools (8–15° rake angles) and the right cutting speeds. Large diameter bars may not have a uniform grain structure; choosing suppliers with controlled extrusion processes will make sure that the bars are all the same. Galvanic rust needs coolants with pH controls and quick cleaning after cutting. Thorough training for operators and strict adherence to safety standards in the aerospace industry are good ways to deal with these problems while keeping production quality high and workers safe.

Source Certified Aerospace Magnesium Alloy Round Bar from HAGRIEN

HAGRIEN uses aerospace-grade quality systems and integrated production control to make Aerospace Magnesium alloy round bar that is reliable for tough applications. They do this by melting the metal, extruding it up to Ø300 mm, and precision milling. Our closed-loop capability gets rid of delays caused by coordinating between suppliers and makes sure that the microstructure is uniform, that dimensions are within tight ranges, and that each batch can be fully tracked. With ISO 9001, 14001, and 45001 certifications, a CNAS-accredited lab, and quick support in North America, we help aircraft makers cut qualification times from 6 to 12 months to 4 to 8 months. Our engineering team can help you with everything from choosing the right materials to Factory Acceptance Testing and mass production, whether you're making transmission parts for helicopters, frames for satellites, or the insides of business airplanes. Standard sizes take 2–4 weeks to ship, but there are faster choices for programs that need to be sent out quickly. Get in touch with our materials engineering experts at cyrus@us-hagrien.com or visit us-hagrien.com to talk about your needs and get a full quote package. Work with a reliable Aerospace Magnesium alloy round bar provider that knows how hard it is to do the machining that comes after and can meet your program's needs for regularity.
