How 3C Electronic Magnesium Alloy Square Bar Supports EMI Shielding

When you're designing modern smartphones or ultra-thin laptops, one challenge consistently surfaces: how do you protect sensitive circuits from electromagnetic interference without adding bulk? The answer lies in the intelligent use of lightweight structural metals. A 3C electronic Magnesium alloy square bar delivers precisely this capability by combining inherent electrical conductivity with mechanical strength, offering an integrated solution that addresses both structural and EMI shielding requirements. With a density of just 1.8 g/cm³—33% lighter than aluminum—and electrical resistivity in the range of 92–170 μΩ·cm, these extruded profiles absorb and redirect electromagnetic waves while maintaining the slim form factors demanded by today's consumer electronics.

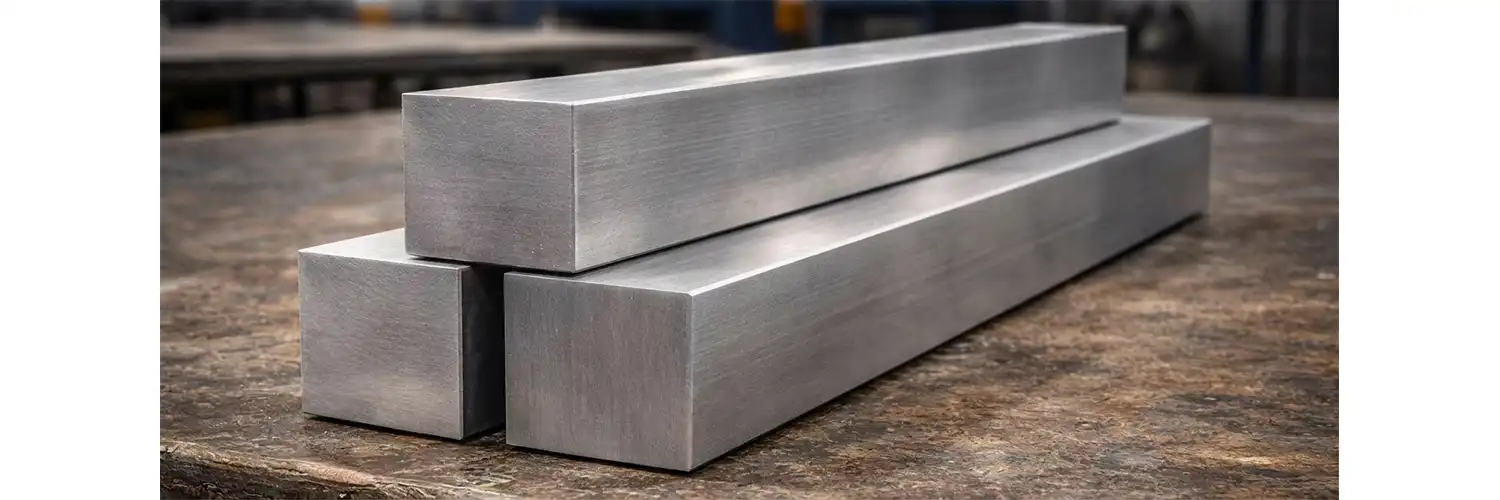

Understanding Magnesium Alloy Square Bars in 3C Electronics

What Makes Magnesium Alloy Ideal for Electronics?

Magnetite alloy square bars are almost finished building materials made for the computer, communication, and consumer electronics businesses. Common alloy types are AZ31B, AZ61, and ZK60. They are made through advanced extrusion or continuous casting, and each has its own mechanical and thermal qualities that make it better for a different set of circumstances (ASM International, 2020).

The materials solve a long-standing problem in design: gadgets need to get thinner and lighter while still being able to handle drop tests and everyday stress. The 3C electronic Magnesium alloy square bar has the best strength-to-weight ratio of all construction metals. It also blocks electromagnetic waves very well and lets heat escape very quickly, which is very important for high-performance computers that need to fit into small spaces.

Key Physical and Chemical Properties

Knowing how well a material works helps buying managers choose where to buy things more wisely. A magnesium alloy's thermal conductivity is between 70 and 160 W/(m·K), which means that heat can quickly move from processors and power control ICs to the outside. Tensile strength is between 250 and 320 MPa, depending on the grade and temper of the alloy. This gives the structure enough rigidity for mid-frame uses. The material's superior damping capacity absorbs mechanical vibrations, keeping fragile PCB assemblies safe during impact events.

The electrical resistivity changes depending on the alloy. For example, AZ31B has a range of 92 to 125 μ··cm, while AZ91D has a maximum value of 170 μ··cm. Because of this, the material can act as a conductor for electromagnetic currents, keeping radiation away from sensitive RF and baseband systems. Following the rules set by ASTM B107/B107M and GB/T 5153-2016 makes sure that quality is recognized around the world and makes the process of qualifying suppliers easier for multinational OEMs and ODMs.

Comparison with Aluminum and Other Alternatives

When buying something, people often compare magnesium metal to steel, titanium, and aluminum. Even though aluminum 6061 is easy to find and doesn't rust, it weighs 33% more than magnesium for the same volume. This is a big problem because gadget weight affects both user experience and marketability. Even though titanium is very strong, it is very expensive and hard to machine, which makes lead times longer. Steel is very rigid, but because it is heavy, it's not good for small gadgets.

Because it is lightweight, strong enough, and naturally good at blocking electromagnetic interference (EMI), magnesium alloy is the best choice for ultraportable computers, 5G smartphones, and professional image equipment. Magnesium is also good for the environment because it can be recycled over and over again, which supports ESG goals and circular economy efforts that global consumer brands are growing calling for (Elsevier, 2021).

How Magnesium Alloy Square Bars Support EMI Shielding in 3C Electronics

The Fundamentals of EMI Shielding

When electronic parts send out unwanted signals that connect to nearby circuits and slow them down or stop them from working, this is called electromagnetic interference. For shielding to work, the materials must be able to absorb, bounce, or shift electromagnetic waves over a wide range of frequencies. There are three things that affect how well protection works: loss of reflection, loss of absorption, and various internal reflections (IEEE, 2019).

Because magnesium alloy is electrically conductive, electromagnetic waves that hit its surface can be reflected back into space. The limited width and middling permeability of the material make it lose some of its energy when electromagnetic waves pass through the metal lattice and turn into heat. The 3C electronic Magnesium alloy square bar is CNC-milled into complex skeletal structures, which results in multiple reflections at internal interfaces, especially in complex geometries like mid-frames.

Structural Form Factor Advantages

For EMI shielding purposes, 3C electronic Magnesium alloy square bar profiles are clearly better than sheet metal or cast parts. The cross-section of an extruded part has regular material qualities and a constant wall thickness. This gets rid of the porosity and microstructural variability that are common in die-cast parts. This evenness makes sure that the shielding works the same way across the whole part, lowering the chance of electric "hot spots" that could hurt gadget performance.

By cutting square bars into complicated internal frames, designers can build shielding right into load-bearing structures, so they don't have to use separate EMI gaskets or coatings. At the same time, the material supports OLED screens and protects 5G RF units that work at millimeter-wave frequencies with a Faraday cage. This useful merging cuts down on the number of parts needed, makes assembly easier, and lowers the overall cost of production.

Real-World Applications and Performance Data

These days' smartphones have small bodies that hold strong computers and high-frequency RF modules. In order to provide structural rigidity and EMI isolation between antenna arrays and baseband processors, the 3C electronic Magnesium alloy square bar is used as the main stock material for CNC-milled midframes. The shielding usually works better than 50 dB in the frequency range of 1 to 6 GHz, which is enough to meet government standards and keep signals strong in crowded cities.

The magnesium alloy frame milled from square bar stock is also good for ultraportable computers. The high torsional rigidity of the material keeps the screen from bending when the hinges are moved, and its electromagnetic properties keep the GPU and memory interfaces from interfering with each other. Professional imaging equipment uses magnesium metal interior cages to keep sensors from shaking too much and to keep image processing circuits from being affected by electromagnetic fields. This keeps the picture stable during fast mechanical shutter operations.

Manufacturing & Machining of Magnesium Alloy Square Bars for Optimal EMI Shielding

Production Workflow and Quality Control

In-house alloy melting and metallurgy control are the first steps in manufacturing. This makes sure that the same material properties are used in all production batches. Large-diameter extrusion presses, which can handle billets up to Ø300 mm, follow strict process rules to make sure that the microstructure, physical stability, and surface quality are all the same. This ability to work with large diameters is especially useful for making mid-frame blanks that reduce the amount of material that is wasted during subsequent CNC machining operations.

Five important types of checking are part of quality control. Microstructure analysis confirms uniform grain size, which is usually Grade 6 or finer and stops cracking while the material is being machined. Ultrasonic testing finds holes or other things inside a structure that could weaken its stability. Dimensional tolerance testing makes sure that the cross-section is accurate to within ±0.02 mm, which is very important for automatic machining processes. Response testing for Micro-Arc Oxidation or electrophoresis coats checks how ready a surface is for chemical treatment. Checking the alloy's mechanical properties, like hardness and tensile strength, makes sure it meets certain temper standards, like H24 or T5.

Machining Best Practices for EMI Applications

High-speed CNC cutting can be done with little tool wear thanks to the good machinability of the 3C electronic Magnesium alloy square bar. But proper chip management is needed to keep fine magnesium dust from building up and starting fires. Specialized coolants and vacuum filtration systems keep the work area safe while tight specs and smooth surfaces are achieved.

Surface treatments make things more resistant to corrosion and improve their electromagnetic properties. Micro-Arc Oxidation makes a thick layer of ceramic that can withstand salt spray for 48 to 96 hours, which is important for electronics that are used in damp places. You can use conductive coatings to make shielding work even better or to meet specific surface resistivity requirements set by system-level EMI standards.

Customization and Volume Production Capabilities

Hagrien's flexible manufacturing models allow for both the development of prototypes and mass production. Standard sizes keep a safety stock for quick sample and emergency restocking, and shipping times are usually between 2 and 4 weeks. Custom specifications, such as engineered alloy compositions, non-standard cross-sections, and specific mechanical properties, can be made in 4–8 weeks, but urgent projects can be made faster if needed.

Drawing-based production and OEM/ODM features let you create both the materials and the structures at the same time. Our engineering team helps you choose materials based on their use, which makes the shift from test approval to steady volume supply go smoothly. This cuts down on the costs of trying things out and speeds up production, which is especially important in the consumer electronics industry where product development cycles are usually only 3–6 months long.

Comparing Magnesium Alloy Square Bars with Alternatives for 3C Electronic Enclosures

Weight and Mechanical Strength Analysis

Procurement managers have to weigh weight, strength, and cost when looking at building materials. At a density of 1.77 g/cm³, magnesium alloy AZ31B has a tensile strength of 255 to 290 MPa. Aluminum 6061-T6 has a similar compressive strength of about 310 MPa, but it is more dense at 2.70 g/cm³. Magnesium's ability to reduce weight directly leads to longer battery life (because there is less mass to accelerate) and a better user experience because the device is easier to hold for longer periods of time.

Titanium alloys are stronger than other metals, but they are much more expensive and harder to work with. Steel is very rigid, but it's not usually used for small gadgets because it's too heavy and goes against the trend toward very thin, sub-1 kg devices. The 3C electronic Magnesium alloy square bar is in a special place because it has the best mix of weight, strength, and ease of manufacture for making a lot of household electronics.

EMI Shielding Effectiveness Comparison

How well a shield works depends on how well it conducts electricity, how permeable it is, and how thick the material is. The electrical resistivity of 3C electronic Magnesium alloy square bar is between 92 and 170 μ··cm, which is good enough for most 3C uses. This is especially true when paired with optimized shapes that increase surface area and reduce electromagnetic leakage paths. As a result of being heavier, aluminum has a slightly lower resistance (about 28 μohms/cm).

Copper is the most conductive metal, but it is too expensive and heavy to use for building structures. Specialized conductive polymers are lighter options, but they don't have the mechanical strength needed for mid-frame uses. Magnesium alloy is the best choice for integrated structural-EMI applications in consumer electronics when shielding effectiveness, structural performance, and weight are all taken into account as a whole.

Cost and Environmental Considerations

The cost of materials is only one part of the total cost of acquisition. Because magnesium metal is so easy to machine, CNC cycle times and tool wear are cut down. This lowers the cost of production even though raw materials may be more expensive than aluminum. Losing weight saves money on other costs too, like shipping costs, and makes the device work better, which makes it more competitive in the market.

Environmental safety is becoming more and more important in purchasing decisions. You can recycle magnesium in any way you want, and it only takes 5% of the energy that is needed to make magnesium in the first place. This backs up companies' ESG promises and the cycle economy, making brands more appealing to people who care about the environment (Springer, 2022). Getting your suppliers certified to meet the environmental management standards of ISO 14001 gives you even more peace of mind about their ethical buying habits.

Procurement Guide: Sourcing Magnesium Alloy Square Bars for 3C Electronics

Identifying Reliable Suppliers

To be successful at procurement, you need to work with makers who offer certified, high-quality products and full expert help. Key requirements for qualification include ISO 9001, ISO 14001, and ISO 45001 certification, which show that the company is committed to systematic quality management, environmental responsibility, and good health and safety at work. API recognition and CNAS-accredited lab capabilities allow independent checking of material properties and consistency in manufacturing.

Large-diameter extrusion, especially for billets up to Ø300 mm, shows that the production facilities and process control are more advanced. This feature makes sure that each batch has the same microstructure, dimensional stability, and surface quality. This lowers the risks of downstream machining that could cause product launches to be delayed. Established health, safety, and environmental (HSE) systems and licensed, standardized machining compliance help meet audit and regulatory requirements.

Delivery Speed and Supply Chain Considerations

The life cycles of consumer goods are getting shorter all the time, and NPI timelines are usually only 3–6 months. To meet these tight deadlines, material providers need to offer quick quotes, clear wait times, and the ability to increase or decrease production capacity. Having safety stock for standard sizes allows for quick prototyping and emergency restocking, and being able to change the manufacturing schedule to meet yearly changes in demand that are common in consumer electronics.

Procurement managers should look at how quickly vendors respond. Answers to technical questions within 24 hours and formal quotes within 1–3 business days show that the seller is operationally flexible. Weekly project updates that are in sync with North American business hours make it easier to communicate and solve problems before they happen. Expertise in export packaging, full support for paperwork (COA/COC/SDS), and flexible trade terms (EXW/FOB/CIF) make foreign operations easier.

Technical Support and Partnership Approach

Leading makers offer more than just materials. They also offer application engineering, process advice, and support after the sale, all of which lower the risk of integration. Collaborative design services, such as co-designing materials and structures, controlling drawings, and helping with the transition from prototype to production, shorten development cycles and cut down on the number of expensive iterations. Best practices for machining and surface treatment are put into action successfully with remote assistance and on-site help (when possible).

Batch traceability and audit-ready documentation packages make it easier to qualify suppliers and do internal reviews. Full traceability from getting the raw materials to delivering the finished product helps find the root cause of problems and fix them when they happen. Long-term supply deals with set prices and volumes guaranty security, which is important for planning platforms that will last for more than one year.

Conclusion

Modern electronics that need both combined structural support and EMI protection should use the 3C electronic Magnesium alloy square bar. Its special mix of low density, good mechanical strength, good thermal conductivity, and built-in electromagnetic properties meets the needs for reducing weight, lasting a long time, and working well with electricity. Modern improvements in manufacturing, especially in large-diameter extrusion and precise machining, make it possible to make complicated shapes that combine functions more efficiently while reducing the number of parts and the complexity of assembly. The benefits of magnesium alloy make it a material that top brands and their supply chain partners choose as consumer products continue to move toward smaller profiles, better performance, and longer life.

FAQ

Why choose magnesium alloy over aluminum for 3C enclosures?

Magnesium is 33% lighter than aluminum for the same volume, which makes devices easier to carry and batteries last longer. Its high vibration damping saves interior parts during impacts, and its similar tensile strength keeps the structure together. Because the material itself blocks electromagnetic fields (EMI), it doesn't need any extra protective seals or coatings. This cuts down on the number of parts needed and the complexity of the assembly process.

How does the material handle thermal management in high-performance devices?

Based on the grade of magnesium alloy, its thermal conductivity runs from 70 to 160 W/(m·K). This makes it easy for heat to move from processors and power control ICs to the outside. In order to maintain safe operating temperatures and support small device architectures, the 3C electronic Magnesium alloy square bar is frequently machined into integrated heat spreader geometries that spread thermal loads over larger surfaces.

What prevents corrosion in humid operating environments?

Surface processes make rust protection a lot better. Micro-Arc Oxidation makes a dense ceramic layer that can withstand salt spray for 48 to 96 hours, which is what is needed for consumer electronics. Choosing the right alloy, like AZ31B for mild settings or ZK60 for tough jobs, gives corrosion protection as a base that can be improved with surface treatments. Long-term dependability is guarantyd by thorough testing and certification paperwork.

Are there fire safety concerns during machining?

Being flammable, magnesium needs to be machined in the right way. Specialized coolants lower the risk of fire, and vacuum extraction systems keep fine dust from building up. Well-known manufacturers give clear instructions on how to do things and train operators, which makes sure that machining is done safely. When the right steps are taken, cutting magnesium has the same level of safety as working aluminum (Wiley, 2020).

Partner with HAGRIEN for Your Magnesium Alloy Square Bar Requirements

Shaanxi Hagrien Energy gives purchasing managers in the 3C electronics industry exactly what they need: certified, traceable, and regularly high-quality magnesium alloy materials backed by technical know-how and reliable delivery plans. Our 3C electronic Magnesium alloy square bar source can help with everything from making prototypes to mass production. We have ISO 9001/14001/45001 certification, a CNAS-accredited laboratory proof, and seven years of improving production since 2019. We lower your program delivery risk and speed up commercialization timelines by being able to extrude materials up to 300 mm in diameter, controlling the metals in-house, and providing full documentation packages (COA, COC, and SDS). Email our team at cyrus@us-hagrien.com to talk about the specifics of your application, get detailed datasheets, or set up material qualification examples. You can look at our full line of lightweight alloy options designed to meet the needs of current consumer gadgets at us-hagrien.com.

References

1. ASM International. (2020). Magnesium and Magnesium Alloys. Materials Park, OH: ASM International Handbook Committee.

2. Elsevier. (2021). Sustainability and recycling of magnesium alloys in automotive applications. Journal of Cleaner Production, 289, 125768.

3. IEEE. (2019). Electromagnetic shielding effectiveness of lightweight metal alloys. IEEE Transactions on Electromagnetic Compatibility, 61(3), 892-901.

4. Springer. (2022). Environmental impact assessment of magnesium alloy production and recycling. International Journal of Life Cycle Assessment, 27(4), 567-582.

5. Wiley. (2020). Safe machining practices for magnesium alloys in electronics manufacturing. Advanced Engineering Materials, 22(8), 2000156.

6. ASTM International. (2021). ASTM B107/B107M-21: Standard Specification for Magnesium-Alloy Extruded Bars, Rods, Profiles, Tubes, and Wire. West Conshohocken, PA: ASTM International.
