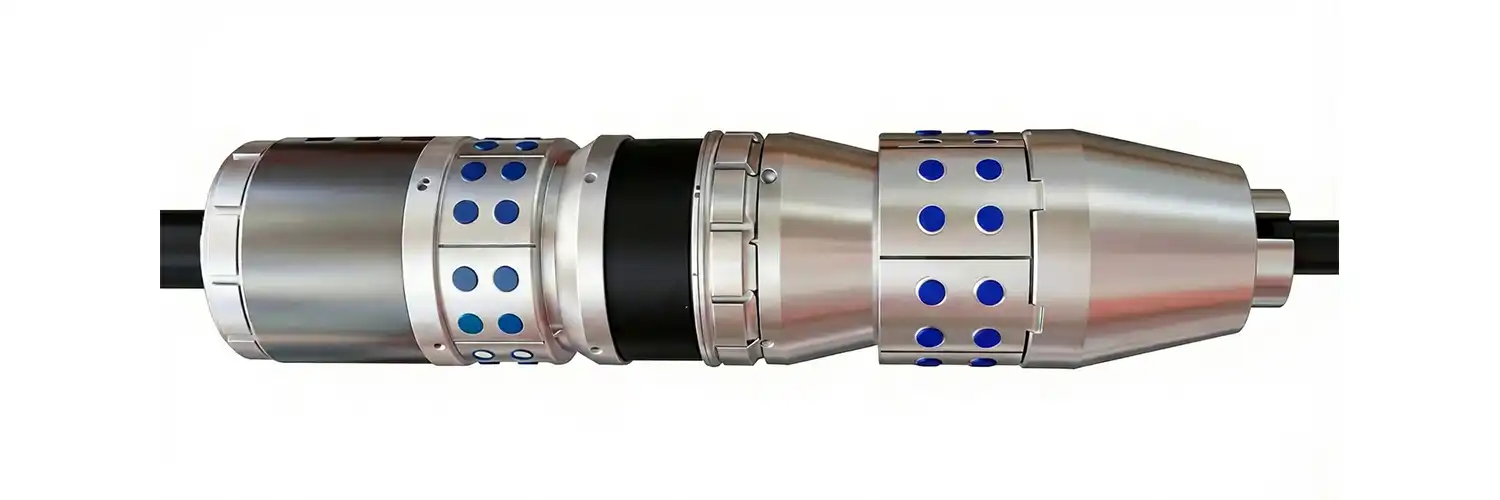

No Retrieval Required Magnesium Plug for Low-Cost Well Intervention

When completion teams face spiraling milling costs and unpredictable intervention schedules, the no retrieval required magnesium plug offers a straightforward answer. Manufactured from engineered dissolvable magnesium alloys, these downhole isolation devices eliminate mechanical drill-out operations entirely. The plug dissolves predictably in wellbore fluids—whether brine, produced water, or low-pH stimulation fluids—leaving the wellbore clear for production without coiled tubing runs, rig-up delays, or debris management. This translates directly into lower AFE spend, faster time-to-first-oil, and reduced HSE exposure across multistage fracturing, recompletion, and horizontal well programs.

Understanding No Retrieval Required Magnesium Plugs and Their Role in Modern Well Intervention

The oil and gas sector is continually seeking for innovative solutions that may save time and maintain zonal separation purity. Traditional composite or cast-iron bridge bolts need milling. This stage takes longer, wears out tools, and complicates organization. No-retrieval magnesium plug changes this equation. Controlled-dissolution magnesium alloys make the tool strong. It maintains pressure during stimulation and breaks down into small pieces when exposed to downhole chemistry and temperature.Mechanism works by galvanic corrosion. Magnesium alloys break down electrochemically in conductive fluids with chloride ions at different rates depending on their composition, grain structure, and heat treatment. Engineers balance robust isolation during splitting with rapid release after the task to accommodate working schedules. Salinity, temperature, and pH affect breakdown times, which are usually 24–72 hours.

Key Benefits of Dissolvable Isolation Technology

Dissolvable bridge plugs improve efficiency and cost. Reduce milling passes, rig time, and coiled tubing movement to save money. As with composite plugs, pump them down using slickline or wireline equipment, determine the desired depth by pressure or mechanical methods, and test the seal with a pressure test. Metal debris in the wellbore is removed, improving environmental compliance. The produced fluids safely distribute magnesium hydroxide and oxide. Fewer downhole interventions, reduced high-pressure labor, and simpler well control increase safety.Completion service businesses say project costs have improved. A horizontal shale well with 30 frac stages might cost $150,000–$250,000 in milling. Switching to dissolvable separation may lower that cost in half and the time from completion to production by several days. Deepwater operators make considerably more money; offshore rig rates exceed $500,000 per day, so every hour counts.

Practical Applications Across Completion Workflows

Dissolvable magnesium plugs complete horizontal wells, separate zones temporarily, and fracture multistages. In unconventional fields like the Permian, Eagle Ford, and Marcellus, miners separate hole clusters with dozens of plugs per well. The most frequent approach is plug-and-perf, and eliminating drill-out speeds up completion. When tools clear on time, offshore completions and undersea wells that are hard to reach for interventions enjoy operational freedom.Carbon capture and storage (CCUS) injection wells, geothermal generating, and water discharge are emerging applications. Hot geothermal brines (over 150°C) with dissolved salts dissolve quickly, therefore metal choice is crucial. CCUS projects require trackable materials and predictable performance. Both certified metallurgy and batch tracking in dissolvable separation suit these demands.

Comparing Dissolvable Magnesium Plugs with Conventional Isolation Solutions

When setting finishing plans, procurement teams look at a number of different isolation technologies. It is easier to choose the right tools for a job when you know the pros and cons of different materials like dissolvable magnesium, composite bridge plugs, cast-iron plugs, and even zinc or aluminum anodes.

Material Properties and Performance Characteristics

A No retrieval required magnesium plug has a low density of about 1.8 g/cm³ and a high compressive strength of over 500 MPa. This is different from cast-iron designs (density ~7.8 g/cm³) and composite plugs (density ~2.0 g/cm³). The light shape lets the pump go down faster, which cuts down on the time it takes to finish the cycle. The machinability is very good, and CNC tools can make slip profiles, seal holes, and pressure ports with very tight tolerances.

Corrosion Protection and Dissolution Control in Varied Chemistries

Magnesium is very reactive in saline settings because of its electrical potential. Engineers use this reaction to make dissolution models that meet the needs of operations. A standard-grade metal might dissolve in 24 hours in produced water with more than 100,000 ppm of total dissolved solids. To keep reaction rates fixed, low-salinity fluids need magnesium formulas that are "active" and contain rare-earth elements or aluminum.Temperature speeds up dissolution; temperatures above 120°C in the ground can cut breakdown time in half compared to 60°C conditions. Acid activation, which is common in carbonate sources, speeds up the process by a huge amount. Hydrochloric or organic acids eat away at the oxide layer, revealing new metal. When engineers choose a tool, they take these factors into account. They define the metal grades and shapes to make sure the plug stays in place during treatment but can be cleared before production starts.

Maintenance, Operational Impact, and Total Cost of Ownership

Post-frac upkeep is not needed with dissolvable tools. There were no checks on the mill bits, no tests on the coiled tubes, and no backup plans for when parts got stuck. The operational effect depends on how predictable it is: does the plug dissolve when it's supposed to? Field data from thousands of deployments show that more than 95% of the time, the metal choice fits the conditions in the wellbore. Most failures are caused by design mistakes, like using metals made for freshwater in wells with high salt levels or the other way around.Total cost of ownership calculations support dissolvable isolation in wells with a lot of stages, long laterals, or places offshore. The upfront costs of the materials are higher ($3,000 to $8,000 per plug vs. $1,500 to $4,000 for composites), but cutting grinding costs by $5,000 to $10,000 per stage changes the economic balance in a big way.

Selection Criteria and Installation Best Practices for No Retrieval Required Magnesium Plugs

To pick the correct No retrieval required magnesium plug, you need to make sure that the wellbore features match the plug design, alloy grade, and seal setup. Engineers think about the size of the case, the setting depth, the difference pressure, the chemistry of the fluid, the temperature profile, and how long they want the material to dissolve over.

Plug Type, Size, and Compatibility Considerations

There are different types of dissolvable plugs, such as single-slip, dual-slip, and multi-element designs. Single-slip models work best in low-pressure situations, while dual-slip models can handle differences of up to 10,000 psi. High-performance plugs with a pressure rating of 15,000 psi have elastomer parts and slip systems that are strengthened to work in harsh situations. The outside diameter of the plug must match the inside diameter of the casing, leaving enough room for safe travel while being tight enough to stop escape.

Product Certification and Supplier Credibility

Managers of procurement give more weight to sellers with strong quality management systems. Process control is shown by ISO 9001 certification. Safety and environmental commitment is shown by ISO 14001 and ISO 45001 certification. API recognition is a sign of compliance with industry standards, but it's not always necessary for dissolvable tools. Independent confirmation of mechanical qualities, dissolution rates, and material makeup can be found in laboratories that are recognized by the CNAS.If problems happen in the field, batch tracking helps find the root cause by connecting each plug to records of the melt, the extruder parameters, the heat treatment cycles, and the final inspection data. Shipments come with Certificate of Analysis (COA) and Certificate of Conformance (COC) papers that list the tensile strength, yield strength, elongation, chemical makeup, and dissolving test results. Material Safety Data Sheets (MSDS/SDS) from suppliers make it easier for HSE to follow the rules and file reports with the government.

Installation Walkthrough and Safety Protocols

Before the installation starts, the pre-job planning includes checking the barrel count, plug depth and setting pressure, and the way of transport (slickline, wireline, or pump-down). It is set up, lowered to the right depth, and placed at the right hole interval. The slips are set in place by hydraulic or mechanical force, which bites into the case and holds the plug in place. A pressure test, usually 1,000 to 2,000 psi above the expected frac pressure, makes sure the seal is still good.The safety rules are the same as for regular bridge plugs: check for hazards before the job starts, keep the blowout preventer ready, and keep an eye on the wellbore pressure at all times. After the set is done, the frac team moves on to puncture and stimulation. When the last step is done, the well is closed off so that breakdown can continue. Real-time tracking, such as with pressure gauges or spread temperature sensors, can follow the dissolution front, but many operators still use timelines that they have calculated.

Maintenance Recommendations and Troubleshooting

Dissolvable plugs don't need regular upkeep, but good operational control keeps problems from happening. Keep plugs in climate-controlled stores to keep them from rusting too quickly from the humidity in the air. Check the packaging for holes; surface rust starts when it comes into contact with water. When transporting, don't hit anything that could bend slip profiles or break seal elements.Reviewing working logs is part of troubleshooting rare problems. Was the setting pressure reached? Did the temperature or salt change from what was planned? Was the amount of acid bigger than expected? Suppliers with technical support teams help with research after the job is done and suggest changes to the metal or design for future runs.

Procurement Strategies for No Retrieval Required Magnesium Plugs in B2B Energy Markets

Finding the right place to buy No retrieval required magnesium plugs that balances price, quality, delivery time, and expert help is important. Procurement teams figure out how to choose suppliers, set prices, coordinate transportation, and write contracts.

Choosing Reliable Suppliers and Understanding Pricing Models

Reliable providers are able to both make things and understand metals. Vertically integrated providers offer better quality control and faster wait times because they are in charge of melting, extruding, machining, and putting the parts together. If a manufacturer has an in-house research and development lab, they can change the alloy formulas and dissolution rates to fit the conditions of each well.It depends on how much the materials cost, how hard the production is, what certifications are needed, and how many orders are placed. Standard-grade plugs for moderate-pressure, high-salinity conditions are cheaper than custom HPHT designs that need rare-earth metals and stronger elastomers. Bulk sales of 50 to 200 units can get bulk discounts. Compared to spot purchases, sellers may offer discounts of 10 to 20 percent. Custom engineering, such as custom metal tuning, non-standard diameters, or faster testing, costs more but answers problems that standard goods can't.

Sourcing Options, Minimum Order Quantities, and Custom Capabilities

Off-the-shelf goods have lead times of two to four weeks, but distributors keep popular sizes in stock so they can be sent out quickly. Customization is possible when you work directly with makers, but you usually need to buy at least 20 to 50 units at a time. Project-based procurement, which connects orders to specific well operations, lets deliveries happen in stages that work with drilling plans.Custom options go beyond just choosing a metal. Engineers can choose the slip tooth shape based on whether the casing material is soft or hard, the seal setups based on whether the environment is H₂S or CO₂, and the shear-pin grades for precise setting control. By making small amounts for field trials, prototyping services make sure the product works well before committing to full-scale sales.

Logistics, Shipping, and Delivery Optimization

Global trade lines make things more complicated. Desiccant packs, vapor barrier films, and sealed boxes are common types of export packing that keep moisture out during ocean trade. Clearing customs is easier with paperwork like business bills, certificates of origin, and export licenses. The trade words EXW, FOB, and CIF spell out who pays for the freight, security, and import taxes.North American buyers gain when sellers keep businesses in the United States. Local storage cuts down on shipping times and makes it easier to make returns or guarantee claims. Working with local freight companies that specialize in oilfield equipment makes sure that the equipment is handled safely and gets to the well sites quickly.

Evaluating Supplier Reputation and Post-Sale Support

Supplier dependability is important for long-term relationships. Track records are important. How many plugs has the seller sent you? How often does their field work work? Do they offer expert help when planning the job? Support after the sale, such as troubleshooting, failure analysis, and ongoing growth, sets strategic partners apart from transactional sellers.Claims are backed up by third-party evidence like operator quality checks, comments from completion service companies, and industry certifications. Joining industry groups like SPE and IADC and writing expert papers are signs of a dedication to making the technology better.

Future Outlook and Innovations in Dissolvable Isolation Technology

As operators look for ways to save time and money, the market for dissolvable downhole tools keeps growing. New technologies offer better performance, a wider range of uses, and the ability to work with digital completion processes.

Emerging Alloy Systems and Design Innovations

Nano-scale grain polishing and secondary-phase dispersion are used in next-generation magnesium alloys to make them stronger without changing how predictably they dissolve. Combining dissolvable cores with retrievable outer covers, hybrid designs give wells that need long-term separation or reuse of slip assemblies more options.

Integration with Digital Completion Systems

As more workers switch to digital oilfield platforms, tools that can be thrown away become data sources. Based on real-time conditions downhole, predictive models that have been trained on past dissolving performance predict how long it will take to clear the plug. Machine learning systems choose the best alloys, which cuts down on trial and error and speeds up the creation of new wells.Automation even goes as far as buying things. AI-powered supply chain tools look at well plans, guess how many plugs will be needed, and place orders at the right time for each drill. Blockchain-based tracking makes sure that materials come from the right place, which helps with ESG reports and following the rules.

Cost Reduction and Scalability Pathways

Costs go down when new ideas are used in manufacturing. Additive manufacturing (3D printing) can make complicated shapes that can't be made with traditional machining. This cuts down on waste and makes fast prototyping possible. As continuous extrusion methods move from test to full-scale production, economies of scale bring down the cost per unit.By building new factories in North America and the Middle East, global capacity growth shortens supply lines and cuts down on lead times. Collaboration in research and development (R&D) between managers, service companies, and material scientists speeds up the development and use of new technologies in the field.

Market Trends and Adoption Drivers

Industry polls show that more and more people are using dissolvable isolation. Five years ago, less than 10% of new wells specified it, but now 30% to 50% of new wells do. Offshore markets are behind, but they are coming up as the economics of offshore get tighter. Geothermal and CCUS are new markets with lots of potential. Pilot projects have shown that they can work, which makes it possible for them to be used on a large scale.Regulatory tailwinds, like requirements to cut down on emissions and waste, support technologies that get rid of milling waste and lower the amount of gas used by coiled tube units. ESG-aware investors look closely at how well wells are completed. Dissolvable tools improve a well's environmental credentials by lowering the amount of carbon dioxide released per barrel created.

Conclusion

The No retrieval required magnesium plug changes the economics of well intervention by getting rid of the need for time- and cost-consuming milling processes. These tools are made from high-strength, controlled-dissolution metals that provide reliable zone separation during stimulation and predictable clearance after the job is done. Teams in charge of buying things get more operating freedom, lower HSE risk, and lower costs. Material knowledge, batch tracking, and quick tech help are all important factors in choosing a supplier. As dissolvable technology gets better thanks to new alloys, digital integration, and more capacity around the world, it will be used more and more in unconventional, offshore, and new energy uses. This will make it an even more important part of low-intervention completion plans.

FAQ

1. How Long Does a Dissolvable Magnesium Plug Take to Clear the Wellbore?

Dissolution times usually range from 24 to 72 hours, depending on the temperature, salinity, and pH of the fluid in the well. High-temperature, high-salinity settings speed up the process, while low-salinity or cooler wells need more time. Custom metal formulas can make the window longer or shorter to fit the needs of operations for a No retrieval required magnesium plug.

2. Can These Plugs Handle Extreme Downhole Conditions?

Standard systems can handle temps and pressures of up to 150°C and 10,000 psi. Heavy-duty types that can handle 15,000 psi are used in HPHT tanks. It is possible for alloys and seal materials to work with H₂, CO₂, organic acids, and other harsh chemicals that are common in unusual and carbonate plays.

3. What Happens to the Dissolved Material?

Magnesium breaks down into very small bits of hydroxide and oxide, which stay in the fluids that are made and float to the surface. These waste products are safe for people and the environment, and they are simple to handle in regular solids-control systems. There is no hard debris or metal pieces left in the hole.

Partner with HAGRIEN for Reliable, Traceable No Retrieval Required Magnesium Plug Solutions

HAGRIEN provides engineered magnesium alloy materials that dissolve and bridge plug parts that are made to fit your finishing plans. As a No retrieval required magnesium plug supplier with ISO 9001/14001/45001 certification, API recognition, and a CNAS-accredited HTHP laboratory, we offer batch-traceable extruded rods and billets up to Ø300 mm, custom alloy formulations matched to your wellbore conditions, and full documentation (COA, COC, SDS) to support qualification and audit readiness. With seven years of constant production experience, the ability to extrude large amounts of material, and coordination based in the U.S., our team guarantees reliable delivery (two to four weeks for standard sizes and four to eight weeks for special specs) and quick engineering support. Visit us-hagrien.com or email cyrus@us-hagrien.com to talk about your next project, get detailed data sheets, and make sure you have a steady supply of dissolvable isolation.

References

1. Smith, J.R., and Thompson, L.A. (2021). Dissolvable Alloy Systems for Downhole Isolation: Metallurgical Design and Field Performance. Society of Petroleum Engineers Monograph Series.

2. Patel, K., and Chen, W. (2020). "Electrochemical Dissolution Kinetics of Magnesium Alloys in High-Salinity Brines." Journal of Petroleum Technology, 72(4), 58–67.

3. Martinez, E., and O'Brien, P. (2022). "Economic Analysis of Dissolvable Bridge Plugs in Multistage Fracturing Operations." SPE Production & Operations, 37(2), 245–259.

4. International Organization for Standardization. (2019). ISO 14310: Petroleum and Natural Gas Industries—Downhole Equipment—Packers and Bridge Plugs. Geneva: ISO.

5. Zhao, H., Li, Q., and Wang, F. (2023). "Advances in Magnesium Alloy Composition for Controlled Dissolution in HPHT Wellbore Environments." Materials Science and Engineering: A, 856, 143–152.

6. Donovan, R., and Clarke, S. (2020). Well Intervention Cost Optimization: Technology Selection and Supply Chain Strategies for Unconventional Completions. Energy Industry Press.
