No Retrieval Required Magnesium Plug in Horizontal Well Operations

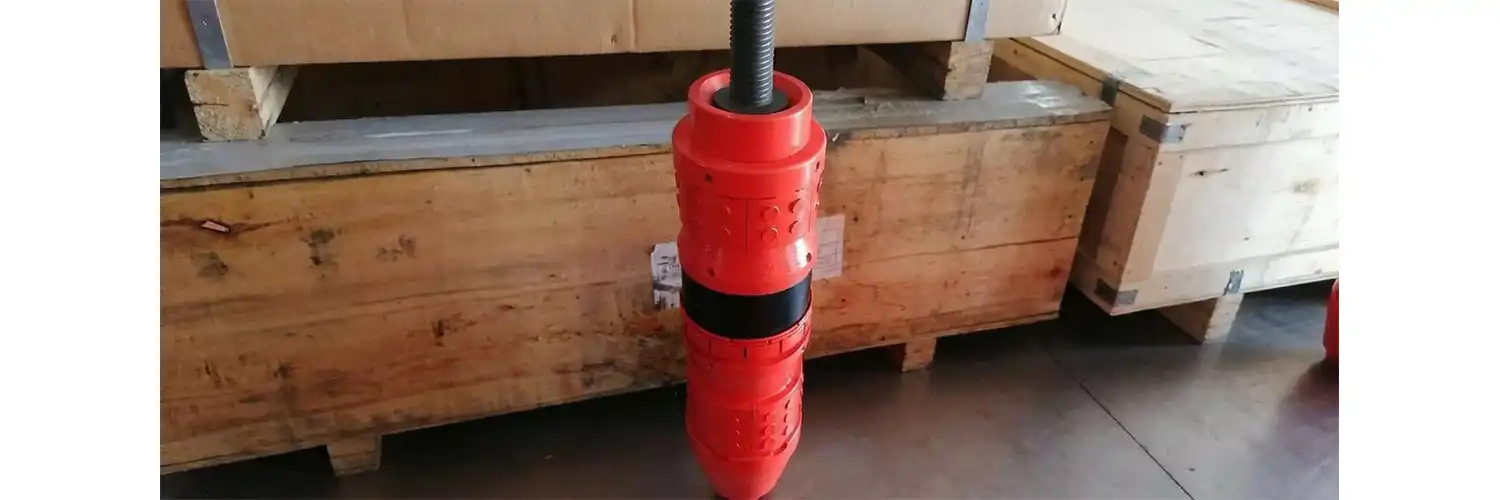

The No retrieval required magnesium plug changes the way operators do multi-stage fracturing and brief zonal isolation when we talk about moving horizontal well completions. Because they are made from magnesium metals that break down naturally in wellbore fluids, these downhole tools don't need to be mechanically milled and intervention time is cut down by a huge amount. This means that completion service providers can go from fracturing to output without having to pay for the expensive drill-out phase. This lowers running costs and reduces wellbore risk. The technology solves a problem that has been around for a long time: how to successfully separate fracturing stages without using standard composite or cast iron plugs that have to be physically removed, which is hard to do and can be dangerous.

Understanding Dissolvable Magnesium Alloy Technology in Horizontal Completions

The Core Mechanism Behind Self-Dissolving Plugs

At the heart of this new idea is a carefully designed magnesium metal matrix that reacts to downhole fluids with controlled galvanic corrosion. Unlike most bridge plugs, which stay in place forever, the No retrieval required magnesium plug is made to keep its structure intact during fracturing operations, even when differential pressures reach 10,000 or even 15,000 psi, and then dissolve completely 24 to 72 hours after the job is done. This process of dissolving is not a random breakdown; it is a controlled chemical reaction that is tuned to the temperature, salt, and fluid chemistry in the wellbore. The tiny magnesium oxide and hydroxide particles that are made are easily carried to the top by the fluids that are created. This leaves a wellbore that is clean and ready for production.

Material Properties That Drive Performance

The makeup of the alloy can be changed to meet practical needs. The magnesium-aluminum or magnesium-rare-earth amounts can be changed by engineers to finetune how fast the material dissolves and how strong it is. This engineerability lets you make changes based on the working window, like when the well is in an area with high-temperature HPHT conditions, low-salinity freshwater zones, or strong acidic fracture fluids. Because magnesium metals aren't very dense, they are easy to machine and pump down during placement. This means that less hydraulic horsepower is needed, which lets the stages go by faster. These features give real benefits, like shorter cycle times, lower operating risk, and better cost efficiency in horizontal wells with longer reaches where coiled tube access is mechanically limited.

Why Horizontal Wells Demand This Technology?

Normal finishing methods have been pushed to their limits by the long lateral lengths found in unusual plays like the Permian Basin and the Eagle Ford Shale. When the horizontal part of a well is more than 3,000 meters, the friction and power limits of milling tools make operations much more dangerous and waste a lot of time. These problems are completely taken care of by dissolvable magnesium plugs. Completion teams can quickly pump several plugs, fracture each stage with faith in zonal isolation, and go straight to flowback without having to plan a separate mill-out operation. For exploration and production businesses running large-scale pad drilling projects, this faster workflow means shorter rig-on-site days, faster time-to-first-production, and better capital efficiency.

Comparing Dissolvable Magnesium Solutions with Traditional Bridge Plug Technologies

Performance Benchmarks: Dissolvable vs. Composite vs. Cast Iron

When buying teams look at bridge plug choices, they find three main types of materials: magnesium alloys that dissolve, composite reinforced plugs, and cast iron designs. Each has its own pros and cons. Composite plugs can handle a lot of pressure and seal well, but they need to be machine-milled, which comes with risks like broken tools, debris buildup, and coiled tubes getting stuck. Cast iron plugs are strong and cheap, but they need to be drilled out very carefully, which takes hours of rig time and creates metal shavings that can get stuck in holes or production lines. The No retrieval required magnesium plug completely avoids these problems because it disappears on time, doesn't leave any trash, and doesn't need any help.

Economic and Operational Decision Criteria

Choosing the best plug technology depends on a number of things, including the difficulty of the well design, the cost of assistance, environmental rules, and the time frame for the project. Magnesium-based dissolvable tools are clearly better in underwater and offshore settings where daily rig costs can go over $500,000. When you get rid of 48 to 72 hours of mill-out time, you save money right away. Onshore operators who don't follow the rules gain from more flexible schedules and less planning with logistics. Being able to do continuous fracturing without having to stop for mill-outs makes better use of crews and cuts the cost of finishing each stage. The total cost of ownership often favors dissolvable magnesium plugs, even if the unit price is higher. This is because they reduce risk in ways like not having to clean out wellbores or fish.

The Validation from Field Applications

Leading service providers have written about cases where dissolvable plug technology cut the time it took to finish by 20 to 30 percent compared to traditional mill-out processes. Field data from horizontal wells in the Marcellus and Bakken formations show that the breakdown performance stays the same even when the temperature and salt change. Third-party tests show that properly built magnesium alloys keep their pressure integrity during the breaking sequence and dissolve in a way that is predictable within the time window that was planned. Field engineers have pointed out other benefits, such as easier handling, less need for surface tools, and higher safety due to the lack of high-pressure milling operations in extended-reach wellbores.

Procurement Considerations for Sourcing High-Performance Dissolvable Plugs

Supplier Evaluation: Certifications and Manufacturing Capabilities

Finding trusted No retrieval required magnesium plug dissolvable magnesium plugs starts with doing a lot of research on the suppliers. Purchasing managers should give more weight to makers with ISO 9001, ISO 14001, and ISO 45001 certifications, which show they follow standards for quality management, environmental responsibility, and worker health. API certification and following standard handling guidelines are two more ways to make sure that the output is always the same. Being able to make extruded bars with a width of up to 300 mm is a key sign of improved extrusion capacity and process control, as it directly affects the consistency of microstructure, dimensional stability, and surface quality from batch to batch. If a supplier offers high-temperature, high-pressure laboratory testing that is approved by the CNAS, they can provide traceable proof data that can help with internal approval and project milestone reviews.

Customization Capabilities and Engineering Support

There are different kinds of dissolvable plugs. Operators who work in specific places, like CCUS projects, geothermal wells, or high-pressure ocean completions, need alloys that are made with specific ingredients and dissolve in specific ways. It is very helpful for manufacturers to be able to change alloy systems and process factors based on working windows, which include temperature, salinity, fluid chemistry, and goal dissolving time. Look for providers that offer joint design services, from prototyping to mass production, and who can help you choose the right materials based on your needs. This engineering-to-spec feature cuts down on the costs of trying things out and speeds up the process from idea to field launch. OEM and ODM support lets companies that make downhole tools use dissolvable materials in their own designs for bridge plugs, packers, and finishing systems.

Pricing Structures, Lead Times, and Logistics

To find the total landed cost, you have to look at more than just the unit price. You also have to look at the shipping speed, the supply of goods, and the trade terms. With normal wait times of two to four weeks, suppliers who keep a safety stock of standard dissolvable magnesium metal bars can help with quick samples and emergency restocking. Timelines may be pushed back to four to eight weeks if custom standards or engineered dissolution windows are needed. This depends on how well the alloys fit, the process specs, and the need for verification tests. For important projects, there should be choices for faster creation. Cross-border buying is easier when trade terms are flexible, like EXW, FOB, or CIF, and North American organizations help with planning. Certificates of Analysis (COA), Certificates of Conformance (COC), and Safety Data Sheets (SDS) are all part of complete documentation packages that make it easier to follow internal buying policies and legal frameworks.

Installation Best Practices and Maintenance Guidelines

Even though dissolvable plugs get rid of the need to retrieve them, they still need to be installed correctly for the best performance. The pump-down speeds should be set so that the closing parts don't get damaged or set too quickly. To make sure that the shear-pin works properly and the seal stays intact, the hydraulic setting pressures must match the manufacturer's instructions. Pressure tracking during fracture makes sure that the stage is isolated and that the plug is still doing its job. After the fracture, the dissolution timeline should be compared to the conditions inside the wellbore. Operators can take fluid samples to check the percentage of magnesium ions, which shows how far along the dissolution process is. When procurement teams, field workers, and suppliers talk to each other clearly, they can make sure that everyone is on the same page about working factors and reduce the chance of unexpected performance changes.

Case Studies and Industry Applications Demonstrating Proven Value

Extended-Reach Horizontal Wells in Shale Plays

A big company in the Permian Basin used dissolvable magnesium plugs in 20 well pad drilling programs with an average length of 3,500 meters between each hole. The finishing team cut the average time it took to finish a well by 36 hours by getting rid of mill-out operations. This saved the program $1.8 million in direct costs. The expected dissolution performance made the change from fracturing to production go smoothly, and there were no reports of wellbore jams or problems with the tools. After the job was done, fluid research showed that the engineered metal had completely broken down within 48 hours. This proved that it worked well in high-salinity formation brine conditions at temperatures close to 120°C.

Offshore Deepwater Completions: Cost and Safety Impact

In the Gulf of Mexico, an offshore operator used No retrieval required magnesium plug dissolvable bridge plugs in an underwater tieback finish where rig day rates were more than 600,000.Bycancelingtwoplannedmill−outruns, the operators saved 60 hours of rig time,whichisthesameas600,000.Bycancelingtwoplannedmill−outruns,theoperatorsaved60hoursofrigtime,whichisthesameas1.5 million, and didn't have to deal with the problems that come with running coiled tubing units offshore. The high-pressure rate (15,000 psi) of the special magnesium alloy plugs made sure that the stage would stay isolated during stimulation. After the fracture, the dissolution happened as planned, without any need for help or confirmation. Safety measures also got better, with no accidents involving milling or managing the waste.

Geothermal and CCUS Applications: Emerging Frontiers

Dissolvable magnesium technology is being used in new energy fields as well as oil and gas. Advanced magnesium alloys are good for geothermal makers who work with high-temperature sources because they are stable at high temperatures and dissolve slowly. For projects that collect and store carbon, areas need to be temporarily separated while injection operations take place. Dissolvable plugs work well as barriers that dissolve when needed, so expensive recovery operations in deep, high-pressure injection wells are not needed. The different uses shown here show how flexible and adaptable magnesium-based dissolvable tools are in a range of underground conditions.

Conclusion

Dissolvable magnesium plug technology has changed horizontal well completions by getting rid of the need for artificial help, shortening cycle times, and making operations safer. The No retrieval required magnesium plug has a good mix of high mechanical strength during fracturing and reliable dissolution after the job is done. This lets workers go from stimulation to production without any problems. Suppliers who offer engineerable alloy systems, scalable output, and detailed paperwork to support approval and tracking are good for procurement teams. As the industry moves toward longer laterals, tighter margins, and more complicated subsurface environments, unconventional, offshore, geothermal, and CCUS uses will still find dissolvable magnesium tools to be very useful.

FAQ

1. What factors influence dissolution time in varying well conditions?

Temperature in the wellbore, fluid salinity (chloride content), and pH all play a big role in how fast something dissolves. Higher temps and fluid salinity speed up the galvanic corrosion process, which cuts down on the time it takes to dissolve. Operators can choose alloy grades that work best in certain working windows. For example, active alloys for low-salinity settings keep dissolving steadily even in fresh water, while normal grades work best in brines with a lot of salt.

2. Are dissolvable magnesium plugs compatible with acidic fracturing fluids?

Of course. Acid-frac activities will speed up the rate of dissolution, so engineers need to carefully figure the hold time to make sure the plug works well during the stimulation phase. Suppliers can give dissolution graphs for different acid amounts, which lets you know exactly when the plug will stop working.

3. Do dissolved plugs leave residues that could obstruct production?

Microscopic magnesium oxide and hydroxide particles are made during the dissolving process. These particles stay in the fluids that are made and are easily carried to the top. Tests done by a separate lab show that these bits don't build up or get in the way of perforations, production tubes, or surface equipment.

Partner with HAGRIEN for Reliable Dissolvable Magnesium Plug Solutions

Picking the right No retrieval required magnesium plug provider is a smart choice that affects how quickly the project is finished, how safe it is to run, and how much it costs. HAGRIEN offers provable, verifiable, and scalable dissolvable magnesium alloy solutions by vertically integrating manufacturing processes such as melting and extruding alloys and precise cutting. They also have a lot of experience with application engineering. Our 3,600-ton and 5,600-ton extrusion presses make big bars (up to Ø300 mm) that are consistent from batch to batch, stable in size, and have a good surface quality that lowers the risks of cutting them later.

We back paperwork that is ready for qualification, full traceability, and audit preparation with ISO 9001/14001/45001 certifications, a CNAS-accredited HTHP laboratory, and API recognition. For standard sizes, lead times are usually between two and four weeks, but faster choices are possible. As a reliable maker of magnesium plugs that don't need to be retrieved, HAGRIEN can meet your needs for quick samples, large orders, or custom alloy systems designed to work within your working window. Contact cyrus@us-hagrien.com.

​​​​​​​References

1. Society of Petroleum Engineers, "Dissolvable Frac Plugs: Technology Overview and Field Performance Analysis," SPE Production & Operations Journal, 2021.

2. American Petroleum Institute, "API Specification 11D1: Packers and Bridge Plugs," API Publishing Services, 2020.

3. International Organization for Standardization, "ISO 14310: Petroleum and Natural Gas Industries—Downhole Equipment—Packers and Bridge Plugs," ISO Standards Catalogue, 2019.

4. National Association of Corrosion Engineers, "Corrosion and Material Selection for Oil and Gas Production Environments," NACE International Technical Report, 2020.

5. Journal of Petroleum Technology, "Advances in Dissolvable Alloy Materials for Completion Tools," JPT Technical Papers, 2022.

6. Offshore Technology Conference, "Offshore Deepwater Completion Innovations: Case Studies from the Gulf of Mexico," OTC Proceedings, 2023.
