Principle and structure of Dissolvable bridge plugs

A dissolvable bridge plug is a downhole isolation tool built from engineered degradable materials—most commonly magnesium alloys—that holds pressure during hydraulic fracturing and then dissolves completely in wellbore fluids. Unlike cast-iron or composite plugs that require costly coiled-tubing mill-out runs after stimulation, a dissolvable bridge plug removes itself through a controlled electrochemical reaction triggered by brine contact and bottom-hole temperature. This self-removal mechanism reduces intervention costs, shortens the completion-to-production window, and eliminates the risk of large debris in the wellbore.

Understanding the Principle of Dissolvable Bridge Plugs

How Dissolution Is Triggered

Galvanic rusting is what makes the breakdown happen. When a magnesium-alloy dissolvable bridge plug comes into touch with an electrolyte, usually formation brine or KCl/NaCl fluid, an electrochemical reaction speeds up the breakdown of the material. The rate of the reaction speeds up with temperature. At 40°C, the process moves slowly, but at 150°C, it moves much more quickly. To set an exact degradation window, engineers choose the grade of metal and the chemistry of the fluid. This window is usually between 24 hours and 14 days.

Pressure Integrity During the Frac Window

The tool must be able to consistently hold differential pressure before dissolution can start. The highest pressure that HAGRIEN dissolvable bridge plugs can handle is 15,000 psi (105 MPa), which is enough for most unconventional shale completions in North America. The hold period is built into the alloy system. When the frac job is done and the hold time is up, dissolution speeds up and the plug slides out of the wellbore without any help from a machine.

Why This Outperforms Conventional Plug-and-Perf？

For mill-out, a standard cast-iron or composite plug needs a specialized coiled-tubing run. This adds time, cost, and mechanical risk to the rig. In a 60-stage lateral, the cost of action goes up very quickly. With a dissolvable bridge plug, this step is not needed at all. This lets operators get wells into production faster and lower the total cost per stage. Field data from North American operators shows that interventions save between $50,000 and $150,000 per well, based on the number of stages and the length of the well.

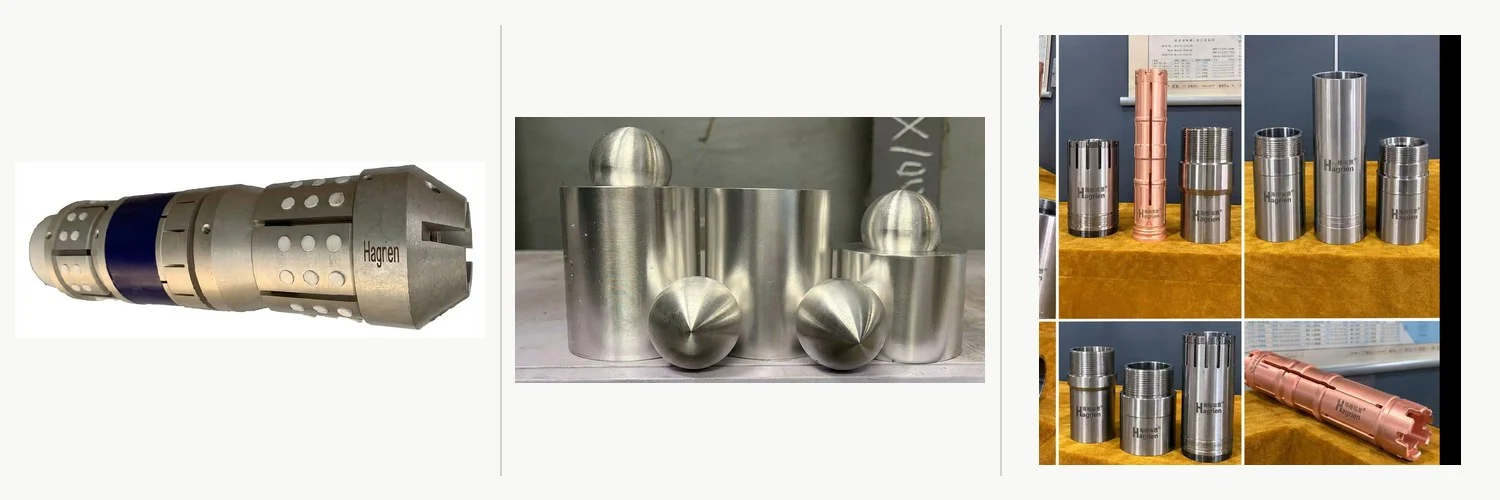

Structural Components and Materials of Dissolvable Bridge Plugs

Plug Body and Mandrel

The mandrel is what holds the dissolvable bridge plug together. The mandrel in HAGRIEN's all-metal design is carefully made from designed magnesium alloy bar stock that is extruded in-house on 3,600-ton and 5,600-ton presses with a reach of 300 mm. From melting the metal to finishing the job, this closed-loop production method gives engineers direct control over the microstructure, the range of dimensions, and how the material dissolves. There are no rubber packing elements or polymer inserts used, so there is no leftover debris that could get in the way of equipment further down the line.

Slip and Setting System

The slip piece sticks to the wall of the case when the plug is set hydraulically or by cable. Slips on HAGRIEN's dissolvable bridge plug are made to bite evenly into high-grade casing, including P110 and Q125. Anti-preset mechanisms stop setting by accident during pump-down in extended-reach laterals deeper than 3,000 m. Because shear pins are set to certain forces, the finishing engineer has precise control over when and where the plug fits.

Dissolution Core and Alloy Selection

The most important design element is the alloy makeup. The magnesium alloy system is changed by HAGRIEN engineers based on five well-condition parameters: the size of the casing, the temperature at the bottom of the hole, the fluid salinity (0–40,000 ppm TDS), the target hold time, and the required dissolution window. Every batch of products goes through testing in an HPHT lab that is recognized by the CNAS. This creates traceable dissolution-rate data instead of generic catalog specifications. This level of documentation directly meets the requirements for traceability that completion engineers and OEM R&D directors often ask for.

Performance Comparison: Dissolvable Bridge Plugs vs. Traditional Solutions

Against Mechanical Retrievable Plugs

Retrievable plugs need a special workover run, which increases the risk of a pipe getting stuck and delays the project's finish. Mechanical milling can damage the main barrier during high-stage-count completions or re-fracturing programs on wells that are already old and have casing that is getting old. A dissolvable bridge plug avoids both of these problems because it keeps the pressure on during stimulation and then automatically clears the wellbore. This protects the integrity of the case and cuts down on the time that the well can't be used.

Against Cement Plugs

Cement plugs provide reliable zone isolation, but they need to be drilled out and create particles that can block perforations and production. They also don't have the adaptability of a breakup window that can be changed. A bridge plug that dissolves lets the completion team choose exactly how long isolation is needed. After that, the plug can be thrown away, leaving no cement column to drill through and no solids remaining near the holes.

Buyer Consideration: Matching the Tool to the Well

Five things must be matched in order to choose the right dissolvable bridge plug: the casing ID, the BHT, the fluid salinity, the needed hold pressure, and the goal dissolving time. Application engineering from HAGRIEN helps with this choice process by giving a setup suggestion based on lab data instead of a general model number from a catalog. When completion engineers look at new suppliers, specification risk is one of the main things that bothers them. This method lowers that risk.

Practical Applications and Procurement Insights for B2B Clients

Multi-Stage Hydraulic Fracturing in Unconventional Wells

When working with long horizontal wells and the plug-and-perf method, the dissolvable bridge plug really shines. In operations in the Permian Basin or Marcellus, stage counts often go over 60. Getting rid of a coiled-tubing mill-out run after stimulation can cut the time from finish to first production by days. The slim-OD and large-ID versions of HAGRIEN cover programs with limited access, where regular tools can't run or be recovered.

Re-Fracturing and Deepwater Applications

A dissolvable bridge plug is helpful for re-frac programs on mature wells because milling in damaged casing is very dangerous. The plug offers temporary separation without having to be taken out mechanically. Getting an intervention vessel to a deepwater or subsea completion is expensive—often more expensive than the completion itself. A self-removing plug gets rid of that need for movement completely, which makes the economics clear.

Procurement Process and Supplier Qualification

Buying dissolvable bridge plugs from a business usually takes four to nine months: sending in well-condition data; making a technical proposal and test plan; validating samples and doing tests on them; conducting a field trial; and getting the vendor on an approved list. A organized qualification package from HAGRIEN includes a COA/COC, batch tracking records, HPHT lab results, and ISO 14310 design verification documents. This package helps with this cycle. OEM and private-label partnerships are both possible, and standard practice is to sign NDAs and draw confidentiality agreements.

Environmental Impact and Future Trends in Dissolvable Bridge Plug Technology

Reduced Wellbore Waste and Intervention Footprint

Every coiled-tubing mill-out run creates metal swarf, uses diesel, and needs fluid handling at the surface level. That trash stream can be stopped by a bridge plug that breaks down into tiny pieces smaller than 100 microns. The bits are taken away by flowback fluids, which don't hurt the pumps or valves. This makes each well less harmful to the environment.

Material Innovation and Smart Monitoring

SPE-published research is making alloy systems that react more precisely to small temperature and salinity windows. This makes it easier to predict how things will dissolve in freshwater or low-salinity environments, where salt pills have usually been needed. Digital downhole monitoring, which combines pressure monitors with dissolution models, is a new field that could let workers check in real time that the plug is clear without having to physically remove it.

Market Outlook

Along with unconventional drilling, the market for dissolvable bridge plugs in North America keeps growing. All-metal dissolvable tools are being asked for more and more by independent operators who run 10 to 200 wells per year to cut down on repair costs and improve per-stage economics. Long-term framework deals are most likely to be won by suppliers who can offer engineered setups with traceable lab data instead of off-the-shelf model numbers.

Conclusion

With a dissolvable bridge plug, the mill-out step in plug-and-perf completions is replaced by a controlled material degradation process. This cuts down on the cost of involvement and speeds up the time it takes to start production. To choose the right tool, you need to match the alloy's chemistry to five well-condition parameters and check its performance using lab data that can be tracked, not just what the catalog says it can do. The integrated material-to-tool manufacturing method, CNAS laboratory validation, and engineering-to-specification power of HAGRIEN give completion engineers the control over paperwork and configuration they need to confidently qualify a provider.

FAQ

1. What triggers dissolution in a magnesium-alloy dissolvable bridge plug?

When the magnesium alloy comes into contact with an electrolyte that contains chloride, like formation brine or KCl completion fluid, it starts to dissolve. The rate of the electrochemical reaction is affected by how salty the fluid is and how hot the bottom of the hole is. In places with low salt levels, workers will sometimes pump a salt pill to start the reaction within the target time frame.

2. How long does a dissolvable bridge plug hold pressure before dissolving?

The tools made by HAGRIEN can hold up to 15,000 psi for a set amount of time. Standard configurations cover windows from 24 hours to 14 days, which are adjusted based on the alloy chosen and the well-condition parameters given during the specification process.

3. Will residual particles damage production equipment?

No, the all-metal design breaks down into particles that are usually smaller than 100 microns. These particles are small enough to be taken out in flowback fluids without damaging pump impellers, valves, or artificial-lift equipment.

4. Can the plug be used in extended-reach horizontals beyond 3,000 m?

Yes. The anti-preset shear-pin calibration and slim-OD versions are made for extended-reach and restricted-casing projects where pump-down forces and the shape of the wellbore cause a risk of pre-setting.

5. Is ISO 14310 validation documentation available?

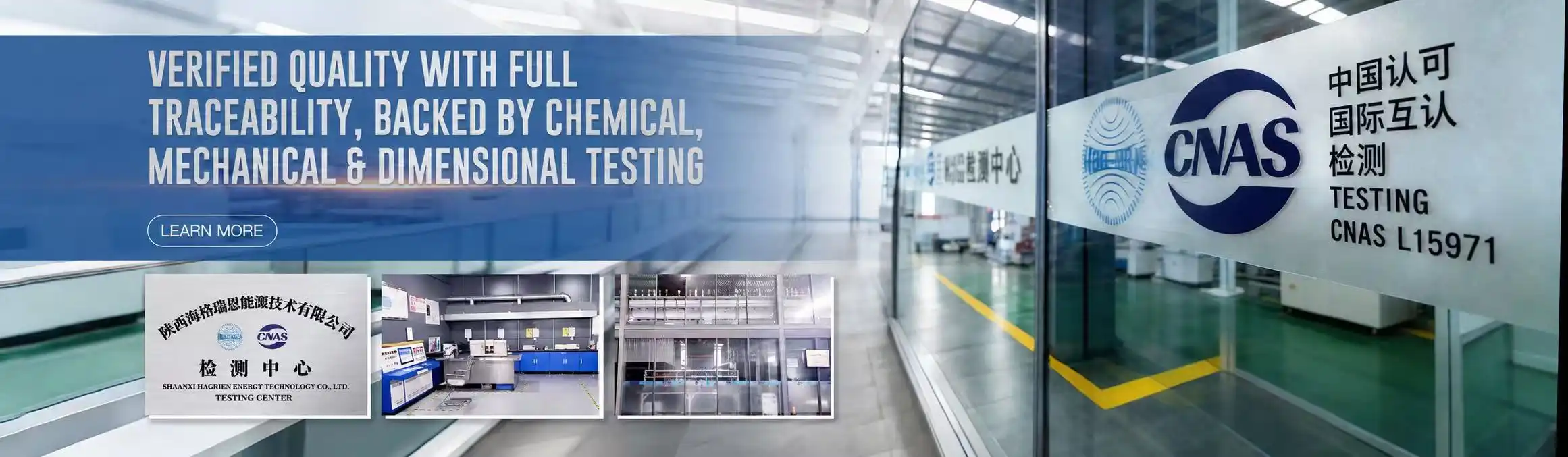

To help with supplier qualification and internal engineering reviews, HAGRIEN gives full COA/COC traceability packages, batch-level CNAS lab reports, and ISO 14310 design verification documentation.

Partner with HAGRIEN for Your Next Dissolvable Bridge Plug Program

HAGRIEN has been making and selling dissolvable bridge plugs for a long time and has ISO 9001/14001/45001 certification, as well as API recognition. We give you designed designs that are perfect for your casing size, temperature, salinity, hold time, and dissolution window. These come with full batch tracking and paperwork that is ready for approval. Lead times for standard items are 2–4 weeks, and lead times for custom items are 4–8 weeks. There are OEM and private-label options to choose from. You can send your well-condition data and ask for a technical proposal to our North American team at cyrus@us-hagrien.com or by visiting us-hagrien.com.

References

1. Society of Petroleum Engineers (SPE) — SPE-194367-MS: Field Performance of Dissolvable Frac Plugs in Multi-Stage Horizontal Completions, 2019.

2. Society of Petroleum Engineers (SPE) — SPE-179121-MS: Evolution of Dissolvable Materials for Wellbore Applications, 2016.

3. Journal of Petroleum Technology — "All-Metal Dissolvable Frac Plugs: Operational Learnings from the Permian Basin," JPT, 2021.

4. ISO — ISO 14310:2008: Petroleum and Natural Gas Industries — Downhole Equipment — Packers and Bridge Plugs, International Organization for Standardization, 2008.

5. Society of Petroleum Engineers (SPE) — SPE-212356-MS: Magnesium-Alloy Dissolution Kinetics Under Varying Salinity and Temperature Conditions, 2023.

6. World Oil — "Advances in Degradable Downhole Tool Materials for Unconventional Completions," World Oil, 2022.
