The Applications of Dissolvable Magnesium Alloy Plug

Well finishing tactics in the oil, gas, and new energy sectors have been completely changed by the use of Dissolvable Magnesium Alloy Plug technology. After closing the wellbore, these designed downhole tools dissolve totally in the fluids that flow through it. This gets rid of the need for expensive mechanical milling and speeds up the time it takes to start production. Using controlled electrochemical corrosion, Dissolvable Magnesium Alloy Plugs create brief zones of separation during horizontal well completions and multistage fracturing. They then dissolve automatically, leaving a full-bore production path without any need for human involvement. This feature solves some of the most important problems that operators face, like the high costs of post-frac interventions, the mechanical risks that come from cutting waste, and long production delays.

Understanding Dissolvable Magnesium Alloy Plugs

What Are Dissolvable Magnesium Alloy Plugs?

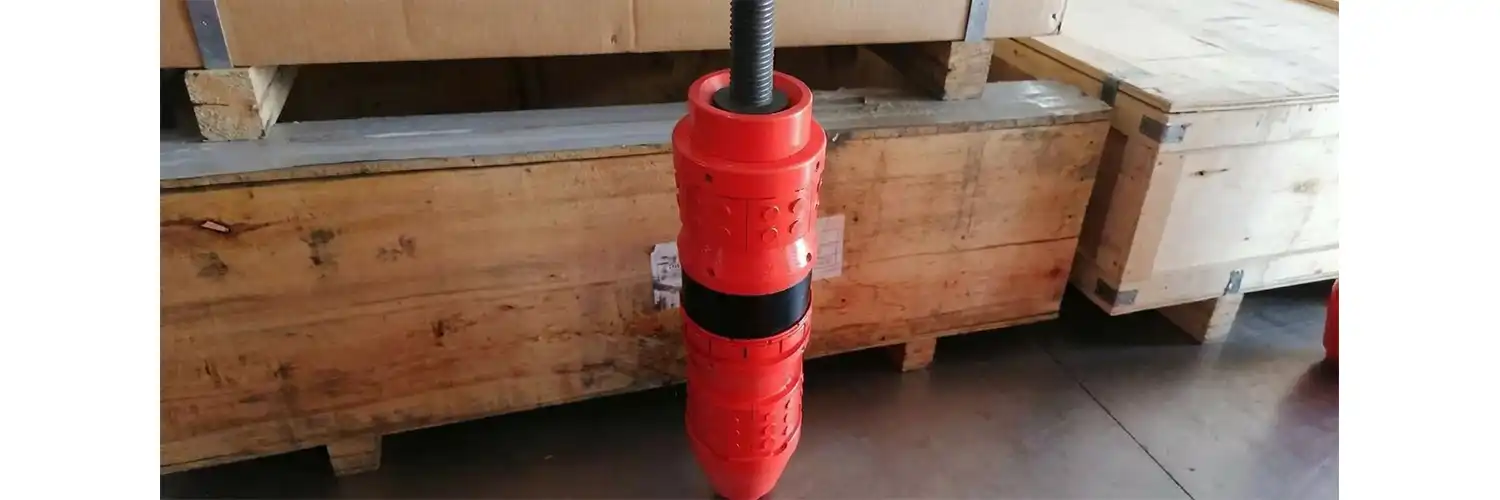

A Dissolvable Magnesium Alloy Plug is a high-performance tool made from special magnesium-based matrix materials that are used to isolate wellbores. Unlike regular cast iron or alloy bridge plugs that need to be mechanically drilled out, these plugs are made to break down in a predictable way when exposed to potassium chloride or brine solutions for set amounts of time. The technology uses magnesium's natural electrical qualities to make a seal that works well during high-pressure pumping operations. After the job is done, the seal goes away completely through controlled corrosion. For this designed degradation process to work, the metal must have the right amount of aluminum, zinc, manganese, and rare earth elements, and the grain boundaries and microstructure must be carefully controlled. As a result, a tool was made that combines compressive strength (able to withstand differential pressures of up to 70–105 MPa at temperatures ranging from 40°C to 180°C) with predicted dissolution rates that can last anywhere from 24 hours to 14 days and are set to specific temperature and salinity patterns.

How Dissolvable Plugs Function in Downhole Environments

Galvanic weathering, which is sped up by chloride ions in formation brines and finishing fluids, is what breaks down the rock. When the Dissolvable Magnesium Alloy Plug comes into touch with these electrolytes, a controlled electrochemical process starts that slowly breaks down the metal structure into magnesium ions and small hydroxide particles that can dissolve in water. How fast something breaks down depends on temperature, fluid chemistry (especially chloride content and pH), and touch time. Modern versions let engineers finetune dissolution windows by changing the alloy's makeup and adding temporary coatings that stop premature corrosion during pump-down operations. These coatings usually provide a 6–12 hour safe window before full-scale degradation starts. With this level of accuracy, workers can set up multiple fracturing steps in a row without worrying about failures or long wait times before output can begin.

Comparing Dissolvable Magnesium Alloy Plugs with Traditional Alternatives

To get rid of traditional steel and cast iron plugs, you need to use coiled tubing units and milling kits. This takes more time and comes with technical risks like tool failures, stuck pipes, and damage to the formation from metal debris. Even though composite plugs can be drilled, they still need special clean-out runs and make waste that needs to be thrown away. Alternatives to zinc alloys can dissolve some things, but they don't always have the mechanical strength needed for high-pressure fracture. Dissolvable Magnesium Alloy Plugs don't have these problems: they're very light (about 1.8 g/cm³), which makes them easier to use in long-reach horizontal laterals; they're also very flexible, which means they attach well without breaking; and when they dissolve completely, they leave no residue. The environmental and economic benefits are strong: less time spent on the rig, lower costs for action, less risk to health and safety, and faster cash flow from faster output.

Core Applications of Dissolvable Magnesium Alloy Plugs

Multistage Fracturing in Unconventional Shale Gas

Horizontal wells that are looking for shale gas and tight oil formations usually have 50 or more fracking steps. To get high-pressure slurry into the goal zone, each stage needs to be temporarily shut down. When Dissolvable Magnesium Alloy Plugs are used as bridge plugs, coiled tubing grinding runs after the fracture are not needed. This cuts "time-to-first-gas" by several days and saves hundreds of thousands of dollars per well. When the plugs are pressed against the tube wall, they can withstand fracture pressures of more than 10,000 psi. When flowback fluids reach them, the plugs dissolve automatically, allowing full-bore access to be restored without any help from an operator. This "set-and-forget" method is now common in the US's big shale plays, where owners focus on saving money on capital and quickly ramping up production.

Deepwater and Offshore Completions

Offshore rig rates can be more than $500,000 per day, which means that every hour of action time is very expensive. Deepwater completions also have to deal with limited deck room, delays caused by bad weather, and strict environmental rules. Dissolvable Magnesium Alloy Plugs lower the total cost of ownership by getting rid of the need for a clean-out run after the frac. The impact on the environment also decreases because there is less industrial waste to move around and get rid of, and there are fewer trips that use more fuel and produce pollution. Operators get more control over their schedules, lower their risk of health and safety issues, and speed up the start of production, all while meeting government rules for reducing waste and maintaining the purity of the wellbore.

Temporary Zonal Isolation and Horizontal Well Completion

In addition to breaking, Dissolvable Magnesium Alloy Plugs play very important roles in isolating zones during cementing, wellbore tests, and specific stimulation treatments. In horizontal well completions, these tools separate parts of the lateral while the liner is being installed. This lets the cement be placed precisely and keeps the cement from spreading from one zone to another. When the sealing is done, the plugs break down, letting the production fluids flow freely. This feature is especially useful in wells with long reach and complicated completions, where mechanical recovery would not work or would not be possible. Developers of geothermal energy also use Dissolvable Magnesium Alloy Plugs to temporarily separate areas during digging and stimulation. Carbon capture and storage (CCUS) projects also use the technology to handle high-pressure injection operations in difficult underground environments.

Emerging Applications in New Energy and Specialized Projects

Dissolvable Magnesium Alloy Plugs can be used in many different situations, such as geothermal energy, digging, and building water wells. Geothermal users need high-temperature separation tools that can handle the harsh HPHT conditions that happen during reservoir stimulation. These needs are met by Dissolvable Magnesium Alloy Plugs, which offer reliable sealing and expected decline without needing expensive maintenance in harsh or remote areas. For example, temporary sealing of exploring boreholes and controlled water management in underground activities are both used in mining. As carbon capture projects spread around the world, Dissolvable Magnesium Alloy Plugs offer a safe way to handle multiple entry zones and make sure the wellbore stays intact over time.

More and more case studies from top service providers show that they can improve performance in a measured way. Operators say that there is less time spent on non-productive tasks, lower costs per stage of finish, and better production performance. Performance data proves that Dissolvable Magnesium Alloy Plugs are reliable and cost-effective in a variety of working environments. This gives procurement teams and field workers more trust.

Choosing the Right Dissolvable Magnesium Alloy Plug for Your Needs

Evaluating Corrosion Rates and Degradation Timelines

Matching the dissolving profile to well-defined conditions is the first step in choosing the right Dissolvable Magnesium Alloy Plug. Temperature, salinity (found by measuring total dissolved solids or chloride content), and pH of the stream all have a direct effect on how fast rusting happens. Wells that produce hot, salty brines speed up the breakdown process. Cooler, fresher places, on the other hand, slow it down. Engineers have to set goal dissolution windows, which are usually between 24 hours and 14 days for longer tests or tasks involving more than one well pad. Material sources like HAGRIEN offer dissolution windows that can be engineered. These windows let you tune the alloy makeup and grain structure to get consistent performance. Solicitation teams should ask for coupons to be tested for dissolving consistency in virtual wellbore fluids. This way, they can make sure that the degradation curves match what is written in technical datasheets and what is needed for operations.

Performance Benchmarks and Material Quality Control

The most important performance indicators are compressive strength, seal integrity, and structure consistency. High-pressure seal testing makes sure that the Dissolvable Magnesium Alloy Plug can keep the rated pressure at the highest design temperature for a certain amount of time, usually 24 to 48 hours. Using scanning electron microscopy (SEM) and energy dispersive X-ray spectroscopy (EDX) to look at the microstructure shows that the secondary phases that cause rust are spread out evenly. Non-destructive testing (NDT) methods, like ultrasound or X-ray checking, find flaws or holes in the casting that could weaken the structure when put under stress. Suppliers with a good reputation will give you batch tracking, certificates of analysis (COA), certificates of conformance (COC), and safety data sheets (SDS) to help with seller qualification, internal checks, and keeping track of project milestones.

Logistics, Lead Times, and Customization Options

Professionals in procurement have to deal with minimum order amounts, shipping schedules, and the ability to make changes. Standard sizes that have a set safety stock usually ship within two to four weeks, but this depends on the scope of the check and the paperwork that needs to be filled out. Custom specs, like designed dissolution windows, non-standard diameters, or special working conditions, take 4 to 8 weeks to complete. This includes matching the metal to the process, writing down the process specifications, and testing to make sure they are correct. For important projects, we offer rushed production services, but only if we have enough capacity and raw materials. Buying from recognized companies with ISO 9001, ISO 14001, and ISO 45001 certifications, as well as API recognition and CNAS-accredited HPHT labs, makes sure that you're following industry standards and lowers supply risk by giving you more stable supply capacity and predictable delivery times.

Environmental and Safety Benefits of Dissolvable Magnesium Alloy Plugs

Eco-Friendly Corrosion and Reduced Intervention

By producing recyclable and non-toxic waste, Dissolvable Magnesium Alloy Plugs help the earth in a real way. When the alloy breaks down, it releases magnesium ions that can dissolve in water and tiny metallic hydroxides particles. These don't harm the formations of the pool and are easily moved by production fluids without blocking flow. This is very different from cutting debris from steel or cast iron plugs, which can damage downhole equipment, needs a lot of movement to get rid of, and creates solid waste that needs to be thrown away. By not requiring any mechanical help, Dissolvable Magnesium Alloy Plugs lower the carbon footprint of moving coiled tubing units, reduce the surface footprint and the difficulties of moving equipment, and lower the total energy use per finished well.

Enhanced Operational Safety and Regulatory Compliance

When you use a mechanical plug recovery system, you run the risk of high-pressure activities, getting a pipe stuck, and being exposed to dangerous well conditions. Dissolvable Magnesium Alloy Plugs get rid of all of these risks, making the crew safer and cutting down on time spent doing nothing. Regulatory bodies are increasingly looking for tools that have less of an effect on the environment and are easier to use. Dissolvable Magnesium Alloy Plugs meet industry safety standards and government approvals, which helps companies meet their environmental responsibility obligations and social license to operate. Long-term benefits of managing assets include lower operating costs, longer machine life, and better environmental friendliness, which fits with the movement in the industry toward more responsible resource mining.

Procurement Best Practices for Dissolvable Magnesium Alloy Plugs

Sourcing Strategies for Global Buyers

Finding suppliers with integrated skills, such as knowledge of materials, control over production, and application tech support, is the first step to efficient buying. Wholesale wholesalers give you access to standard stock, while custom makers let you get solutions that are designed to fit your specific needs. To negotiate bulk prices, you need to know how the market works, how flexible your wait time needs to be, and how much you are willing to buy. Coordinating export packing, paperwork (COA, COC, SDS), and flexible trade terms (EXW, FOB, CIF) is part of managing supply chain operations. North American planning through regional organizations speeds up the clearance of customs, cuts down on transit times, and offers technical help at the local level.

Key Considerations for Long-Term Supply Reliability

To build trusting relationships with suppliers, you need to do a lot of research, like checking manufacturing sites, looking over quality management systems, and making sure certifications are real. Procurement teams should give more weight to providers with a history of reliability, which can be shown by years of production experience, customer reviews, and case studies that have been formally recorded. With about seven years of ongoing production and approval experience since 2019, HAGRIEN is a great example of this dependability. The company has closed-loop capabilities that include making the materials, extruding (up to Ø300 mm diameter bars), precise cutting, and keeping records that can be tracked. This makes sure that each batch is the same and that the company is ready for audits. Suppliers who give corrective actions like CAPA, quick expert help, and expedited choices lower the risks of project performance and support long-term frameworks.

Conclusion

Dissolvable Magnesium Alloy Plugs are a huge step forward in well completion technology. They have clear practical, economic, and environmental benefits for the oil, gas, geothermal, and new energy sectors. These designed tools solve important problems in the industry by getting rid of needless and expensive mechanical work, speeding up the start of production, and lowering the risk of health and safety issues. When purchasing managers and engineers use smart sourcing strategies like focusing on certified sources, strict quality control, and reliable supply lines, their companies can benefit from increased efficiency, lower costs, and better environmental impact. As the energy sector moves toward lower-carbon processes and responsible resource development, Dissolvable Magnesium Alloy Plugs will become even more important in helping to reach those goals.

​​​​​​​

FAQ

1. Does the Dissolvable Magnesium Alloy Plug pre-dissolve during pump-down?

Not at all. For a certain amount of time—usually 6 to 12 hours—until the high-pressure fracturing setting is set up, Dissolvable Magnesium Alloy Plugs are given a brief protective coating or passivated surface layer that stops corrosion. This keeps degradation from happening too soon during rollout.

2. What is the maximum pressure rating available?

Differential pressures of up to 10,000 psi can be handled by standard systems. High-strength versions made with ceramic or special metal matrices can handle up to 15,000 psi, which is enough for the toughest finishing operations in HPHT wells.

3. Will the dissolved material damage the reservoir?

Not at all. The Dissolvable Magnesium Alloy Plug breaks down into magnesium ions and tiny metallic hydroxides particles. These are safe to handle and can be easily carried by production fluids without blocking the flow of fluids through the formation or lowering the productivity of the reservoir.

Partner with HAGRIEN for Reliable Dissolvable Magnesium Alloy Plug Solutions

Shaanxi Hagrien Energy Technology Co., Ltd. is a technology-driven company that makes Dissolvable Magnesium Alloy Plugs for oil and gas completions. They can make materials and downhole tools that work together. HAGRIEN controls the whole value chain, from melting and metallurgy of alloys in-house to extrusion (3,600-ton and 5,600-ton presses) and precise cutting. The company is based in Xi'an, China, and also has a location in the United States. Our Dissolvable Magnesium Alloy Plug extruded bars and billets (with a width of up to 300 mm) are approved to ISO 9001, ISO 14001, and ISO 45001, and they are recognized by API. They are also tested at a CNAS-accredited HPHT laboratory to make sure the quality is clear. We provide material solutions that can be engineered, scaled up, checked, and tracked. We do this by setting alloy systems to specific working windows for balanced strength, toughness, machinability, and controlled dissolution. Our responsive engineering team guarantees predictable lead times, full traceability, and audit-ready paperwork (COA/COC/SDS) whether you need standard sizes delivered in 2 to 4 weeks or unique solutions in 4 to 8 weeks. Email us at cyrus@us-hagrien.com to talk about the needs of your project, get product samples, or look into OEM/ODM options.
