Wellbore sealing Elastomer Element Explained: Mechanism and Benefits

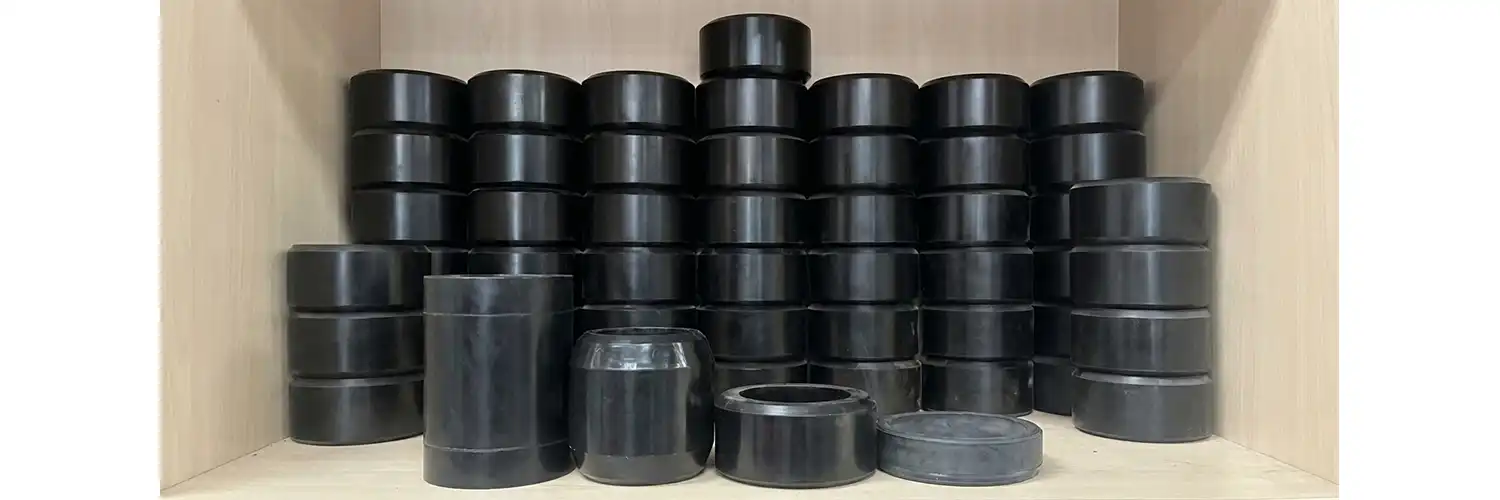

A wellbore sealing elastomer element is a precision-engineered rubber component that creates a hydraulic barrier between different pressure zones in oil and gas wells. This critical element undergoes controlled deformation under mechanical or hydraulic force to fill annular gaps between tooling and casing, preventing cross-flow and maintaining zonal isolation. For completion tool manufacturers, these elements solve the pressing challenge of sustained casing pressure and wellbore integrity failures in extreme HPHT conditions, where standard seals cannot withstand the combined assault of high differential pressure, corrosive fluids, and thermal cycling.

Understanding Wellbore Sealing Elastomer Elements

Downhole separation technology is based on elastomer closing elements. These are used in oil and gas, geothermal, and carbon sequestration projects. Conditions that would destroy regular rubber parts in hours have to be put on these parts.

What Defines an Elastomer Element

A basic O-ring or gasket is not the same as an elastomer element. When you put in a packer or bridge plug, the element contracts outward to touch the casing or open hole. It makes a pressure-energized seal, which means that the seal gets tighter as the difference pressure rises. The element has to keep this seal even when it comes in contact with hydrogen sulfide, carbon dioxide, crude oil, brine with more than 200,000 ppm of total dissolved solids, and temperatures that can hit 230°C in geothermal or deep gas wells.

At HAGRIEN, we control every element that affects efficiency during the manufacturing process. First, we choose the polymer. Then, we change the filler loading, crosslink density, and cure profiles to fit your working window. This closed-loop method makes sure that the mechanical qualities and dissolving resistance of each batch are the same.

Core Polymer Systems and Their Trade-offs

Whether your tool works or doesn't work downhole depends on the base polymer you choose. Nitrile rubber (NBR) is very good at resisting oil and can handle temperatures up to 120°C. This makes it suitable for normal wells with stable thermal profiles. Hydrogenated nitrile (HNBR) raises the temperature limit to 180°C and makes it more resistant to oxidative aging. This is important in steam-assisted gravity drainage operations because the polymer breaks down faster when heated and cooled over and over again.

Fluoroelastomers (FKM) can withstand aromatic oils and stay strong at 200°C, but they are more expensive and need longer cure processes. For geothermal completions, ethylene propylene diene monomer (EPDM) is the best choice because it works well with steam and hot water. Each material is a carefully thought-out compromise between the highest temperature that it can withstand, its resistance to chemicals, its mechanical strength, and its cost per element.

We have formulations from all four families of polymers in stock. The shore hardness ranges from 70A to 90A. When there is a lot of unequal pressure, harder materials don't extrude, but softer materials can bend better in uneven boreholes.

Synthetic Versus Natural: Why It Matters

Natural rubber has great tensile strength and tear resistance, but it can't last in conditions deep underground. Being exposed to crude oil makes things swell, which destroys their stability within days. Heat and ozone make cracks appear faster. For every part we make, we use synthetic polymers that are made to be chemically inert and thermally stable. For underground uses, where replacement costs tens of thousands of dollars per operation, this decision has to be made.

Core Functions and Benefits of Wellbore Sealing Elastomer Elements

Elastomer elements have three very important jobs that have a direct effect on how quickly and safely your work gets done.

Pressure Integrity and Fluid Migration Control

Each stage of multi-stage fracturing needs its own separate hydraulic separation. The elastomer part in your frac plug has to be able to handle difference pressures of more than 10,000 psi while pumps shoot fluids full of proppant at rates close to 100 barrels per minute. If you go around the element, you'll be activating the wrong period, wasting proppant, and slowing down the overall recovery.

Our parts all compress in the same way to get rid of leak routes. Hydrostatic testing that mimics downhole pressure cycles helps us be sure of this. As required by ASTM D395, we test each production batch for compression set. We keep the compression set below 25% after 70 hours at 150°C to make sure the element keeps its sealing force throughout the process.

Durability That Reduces Downtime

When a tool breaks, you lose rig time, which is calculated in thousands of dollars per hour. If a Wellbore sealing Elastomer Element tears or extrudes, you have to pull the toolstring, replace the parts, and run to depth again. Our anti-extrusion geometry has backup rings and improved taper angles that spread stress across the surface of the element. This design stops the flow of material even when the differential pressure goes up during a sudden contact with the formation.

We've given parts to fixed packers that have been shut in producing wells for more than seven years. This long-lasting quality comes from recipe stability—we keep track of small contaminants and make sure antioxidant packages work best to slow down the rate of breakdown.

Chemical Resistance Across Fluid Systems

Different basins have very different completion fluids. High-salinity brines with calcium and magnesium chlorides can be found in the Permian. The Eagle Ford releases condensation that breaks down elastomers that were not chosen well. During output, geothermal wells have a normal pH, but during workover, they have an acidic pH. Your fluid chemistry is the first thing we look at when choosing materials. We need you to send us your water analysis and hydrocarbon composition. During your operating timeline, we'll suggest a polymer system that doesn't swell, stays hard, and doesn't crack from stress.

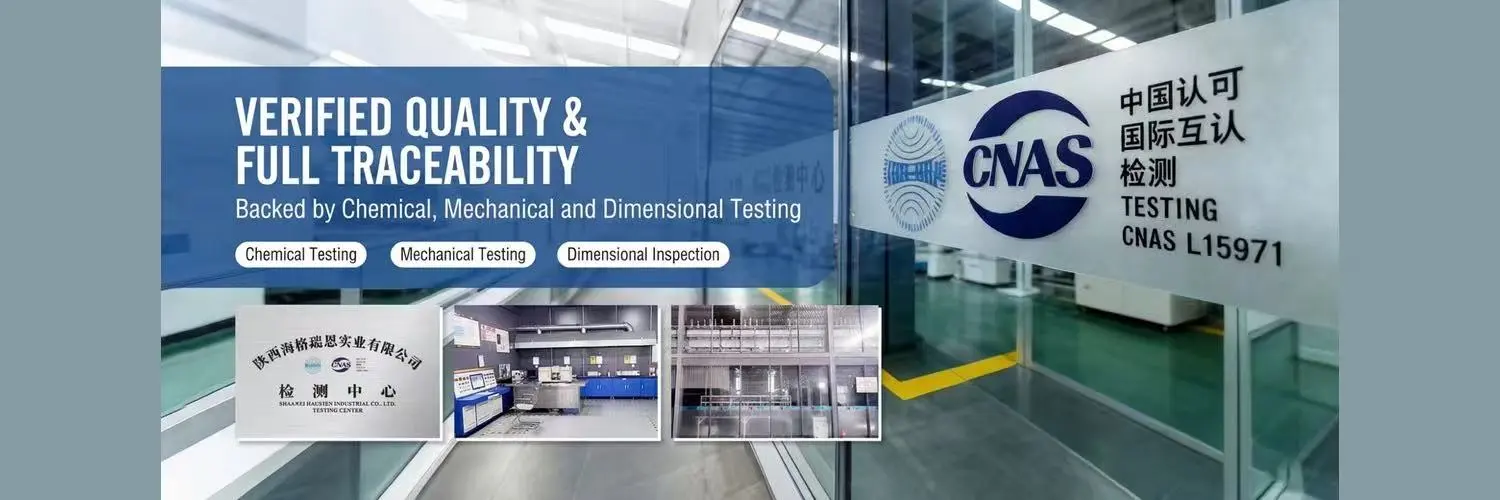

Immersion tests are done in artificial downhole fluids at high temperatures in our CNAS-accredited lab. We check how much the volume swells, how hard it changes, and how long it can hold its shape after 1,000 hours of contact. This information lowers your qualification risk and speeds up deployment.

Common Issues and How to Avoid Them

When working conditions go beyond what was planned or when material choice doesn't take important weather factors into account, even well-designed elastomer parts fail.

Extrusion: When Pressure Overwhelms Geometry

Differential pressure pushes elastomer material into holes between tool parts, which is called extrusion. You'll see this as rough material sticking out of the element after it has been retrieved. Modulus goes down when the temperature goes up, which makes the material more likely to flow. Material choice and motor design are both part of the answer. For high-pressure uses, choose compounds that are harder (85 to 90 Shore A). Add backup bands that physically stop the extrusion lines. We offer combined element kits with matched backup parts that can be installed as a single unit, which gets rid of the need for mistakes in assembly.

Swelling: Chemical Compatibility Failures

When fluids from the wellbore move into the polymer matrix, swelling happens. The element gets bigger, its mechanical strength goes down, and it might not retract when the tool is pulled out. Most of the swelling in nitrile rubber is caused by aromatic hydrocarbons. Match the polarity of your polymer to that of your fluid system to avoid this. Fluoroelastomers are better than nitrile at stopping aromatic swelling. We keep up with a database of fluid compatibility that was made from years of field returns and lab tests. This resource helps you choose the right materials and gets rid of the need to try things out and see what works.

Rapid Gas Decompression: The Hidden Killer

Rapid gas decompression (RGD) happens when high-pressure gas flows through the rubber while it is working and then explodes when the pressure drops during shut-in or recovery. Blisters and cracks inside the seal make it impossible to close. According to ISO 23936-2, high-modulus compounds that don't let gasses dissolve and have better tear strength resist RGD. As part of the qualification process, you should include RGD tests if your wells create high-pressure gas. At our site, we do explosive decompression testing and include approval paperwork with every shipment.

Comparison and Selection Guide for Wellbore Sealing Elastomer Elements

Before you can choose between elastomer systems, you need to know how each one works in your specific situation.

Standard Rubber Seals Versus Engineered Elements

When temperature and pressure are modest and the device is static, a standard O-ring will work. Conditions downhole call for more. Engineered rubber elements have complicated shapes that make the best use of contact pressure, anti-extrusion curves that stop material flow, and formulations that balance the needs for strength, flexibility, and chemical resistance. It costs more per element, but less per successful operation because fewer things go wrong.

Material Comparison: HNBR Versus FKM

Because it can stretch more than 300% and has a tensile strength of more than 20 MPa, HNBR doesn't tear easily when it's loaded and unloaded quickly in a Wellbore sealing Elastomer Element. It can stand up to temperatures of up to 180°C and most crude oils and brines won't hurt it. FKM can handle temperatures up to 200°C and doesn't break down when exposed to aromatic hydrocarbons, but it costs about twice as much and isn't as tough. If you need a standard completion with mechanical loading, choose HNBR. If temperature limits or aromatic contact are the main cause of failure, choose FKM. We keep both systems in stock, and we can also provide combination elements that have FKM on the sealing surface and HNBR in the solid body to get the best performance and value.

Custom Formulation Versus Off-the-Shelf

Items from catalogs cost less and ship faster. Off-the-shelf solutions can't match the performance of custom formulas when working windows are small or fluid chemistry is harsh. Custom development takes between 4 and 8 weeks, which includes trying the final recipe, molding trials, and making sure the work is correct. We help with this process by doing application engineering, which turns your working conditions into material requirements. When you avoid field failures that cost many times the price of the element, the investment pays off.

Procurement Insights: Sourcing and Partnering with Reliable Suppliers

Choosing the right rubber element provider affects more than just the cost of the parts; it also affects your ability to finish projects on time and with quality that you can count on.

What Certifications Actually Mean

ISO 9001 certification means that the process is controlled and can be tracked. ISO 14001 means taking care of the world. ISO 45001 talks about health and safety at work. These standards are important because they make sure that people keep records in a way that helps with finding the root cause of problems when they happen. Our facility has all three certifications and is also recognized by API, which means it meets the quality standards of the oil industry. We also have an in-house CNAS-accredited laboratory that does ASTM testing. With this feature, you don't have to wait for third-party lab reports; instead, you get certified test data with every shipment.

Custom Manufacturing and OEM Partnerships

A lot of companies that make finishing tools need parts that fit their own designs. As part of our support for OEM partnerships, we offer private labeling, design-for-manufacturing advice, and secrecy agreements. Send us your plans and details about how they will work. We'll suggest material systems, point out problems with production, and suggest design changes that make it easier to make without lowering performance. Our 3,600-ton and 5,600-ton extrusion presses can handle elements with a width of up to 300 mm. This means that they can support bridge plug and packer uses that smaller suppliers can't.

Lead Times and Supply Chain Reliability

Standard elements are sent out two to four weeks after the order is confirmed. Custom patterns take between 4 and 8 weeks, which includes work on the mixture and making the tools. We keep a safety stock of common sizes on hand so that we can do quick sampling and emergency restocking. You can stay on top of the manufacturing process with weekly production updates. This way, you can plan tasks and keep your schedule from falling behind. Our ability to do everything in-house, from mixing the polymer to molding, curing, and final inspection, means we don't have to rely on outside subcontractors that can cause delays and quality problems.

Conclusion

Choosing the right Wellbore sealing Elastomer Element affects how well your downhole tools work and whether they break down early, which can increase costs and delay projects. Material science, physical design, and precise production all play a part in how well a seal works when it is exposed to high temperatures, chemicals, and pressure. By knowing the pros and cons of NBR, HNBR, FKM, and EPDM polymer systems, you can match the properties of materials to the conditions they will be used in. To avoid common failure modes like extrusion, swelling, and fast gas release, you need to choose your materials carefully and work with your suppliers. Working with a manufacturer that offers custom formulation, full traceability, and quick response will make sure that your supply chain helps the project get done instead of getting in the way.

FAQ

1. How does temperature affect elastomer element performance?

When the temperature goes up, the stiffness and hardness go down. This makes extrusion more likely when the difference pressure is high. Crosslinks break and mechanical traits get worse permanently above the polymer's temperature ceiling. Thermal softening can be stopped with anti-extrusion backup rings and higher-hardness compounds. After being exposed to rated temperature for a long time, our formulations keep the compression set below 25%. This ensures reliable performance throughout the service interval.

2. What causes rapid gas decompression failure?

During use, high-pressure gas moves through the rubber. Dissolved gas expands faster than it can escape when pressure drops quickly during retrieval or shut-in. This makes blisters and tears inside the tube. According to ISO 23936-2, high-modulus compounds that don't let gasses dissolve and have better tear strength resist RGD.

3. Can elastomer elements be reused after retrieval?

During setting, elements change shape permanently and may take in contaminants from fluids in the wellbore. Reusing parts increases the chance that something will go wrong in safety-critical applications. As a best practice in the industry, rubber parts are replaced with each tool run to make sure that they are always reliable.

Partner With a Trusted Wellbore Sealing Elastomer Element Manufacturer

Every Wellbore sealing Elastomer Element part HAGRIEN sends you is made with seven years of production knowledge and closed-loop manufacturing control. Our CNAS-accredited lab checks the mechanical qualities, chemical resistance, and thermal performance of your materials according to ASTM standards. They then give you paperwork that is ready for an audit to support your approval process. When you need elements in NBR, HNBR, FKM, or EPDM forms, we can compound them in a way that fits your working window, whether you're putting tools in HPHT gas wells, geothermal steam zones, or multi-stage frac operations. Standard parts are sent out in two to four weeks, and custom-engineered solutions are sent out in four to eight weeks with full tracking. Get in touch with cyrus@us-hagrien.com to talk about your specific needs, get technical specs, or set up sample validation testing. Check out us-hagrien.com to see all of our downhole sealing options and learn how working with a responsive, vertically integrated provider can lower your buying risk and speed up project completion.

References

1. American Petroleum Institute. (2018). API Specification 11D1: Packers and Bridge Plugs. API Publishing Services.

2. International Organization for Standardization. (2019). ISO 23936-2: Petroleum, petrochemical and natural gas industries — Non-metallic materials in contact with media related to oil and gas production — Part 2: Elastomers. ISO.

3. ASTM International. (2016). ASTM D395: Standard Test Methods for Rubber Property—Compression Set. ASTM.

4. ASTM International. (2016). ASTM D412: Standard Test Methods for Vulcanized Rubber and Thermoplastic Elastomers—Tension. ASTM.

5. NORSOK Standard. (2014). M-710: Qualification of non-metallic sealing materials and manufacturers. Standards Norway.

6. Society of Petroleum Engineers. (2020). "Elastomer Selection for High-Temperature Downhole Applications," Journal of Petroleum Technology, 72(3), pp. 45-52.
