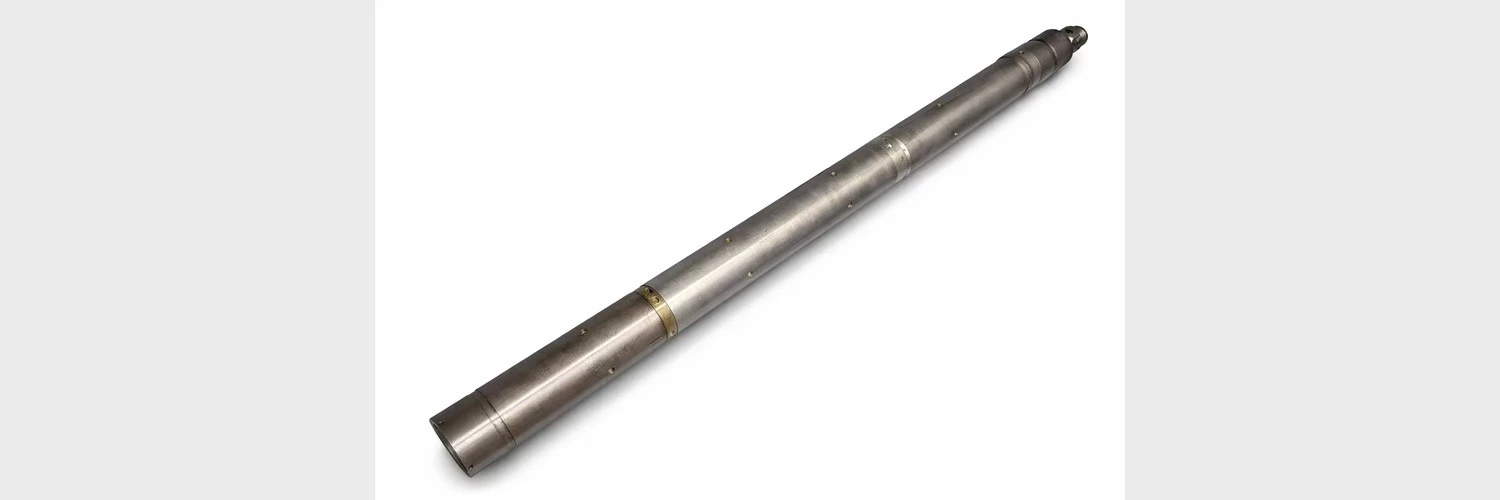

Electric-hydraulic Setting tool

Electric-Hydraulic Setting Tool | Professional Downhole Completion Solution

When you're running multi-stage completions or plug-and-abandonment operations in challenging wellbores, you need precision and reliability. Shaanxi Hagrien Energy Technology's Electric-hydraulic Setting tool delivers exactly that. Our tool generates 60,000–120,000 lbf setting force with real-time verification, operates reliably in HPHT environments up to 350°F (177°C) and 20,000 psi, and is constructed from corrosion-resistant 17-4 PH stainless steel. Designed for horizontal wells, offshore operations, and deepwater completions, this tool replaces explosive methods with a safer, more controllable solution. With 24-hour RFQ response and full technical support, we help you reduce downtime and qualify tools faster.

Why Choose Our Downhole Setting Solution?

You confront genuine challenges in the field. Unstable instruments carry calculated cerebral pains and security dangers. Mechanical strategies come up short in veered off wells. You require a arrangement that works the to begin with time, each time.

Our framework employments electric motor-driven water powered weight to set packers and bridge plugs with accuracy. You get steady constrain application without contact misfortunes. You pick up real-time criticism on setting completion. And you dispense with dangerous dealing with prerequisites entirely.

This things when you're working seaward. It things in urban penetrating zones with strict directions. It things most when intercession costs run into millions and you cannot manage a fizzled seal.

Advanced Engineering for Demanding Applications

Proven Performance in Complex Wellbores

Horizontal and extended-reach wells present unique challenges. Gravity won't help you there. Friction works against traditional methods. Our product solves this by delivering localized force precisely where you need it—independent of wellbore geometry.

The closed-loop hydraulic system maintains stable pressure throughout the setting cycle. High-resolution sensors monitor stroke length in real time. You know exactly when the tool reaches lock position. No guesswork. No pre-sets during stimulation.

Built for Harsh Environments

Downhole conditions don't forgive weak materials or poor design. We engineer our tools with high-strength alloys that resist H₂S and CO₂ corrosion. Thermal resilience is built in from the start.

Your operations continue smoothly in deep HPHT completions. The modular design allows quick redress between runs—typically 2-4 hours with a standard kit. You minimize non-productive time and maximize asset utilization.

Compatibility and Integration

Field operations demand flexibility. Our tools work with industry-standard adapter kits, including Baker-style connections. You can integrate them into your existing completion programs without redesigning your entire tool string.

Whether you run wireline for real-time telemetry or slickline with battery power, we support both configurations. Choose the deployment method that fits your operational priorities and budget.

Technical Specifications

How Our Solution Addresses Your Operational Needs?

Non-Explosive Operations

Transporting and handling explosives adds cost, delays, and safety concerns. Offshore platforms and urban locations often restrict pyrotechnic materials entirely.

You avoid all of that. Our Electric-hydraulic Setting tool system eliminates explosive permits, hazmat logistics, and the associated safety protocols. Your operations become simpler, faster, and more cost-effective.

Multi-Stage Fracking Reliability

In plug-and-perf operations, you need absolute confidence that each bridge plug is set correctly. A failed plug during high-pressure stimulation creates expensive problems.

Real-time force verification gives you that confidence. You receive confirmation at the surface the instant setting completes. Each stage proceeds with documented proof of proper tool placement.

Extended Reach and Deepwater Efficiency

When intervention costs are astronomical, you cannot afford to pull out and rerun. Our tool's ability to provide real-time telemetry—when deployed on e-line—lets engineers monitor every critical parameter downhole.

You make informed decisions in real time. You verify seal integrity before moving to the next operation. You reduce the risk of costly fishing jobs or lost zones.

Hagrien's Manufacturing Advantage

Integrated Material and Tool Engineering

We do not fair gather components. We control the whole fabricating chain—from combination definition through accuracy machining. This integration guarantees dimensional consistency and execution repeatability.

Our CNAS-accredited research facility approves each bunch. You get total documentation bundles (COA, COC, SDS) for review compliance and provider qualification.

Scalable Generation with Unsurprising Lead Times

Whether you require model approval or volume generation, we move easily between scales. Our closed-loop fabricating framework keeps up quality over generation runs.

Standard apparatuses transport in 2–4 weeks. Custom arrangements require 4–8 weeks. Assisted conveyance is accessible when your plan requests it.

Engineering Back All through Your Project

We get it B2B obtaining choices include different partners and specialized assessments. Our group gives facilitated device coordinating, fabricating follow-up, and specialized communication centered on reliability.

You get RFQ reactions inside 24 hours and citations inside 1–3 commerce days. Week by week venture upgrades adjust with North American trade plans. Our U.S. substance guarantees smooth coordination over time zones.

Exhibition

Frequently Asked Questions

What is a product mainly used for?

It's designed for running and setting packers, bridge plugs, and completion tools under controlled force. You'll find it particularly valuable when target working conditions require verified setting force, or when explosive alternatives create unacceptable logistical or safety constraints. The tool helps you meet specific application requirements without introducing unnecessary downstream risk.

What key features should buyers evaluate when sourcing these tools?

Focus on setting force stability first—inconsistent force leads to unreliable seals. Operational reliability in your specific environment (temperature, pressure, fluid chemistry) is critical. Compatibility with your existing plug systems saves integration time. Field safety records and redress requirements impact total operating cost. In export purchasing, these factors directly affect processing yield, field reliability, product consistency, and your total qualification expense.

Why do international buyers choose Hagrien for completion tools?

We support completion-tool projects with coordinated tool matching, manufacturing follow-up, and technical communication focused on reliability and field usability. This approach helps you reduce dependence on single suppliers, improve communication speed, and move from sample validation to stable volume supply more efficiently. Our integrated manufacturing capability—from material formulation through final assembly—ensures consistency across production runs.

How does this compare to traditional explosive setting methods?

You gain significantly higher safety and real-time data feedback. There's no hazmat handling or transportation restrictions. However, electric-hydraulic tools require periodic maintenance, whereas explosive sleeves are single-use. The trade-off makes sense when you consider the total cost of explosive logistics, safety compliance, and the value of verified setting confirmation.

Can the tool operate on battery power?

Yes. Slickline-compatible versions with integrated battery packs are available. However, wireline deployment is preferred when you need real-time monitoring and telemetry. Battery operation suits simpler applications where surface feedback isn't critical.

How do you verify the tool successfully set the plug?

The tool transmits peak force and stroke completion signals to the surface operator. These data points confirm the plug reached full set position with appropriate force. You document this verification for well records and regulatory compliance.

What is typical redress time between runs?

With a standard redress kit and trained technician, you can service the tool and prepare it for the next run within 2-4 hours. This quick turnaround helps you maintain operational tempo in multi-well campaigns.

Is it compatible with all brands of bridge plugs?

Most configurations use industry-standard adapter kits to ensure compatibility with a wide range of downhole consumables. Specific compatibility should be confirmed during the engineering phase, but Baker-style connections are widely supported.

Get Started with a Reliable Completion Partner

Ready to discuss your specific application requirements for Electric-hydraulic Setting tool? Contact our technical team at cyrus@us-hagrien.com to receive detailed specifications and project support.
