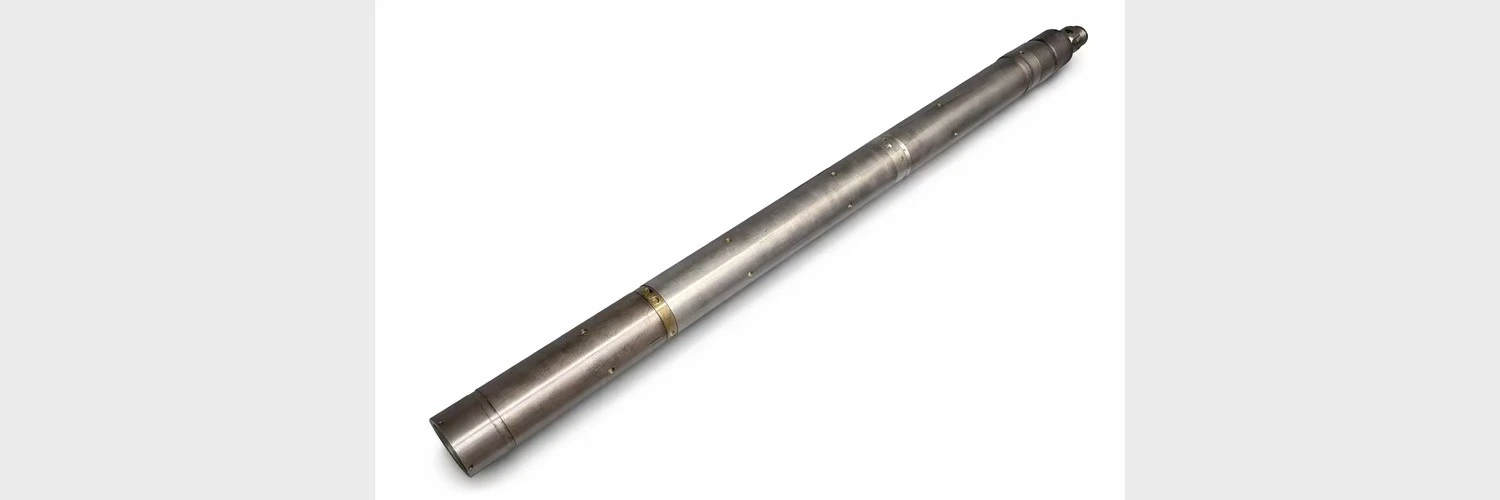

Mechanical setting tool

Mechanical Setting Tool: Reliable Downhole Deployment Solution for Oil & Gas Completions

Hagrien's Mechanical setting tool delivers enterprise-grade performance with proven field reliability. Our tool operates through pure mechanical structure—using pipe string rotation and pressure—eliminating the need for electricity, gas, or hydraulics. Designed for temperatures up to 400°F and differential pressures exceeding 10,000 psi, it provides stable setting force with exceptional sealing performance. Manufactured with high-strength AISI 4140/4340 alloy steel and backed by our closed-loop quality system, this product ensures consistent results across horizontal wells, low-pressure reservoirs, and NACE-compliant sour service environments.

​​​​​​​Why Choose Hagrien's Mechanical Setting Solution?

You confront genuine challenges each day. Questionable devices. Conflicting quality. Supply chain delays. We get it these torment points.

Our arrangement addresses your center concerns head-on.

Proven Mechanical Design

No complex hardware. No water powered conditions. Fair dependable mechanical activity that works when you require it most. The J-slot instrument combined with exactness shear pins gives you positive affirmation of setting completion.

Built for Cruel Conditions

Your wells do not offer moment chances. Our devices handle extraordinary situations with certainty. Tall temperatures, destructive gasses, and challenging wellbore geometries are all inside operational scope.

Manufacturing Consistency You Can Trust

Every unit comes from our coordinates fabricating framework. We control the whole process—from amalgam dissolving to last machining. This implies repeatable execution over each shipment.

Fast Reaction, Dependable Delivery

RFQ answers inside 24 hours. Cites in 1-3 trade days. Standard conveyance in 2-4 weeks. We regard your extend timelines since we know delays fetched cash.

Technical Specifications

Key Advantages That Impact Your Bottom Line

Simple Operation, High Reliability

Your field crews don't need specialized training. The operation is straightforward—run in hole, rotate, apply tension or compression. The mechanical feedback tells you immediately when setting is complete.

Adaptable to Challenging Wells

Low-pressure mature fields? Horizontal sections where wireline struggles? High-deviation wells with friction concerns? This tool handles them all. The mechanical force works independently of reservoir pressure.

Lower Total Cost of Ownership

Maintenance is simple. Replacement parts are standard. No expensive electronics to replace. No specialized equipment needed for field prep. Your operational costs stay predictable.

Stable Setting, Superior Sealing

Consistent force application means reliable packer engagement. The mechanical lock provides positive confirmation. You can perform immediate tug tests to verify seal integrity before moving on.

Field-Proven Durability

Made from high-grade alloy steel with specialized coatings for sour service. These tools withstand the punishment of repeated trips and harsh downhole chemistry.

Primary Application Scenarios

Zonal Isolation in Mature Fields

When reservoir pressure drops, hydraulic tools become unreliable. Your Mechanical setting tool provides the physical force needed to set bridge plugs and isolate water-producing zones. No dependence on formation pressure.

Multi-Stage Completions in Horizontal Wells

Plug-and-perf operations in horizontal sections demand precise tool placement. Running on drillpipe or coiled tubing, the mechanical tool reaches zones that gravity-fed wireline tools cannot. You maintain control throughout the setting process.

Temporary Well Barriers

During rig moves or workover operations, you need verified barriers. The mechanical confirmation—through rotation and tension testing—gives you immediate proof of seal integrity. This meets regulatory requirements without additional verification runs.

Low-Cost Intervention Projects

When budget constraints limit your options, mechanical tools offer reliable performance without the cost premium of electronic or hydraulic alternatives. You get field-proven technology at a competitive price point.

How Hagrien Supports Your Operations?

Material + Tool Integration

We don't just sell tools. Our expertise in dissolvable magnesium alloys and completion tools means we understand how components work together. We can help you design complete isolation solutions.

Engineering-to-Spec Capability

Need custom specifications? We provide drawing-based production and prototype development. Our engineering team works with you from concept through field deployment.

Verification First Approach

Every tool ships with complete documentation. Material Test Reports. NDT certificates. Calibrated shear-pin test results. Our CNAS-accredited lab ensures you receive audit-ready paperwork.

Supply Chain Reliability

We maintain safety stock for standard configurations. Our in-house manufacturing control means fewer surprises. Weekly project updates keep you informed throughout production.

Global Service Network

Our U.S. entity provides local coordination. Time zone alignment means faster responses. Technical communication happens when you need it, not days later.

Exhibition

Frequently Asked Questions

What is the product mainly used for?

The product is mainly used for running and setting packers, plugs, and completion tools under controlled force. Buyers usually want to know whether the product can meet the target working condition, machining route, and final application requirement without creating unnecessary downstream risk.

What key features should buyers evaluate when sourcing the product?

Buyers should evaluate setting force stability, operational reliability, compatibility with plug systems, and field safety. In export purchasing, these factors matter because they directly affect processing yield, field reliability, product consistency, and the total cost of qualification.

Why do international buyers choose Hagrien for the product?

Hagrien supports completion-tool projects with coordinated tool matching, manufacturing follow-up, and technical communication focused on reliability and field usability. This helps customers reduce dependence on a single supplier, improve communication speed, and move from sample validation to stable volume supply more efficiently.

How do I determine the correct shear pin rating for my application?

Calculate your required setting force, then add a safety factor of 3,000-5,000 lbs to account for friction and dynamic loads during deployment. Our engineering team can help you select appropriate shear values based on your specific well conditions.

Can these tools be used in sour service environments?

Yes. We offer NACE MR0175-compliant versions with specialized coatings and material grades designed for H2S and CO2 service. Request sour-service specifications when submitting your RFQ.

What's the difference between mechanical and hydraulic setting tools?

Mechanical tools use physical rotation and pipe movement. They don't require fluid circulation or high pressure. This makes them ideal for low-pressure zones and reduces formation damage risk. Hydraulic tools depend on fluid pressure, which can be limiting in depleted reservoirs.

Do you provide technical support for first-time users?

Absolutely. We offer operational guidance, setting procedure recommendations, and troubleshooting support. Our team has field experience and understands the practical challenges you face.

What documentation comes with each tool?

You receive complete Material Test Reports, NDT inspection certificates, shear-pin calibration data, dimensional inspection records, and Certificate of Conformance. Full traceability is standard.

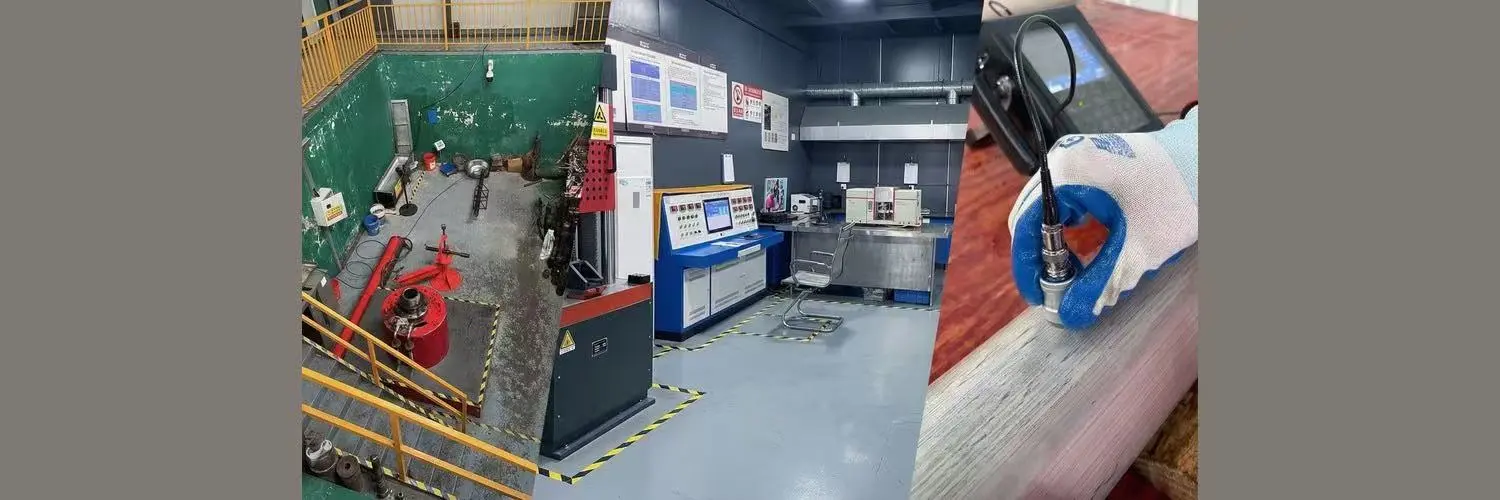

Quality Assurance and Compliance

Our manufacturing follows strict quality protocols. ISO 9001, ISO 14001, and ISO 45001 certifications govern our operations. API recognition validates our technical capability.

Every tool undergoes dimensional inspection. Critical components receive non-destructive testing. Shear pins are calibrated and tested to specification.

Documentation packages include batch traceability. You can track every component back to raw material heat numbers. This supports your supplier qualification process and ensures audit readiness.

Get Started with Hagrien

Ready to specify reliable completion Mechanical setting tools for your next project? Contact our team today at cyrus@us-hagrien.com for technical consultation and quotations.​​​​​​​​​​​​​​
