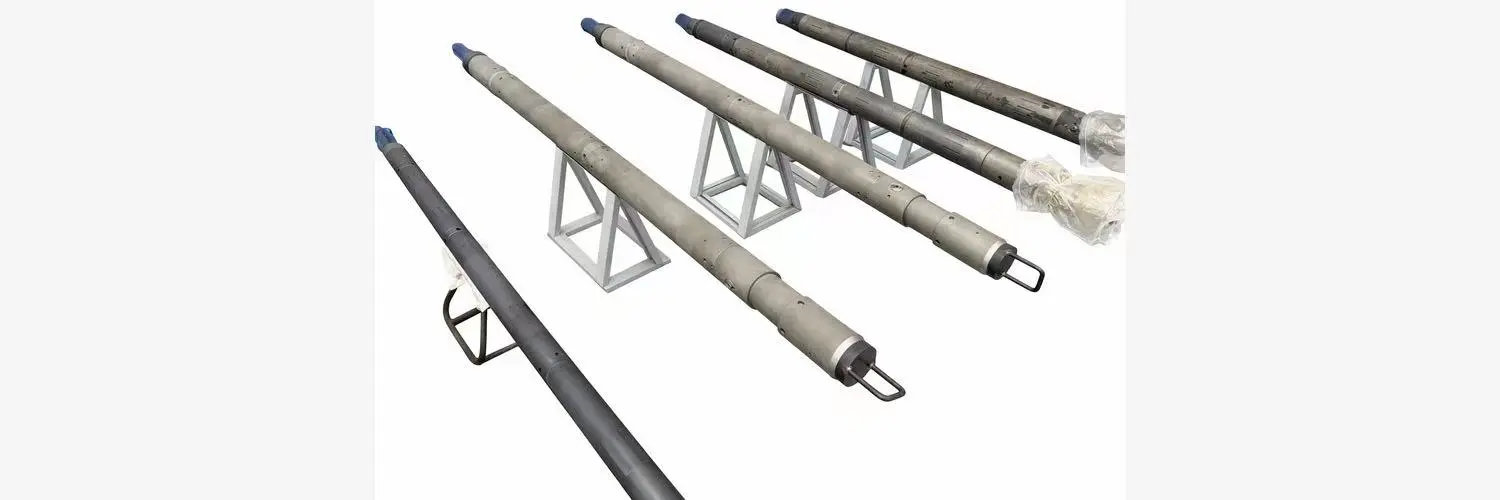

Pyrotechnic Setting tool

Pyrotechnic Setting Tool: Rapid Downhole Setting Solutions for Oil & Gas Completion

When you need reliable downhole setting for packers and plugs, Shaanxi Hagrien's Pyrotechnic Setting tool delivers enterprise-grade performance where it matters most. Our solution uses controlled propellant combustion to generate high-pressure gas, completing setting operations in seconds—not minutes. With operational reliability exceeding 98% in HTHP environments, our tools achieve stable setting forces from 5,000 to 30,000 lbf depending on configuration. The system works independently without external power sources, making it ideal for remote wellsite operations. Backed by our CNAS-accredited laboratory validation and ISO-certified manufacturing, you get predictable performance with full batch traceability from material selection through final assembly.

What Makes Our Pyrotechnic Setting Tool Different?

Fast and Efficient Operations

Your fix time is costly. Our item completes setting cycles in beneath 10 seconds. That speed interprets straightforwardly to lower completion costs and more tightly operational plans. You can run different devices per day without holding up for pressure driven frameworks or electric lines.

Built for Downhole Extremes

High temperature? Tall weight? Destructive liquids? Our devices handle all three. We plan each component to withstand downhole conditions up to 350°F and 15,000 psi. The auxiliary materials stand up to corruption from H₂S and CO₂ situations, giving you certainty in long-term wellbore integrity.

Simple, Dependable Design

Fewer moving parts cruel less disappointment focuses. The combustion chamber, cylinder gathering, and setting instrument work together through demonstrated mechanical standards. You do not require complex control frameworks or outside control. Fair stack, run, and activate—reliability you can number on.

Technical Specifications

Why This Matters to Your Operations?

No Power Infrastructure Required

You operate in remote fields where electrical or hydraulic power isn't always available. Our tool carries its own energy source. That independence means you can set packers and bridge plugs without rig support, reducing non-productive time and logistical complexity.

Consistent Setting Force

Inconsistent setting creates leaks and operational headaches. We engineer each pyrotechnic charge for controlled burn rates and predictable gas generation. The result? Repeatable setting forces that create reliable seals, batch after batch.

Lower Total Cost of Ownership

Initial price isn't everything. Consider training costs, maintenance requirements, and failure rates. Our simple mechanical design requires minimal training. Maintenance is straightforward. Field reliability reduces costly fishing operations and re-runs.

Manufacturing You Can Trust

We control the entire production chain—from alloy formulation to final assembly. Every component passes through our quality gates with documented verification. You receive Certificate of Conformance (COC) and material traceability for every shipment, supporting your supplier qualification and audit requirements.

How It Works in Your Well?

When you need to set a packer or plug, you run the Pyrotechnic Setting tool to depth on wireline or coiled tubing. At the target depth, you initiate the propellant charge through mechanical or electronic firing systems. The controlled combustion generates high-pressure gas in milliseconds. This gas drives a piston assembly that translates into axial force, compressing the packer element or setting the slips against the casing wall. The entire sequence completes before pressure dissipates, creating immediate anchoring and sealing.

Application Scenarios

Fracturing Operations

Set bridge plugs between frac stages quickly and reliably. Your operations move faster when setting time drops from minutes to seconds.

Temporary Zone Isolation

When you need to isolate zones for testing or selective production, our tools provide the rapid setting and holding force required for confident well control.

Completion Tool Deployment

Deploy packers, hangers, and liner tops with controlled, documented setting forces that meet your completion design specifications.

High-Temperature Wells

Geothermal and deep reservoir completions demand tools that won't fail at elevated temperatures. Our heat-resistant materials and proven designs perform where others can't.

Engineering Support and Customization

Every well is different. We offer engineering consultation to match tool specifications with your completion design. Need specific OD dimensions? Custom setting force requirements? Integration with proprietary plug systems? Our engineering team works with your technical staff to develop solutions that fit your operational envelope.

We provide:

• Drawing-based custom manufacturing
• Prototype development and field testing support
• Material selection guidance for specific wellbore conditions
• Technical documentation for regulatory compliance

Quality Assurance and Traceability

Quality isn't negotiable in downhole operations. Our quality system ensures:

Material Verification

Every metal component traces back to certified mill certificates. We verify chemistry and mechanical properties in our CNAS-accredited lab before machining begins.

Dimensional Inspection

CNC machining centers maintain tolerances to ±0.001". Final inspection includes coordinate measuring machine (CMM) verification for critical dimensions.

Functional Testing

We test representative samples from each production batch under simulated downhole conditions. Setting force, activation consistency, and pressure integrity are verified before shipment.

Documentation Package

You receive complete traceability with every order: COA, COC, dimensional reports, and batch numbers that tie back to our production records.

Exhibition

Frequently Asked Questions

What is the product mainly used for?

The product is mainly used for running and setting packers, plugs, and completion tools under controlled force. You'll want to know whether the product can meet your target working conditions, machining requirements, and final application specifications without creating unnecessary downstream risk. Our tools are designed for reliable performance across conventional and unconventional well completions.

What key features should buyers evaluate when sourcing the product?

You should evaluate setting force stability, operational reliability, compatibility with your existing plug systems, and field safety features. In export purchasing, these factors matter because they directly affect processing yield, field reliability, product consistency, and your total cost of qualification. Don't just compare prices—compare documented performance data and supplier capability to support long-term programs.

Why do international buyers choose Hagrien for the product?

Hagrien supports completion-tool projects with coordinated tool matching, manufacturing follow-up, and technical communication focused on reliability and field usability. This helps you reduce dependence on a single supplier, improve communication speed, and move from sample validation to stable volume supply more efficiently. Our dual presence in China and the United States means responsive support across time zones with engineering resources that understand both manufacturing constraints and field requirements.

Can the tool be used in H₂S environments?

Yes. We select corrosion-resistant materials and coatings specifically for sour gas wells. Material specifications and test data are available upon request to support your engineering review.

What training do operators need?

Safe operation requires understanding activation procedures, handling precautions, and field troubleshooting. We provide operation manuals and can arrange technical training sessions for your field personnel to ensure safe, effective deployment.

How do I select the right tool size and setting force?

Selection depends on your packer or plug specifications, casing size, depth, and expected differential pressure. Contact our engineering team with your completion design parameters. We'll recommend the appropriate configuration and provide supporting calculations.

Delivery and Lead Times

We maintain safety stock for standard configurations:

• Standard sizes: 2–4 weeks from order confirmation
• Custom configurations: 4–8 weeks depending on specifications
• Expedited delivery: Available for critical operational needs

Global logistics support ensures on-time delivery to your warehouse or wellsite location with proper documentation for international shipping and customs clearance.
