How Does a frac plug Work in Multistage Fracturing?

A frac plug is a downhole isolation tool deployed during plug-and-perf completions to seal off previously fractured stages, allowing each new perforation cluster to receive full hydraulic pressure. In multistage fracturing, the plug is run to target depth on wireline, set mechanically or hydraulically, and held in place by slips that grip the casing wall. Once set, the elastomeric sealing element expands to block fluid bypass. This staged isolation approach lets engineers direct fracturing energy precisely into each zone, improving reservoir contact and Estimated Ultimate Recovery (EUR) across the lateral.

Understanding Frac Plugs in Multistage Fracturing

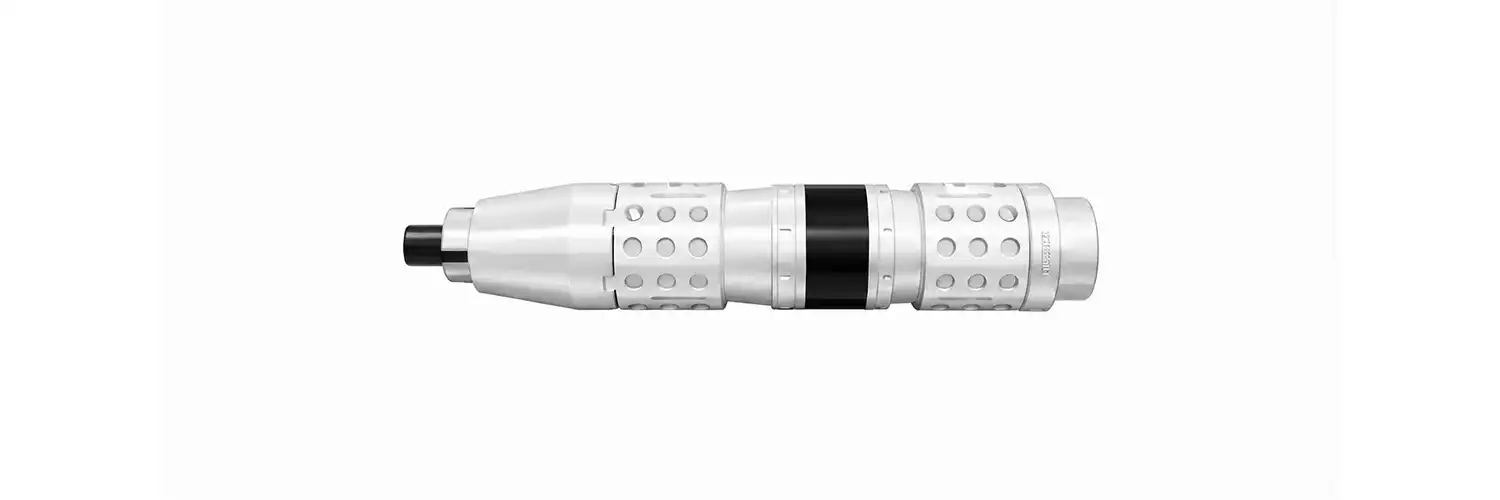

What Is a Frac Plug?

A frac plug is a temporary device used in horizontal completions to keep the wellbore from connecting to other parts of the well. It keeps the differential pressure high—often above 10,000 psi—so that the stimulation fluid can't move into areas that are already broken. The tool is made up of a mandrel, slips, cones, and a sealing element. Each of these parts is designed to work in a certain temperature and pressure range.

Main Types of Frac Plugs

Right now, the market is dominated by three main designs. Most people still choose composite plugs, which are drilled out after stimulation. Dissolvable plugs are made from designed magnesium metals. Once they're done isolating the well, they dissolve in produced water or brine, so there's no need to drill out coiled tubing. Mechanical plugs are usually only used for very specific intervention programs and are recovered by cable.

How the Plug-and-Perf Workflow Operates

The steps are as follows: a setting tool pumps or runs the plug to depth, a ball is dropped to energize the sealing element, guns fire holes above the plug, high-pressure fluid is injected to make fractures, and the process starts all the way at the toe and ends at the heel. It is said by the Society of Petroleum Engineers that most unusual horizontal well stages in North America use plug-and-perf completions.

Challenges in Multistage Fracturing and How Frac Plugs Solve Them

Limitations of Traditional Methods

It is well known that cement plugs and retrievable packers have problems. Cement placement needs to be done quickly and can go off track, and retrieving the packers takes time and costs money. In wells with laterals deeper than 10,000 feet, these methods can add days of shut-in time per pad, which cuts into the margins for completion.

How Modern Isolation Tools Address These Issues

These gaps can be filled by purpose-built downhole isolation tools that have clear setting loads, designed pressure ratings, and end-of-life choices that can be either drilled out or dissolved. For example, a dissolvable frac plug starts breaking down within hours of the fracture being finished when it comes into contact with reservoir brine. This completely gets rid of the coiled tubing unit. Shale oil and gas companies in the Permian Basin have reported that drill-out removal can cut cycle time by 12 to 24 hours per well.

Real-World Impact on Procurement Decisions

When purchasing managers have to deal with between 20,000 and 300,000 plugs every year across multiple pad programs, the failure rate of isolation hardware directly raises the cost of those programs. One failed plug in a stage can mean that the wellbore needs to be fixed, which can cost more than the inventory of all the plugs in a lateral. This risk is moved from the user to the seller when tools are specified with pressure test records that can be tracked and dissolution data that is available to the public.

Comparison of Frac Plug Solutions for Optimized Procurement

Composite vs. Dissolvable vs. Mechanical: A Technical View

Composite plugs are good for high-volume pad programs because they are cheap per unit and work with many existing setting tools. Dissolvable plug kits get rid of the need to drill out holes. This makes transportation easier in rural or offshore areas, where moving milling equipment around costs a lot of money. Mechanical plugs allow for full retrieval, but they need wireline or coiled tube involvement, which adds time and cost to each step.

Lifecycle Cost and Reliability Factors

The total cost of completion, not just the cost per unit, should be priced by procurement teams. Even if a dissolvable assembly costs 15–20% more than a composite plug, it can still lower the total cost of the well when you count the money saved on drill-out and fluid management. Batch tracking paperwork, like COAs, COCs, and material data sheets, lowers the risk of an audit and speeds up the approval process for new suppliers.

HAGRIEN Frac Plug Assembly: A Specification Benchmark

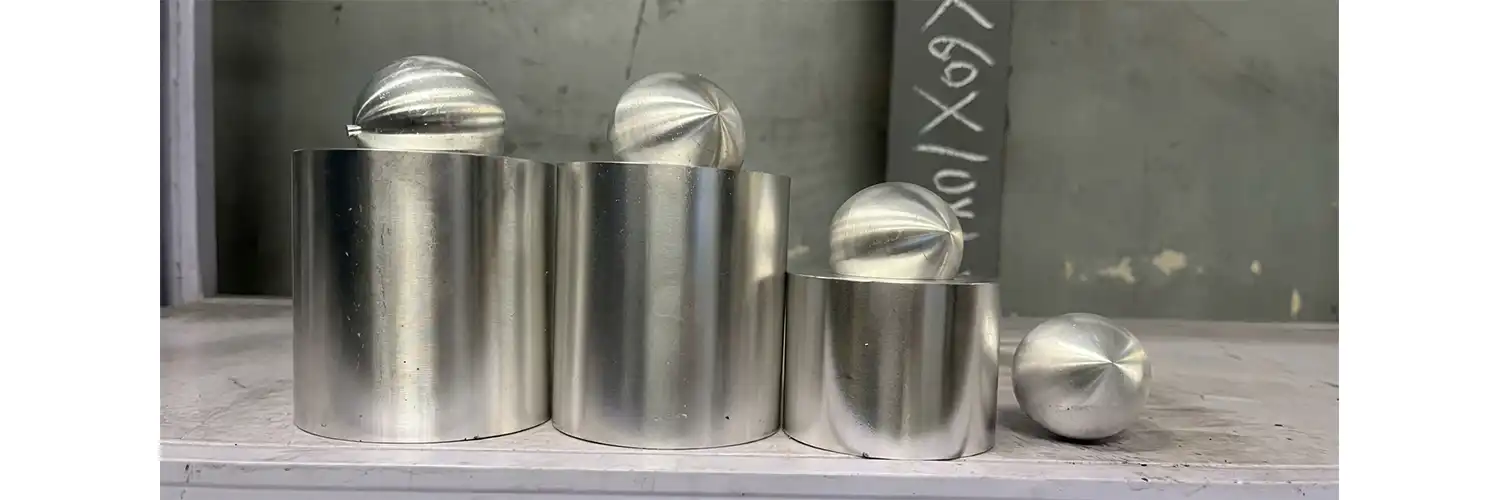

From melting the metal to CNC cutting, the HAGRIEN Frac plug Assembly is made in a closed-loop process. Differential pressure ratings of more than 10,000 psi and temperature resistance from 150°F to 400°F are provided by magnesium alloy construction. Extruded bars can be up to 300 mm long, and each batch can be tracked with a COA, COC, or SDS. It's made for horizontal shale wells, tight-oil reservoirs, and HPHT completion programs that need strong isolation between stages over and over again. The product works with standard industry measurements, which makes it easier for vendors to be approved for standard buying programs.

Best Practices for Frac Plug Installation and Usage in Multistage Fracturing

Pre-Installation Checks That Protect Your Program

It is important to check the setting tool connection, shear pin design, and slip hardness against the wellbore's case grade and weight before putting any plug in it. The Rockwell C scale is often used to check slip hardness and make sure it grips into high-yield casing. Skipping this step is one of the main reasons why plugs come loose too soon and stages fail at high costs.

Here are the most important installation checks that lower danger in the field:

• Setting tool compatibility check: Confirm thread profile and torque specifications match the running string to avoid back-off at depth.
• Pressure test records review: Verify that each lot carries hydrostatic and gas test documentation per ISO 14310 V3–V0 standards before shipment acceptance.
• Dissolution rate validation for dissolvable types: Confirm the dissolution window matches well temperature and brine salinity; dissolution rates vary significantly between 150°F and 300°F.

These steps lower the number of first-run failures and the work that needs to be done to handle field incident reports, which can slow down operations teams' quarterly reviews of delivery.

Operational Parameters to Maintain Stage Integrity

Before perforating, make sure the plug is set to the design hydraulic setting pressure and check the reaction with the surface pressure. Do not put more than the recommended difference pressure on the plug body when it is breaking. This is the main reason why inter-stage contact happens in designs with close cluster spacing.

Supplier Support and Troubleshooting

Teams in charge of buying things should demand that sources give them written plans for how to handle problems in the field. For qualified accounts, HAGRIEN provides engineering-to-spec support, remote troubleshooting, and on-site technical help. Lead times of 2–4 weeks for standard sizes and 4–8 weeks for special specifications allow for planning inventory every three months without having too much on hand.

Future Trends in Frac Plug Technology

Dissolvable Material Advances

New developments in alloy chemistry are making dissolution faster and more reliable in high-temperature and low-salinity settings. Engineered magnesium alloy systems now let providers set dissolution windows that are within ±10% of goal. This is better than the early-generation dissolvable materials, which had a range of ±30%. This gives teams in charge of buying things stronger legal reasons to test acceptance.

Automation and Real-Time Monitoring

Wireless downhole telemetry is starting to show up in high-value HPHT programs. This lets engineers check the depth of the plug setting and the integrity of the seal in real time, before they drill. Cost is still stopping a lot of people from using it, but the trend is toward better stage checking, which lowers the number of times problems need to be fixed.

Procurement Strategy Implications

As the requirements for tools get stricter, supplier qualification paperwork will become more important. Purchasing systems that already need third-party lab validation and COA/COC batch tracking will be better able to use next-generation tools without having to go through long re-qualification processes.

Conclusion

The choice of frac plugs, which are the structural component of plug-and-perf completions, has a direct impact on stage efficiency, downtime, and the overall cost of the well. When buying on a large scale, procurement teams need sellers who can record pressure ratings, keep track of material batches, and deliver on a rolling weekly plan during busy times. From making the alloy to CNC finishing, HAGRIEN's closed-loop production process gives buyers the consistent specifications and detailed paperwork they need to confidently handle large-volume, multi-pad projects.

FAQ

1. How do I select the right frac plug for my well conditions?

Match the plug's rated differential pressure and temperature range to your completion design. For wells above 300°F or with 15,000 psi fracturing stages, specify HPHT-rated assemblies. For extended-reach laterals, dissolvable types remove drill-out risk.

2. What is the expected operational lifespan of a frac plug?

Most plugs are single-use. Composite types are drilled out after the completion; dissolvable types degrade within 24–72 hours at temperature, depending on brine chemistry.

3. Can dissolvable plugs handle high-salinity brine environments?

Yes. Engineered magnesium alloy plugs are formulated for specific salinity ranges. Verify the supplier's dissolution test data against your produced water chemistry before specifying.

4. What documentation should I require from a frac plug supplier?

Request COA, COC, SDS, hydrostatic test records, and dissolution rate data per lot. ISO 14310 compliance documentation supports internal qualification audits.

5. What minimum order quantities should I expect?

Reputable frac plug suppliers maintain safety stock for standard sizes. HAGRIEN offers rolling delivery programs with no punitive minimum order requirements for qualified volume accounts.

Request a Specification-Matched Quote from HAGRIEN

Procurement teams across North America that are running high-volume pad programs can get magnesium-alloy frac plug assemblies and dissolvable isolation tools from HAGRIEN. Our production method includes everything from melting the alloy to CNC machining, and each batch comes with full COA, COC, and SDS paperwork. We offer tiered pricing for yearly volume promises, moving delivery schedules, and OEM/ODM capabilities as a certified frac plug maker that is recognized by API and accredited by the CNAS laboratory. To get a cross-reference and official quote, email our technology team at cyrus@us-hagrien.com or go to us-hagrien.com.
