How to Choose Dissolvable Magnesium Alloy Bars for Frac Plug Manufacturing?

Picking the correct Dissolvable Magnesium Alloy bars for making frac plugs has a direct effect on how quickly and cheaply you finish the job, how much it costs to fix problems, and how productive your well is. The perfect material should have controlled dissolving rates that work with your schedule, keep its shape under high-pressure and high-temperature conditions while it fractures, and dissolve fully afterward to avoid expensive milling operations. We choose based on three important factors: checking the alloy's mechanical strength (tensile and yield), making sure it dissolves quickly and correctly in wellbore fluids, and working with suppliers who offer full traceability and engineering support throughout the entire project lifecycle.

​​​​​​​Introduction

Hydraulic fracturing changed unconventional resource access, but removing temporary isolation tools remains challenging. Traditional bridge plugs require expensive, time-consuming milling, increasing operational risk and delaying production. Dissolvable Magnesium Alloy Plug bars offer a transformative alternative, maintaining mechanical integrity during fracturing then dissolving naturally in wellbore fluids. Since 2019, we have worked with North American operators, seeing how material choice affects field performance and project economics.

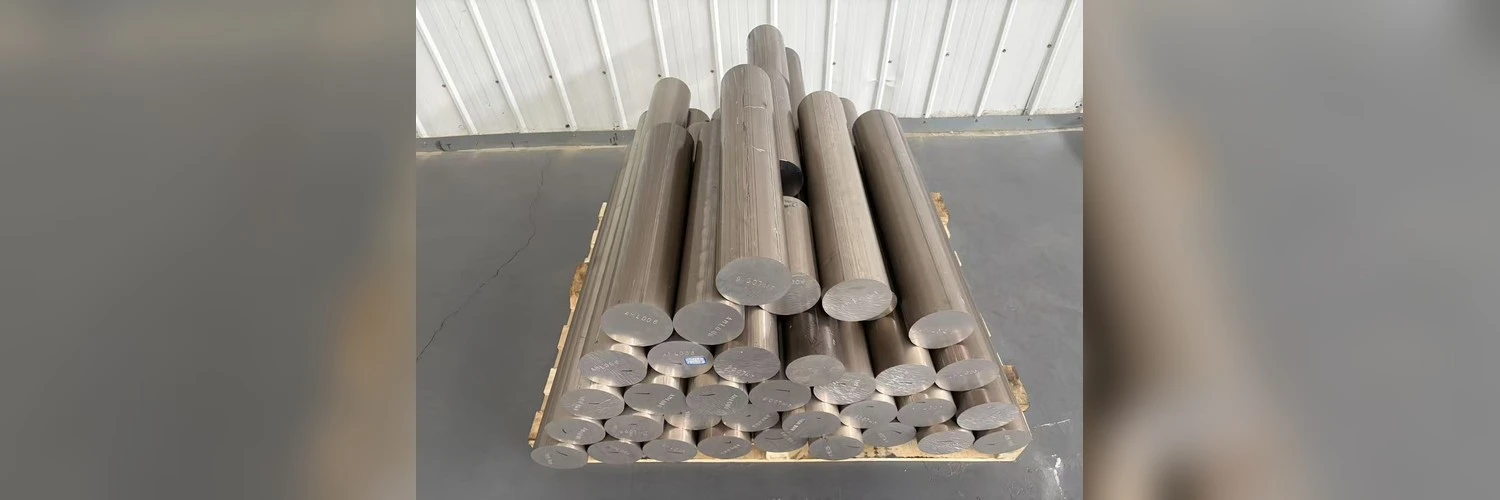

Understanding Dissolvable Magnesium Alloy Bars

What Makes These Materials Unique?

Dissolvable Magnesium Alloy bars are engineered for temporary downhole use, degrading slowly in chloride-rich wellbore fluids like KCl or NaCl brines. Uniform electrochemical corrosion produces magnesium salts and hydrogen gas, ensuring planned breakdown without premature failure. The alloy contains controlled aluminum, zinc, manganese, and rare earth elements for strengthening, grain refinement, breakdown rate modification, and machinability. Heat treatments like T4 or T6 tempers further enhance strength and ductility for varied downhole conditions.

Key Performance Parameters

Tensile strength ranges 240-380 MPa with yield strength 180-300 MPa, handling differential pressures exceeding 10,000 psi during hydraulic fracturing. Dissolvable Magnesium Alloy bars have dissolution rates of 10-200 mg/cm²/h in 3% KCl at 25-150°C. This parameter lets manufacturers predict how long a frac plug maintains integrity before dissolving. The timeline must match production plans—too slow delays well startup, too fast causes premature structural failure during stimulation.

Manufacturing and Processing Considerations

Extruding diameters up to 300 mm enables larger frac plug components with fewer failure-prone joints. The extrusion process affects grain structure, texture, and residual stress distribution, impacting mechanical performance and dissolution uniformity. Process control ensures dimensional stability and surface quality, directly affecting CNC efficiency and scrap rates. Quality suppliers maintain strict process windows with in-process monitoring for batch-to-batch consistency, especially critical when scaling from prototype to full production.

Key Criteria for Selecting Dissolvable Magnesium Alloy Bars for Frac Plugs

Aligning Dissolution Kinetics with Operational Windows

The most important decision factor is the link between the dissolution rate and your working timeline. For completion operations to go smoothly, the frac plug has to stay in place during pumping, which can last for hours at high pressures and flow rates. Once it has been fractured, the plug has to break down within a certain amount of time that doesn't interfere with production. This time frame can be anywhere from 24 hours to 14 days, based on the well design and field procedures.

Temperature, salt, and the makeup of the fluid all have a big effect on how quickly something dissolves. Higher temperatures speed up the rate of rusting, and higher levels of salt make electrochemical reactions stronger. A Dissolvable Magnesium Alloy bar made for a wellbore at 90°C with 8% total dissolved solids (TDS) will act very differently from one made for a 120°C setting with 15% TDS. Your provider should give you dissolution rate data for a range of conditions that are similar to the conditions downhole. This will help you confidently choose the best metal system.

Balancing Mechanical Strength and Ease of Use

Mechanical strength determines if the frac plug survives differential pressure during activation. Higher-strength alloys provide larger safety margins but are harder to machine, increasing tool wear and cycle times. Optimal selection balances these needs through micro-alloying and heat treatment. Evaluate machinability by assessing cutting forces, surface finish, and tool life during drilling, threading, and turning. Test sample bars through your actual machining processes before large orders.

Needs for Traceability and Documentation

Every batch of Dissolvable Magnesium Alloy bars must include a Certificate of Analysis verified by ICP-OES. Mechanical property reports confirm tensile strength, yield strength, and elongation at relevant temperatures. Dissolution rate results predict downhole performance. Batch tracking systems enable traceability from melting through finished machining for rapid root cause analysis. Suppliers with CNAS-accredited labs and ASTM B107/B107M testing demonstrate technical rigor for mission-critical downhole applications.

Regulatory Compliance and Environmental Considerations

Degradation products, primarily magnesium salts, should introduce no hazardous substances to the wellbore or formation. Suppliers must provide Safety Data Sheets for Dissolvable Magnesium Alloy bars. ISO 9001, ISO 14001, and ISO 45001 certifications demonstrate robust quality, environmental, and health management systems. API recognition and HSE compliance indicate operational maturity. These certifications show how the supplier controls processes and manages risks, directly affecting product consistency.

Comparing Dissolvable Magnesium Alloy Bars Next to Other Materials

Advantages Over Traditional Composite Plugs

Traditional composite frac plugs made of phenolic resins, elastomers, and ceramic slips need to be mechanically milled after stimulation, which takes a lot of time and costs a lot of money. During drill-out activities, wellbore debris can get into the output tubing and damage it or block flow paths. There are also practical risks in milling, such as tool strings getting stuck and lost circulation.

These steps are completely eliminated by Dissolvable Magnesium Alloy bars. Once it dissolves, the wellbore goes back to its original width without any mechanical help. This cuts down on downtime and speeds up the start of production. This operating efficiency directly leads to better well economics, especially in horizontal wells with multiple stages where dozens of plugs would otherwise have to be made one after the other.

Trade-offs Compared to Cast Iron Plugs

Cast iron bridge plugs offer high strength and low cost but don't mill out completely. Residual iron fragments impede fluid flow and cause production equipment wear. Cast iron lacks predictable dissolution, preventing no-intervention completion methods. Dissolvable Magnesium Alloy bars dissolve completely, leaving no solid waste. Although per-pound material cost may exceed cast iron, net savings from eliminated milling and rig time are substantial, with predictable production scheduling.

Competitive Positioning Against Other Dissolvable Metals

Aluminum-based dissolvable metals require harsher chemical environments and may leave oxide residues. Galvanic systems accelerate dissolution but increase manufacturing complexity. Magnesium-based systems remain industry standard due to favorable mechanical performance, predictable dissolution, and compatibility with standard wellbore fluids. Dissolvable Magnesium Alloy bars have extensive field validation over the past decade. Prioritize proven track records and solid scientific data over unproven alternatives when selecting materials.

How to Evaluate and Partner with Suppliers of Dissolvable Magnesium Alloy Bars?

Assessing Manufacturing Capabilities

Large-scale extrusion using presses of at least 3,600 tons force enables uniform texture in large-diameter Dissolvable Magnesium Alloy bars. Suppliers melting and alloying their own materials have greater chemical composition control than those sourcing pre-cast billets externally. Manufacturing maturity is demonstrated by process monitoring tools, statistical process control, and documented process windows. Batch-to-batch consistency across repeat orders distinguishes commodity providers from technical partners supporting long-term production.

Quality standards and verification tests

Before they are shipped, Dissolvable Magnesium Alloy bars are put through strict testing methods to make sure they meet the requirements. Ultrasound inspection is a type of non-destructive testing that finds internal holes or other problems that could lead to failure before it's supposed to. Scanning electron microscopy study of the microstructure shows that the grains have been fine-tuned and that the secondary phases are distributed evenly. This stops intergranular corrosion irregularities.

Standardized procedures should be used for dissolution rate tests in fluids that are similar to what is found in a wellbore. Suppliers who keep CNAS-accredited labs with the ability to test at high temperatures and pressures can confirm performance in real-life downhole conditions. With this testing infrastructure, providers can also make custom alloys, which means they can adjust the qualities of the material to fit your needs instead of just selling ready-made formulations.

Engineering Support and Customization Flexibility

The best ties with suppliers include more than just getting materials. They also include application engineering help. Suppliers who have designed downhole tools before know how the features of a material affect how well a frac plug works. They can suggest metal systems based on your operating windows, suggest changes to designs to get the best strength-to-weight ratios, and use materials analysis to fix problems in the field.

Customization lets you change both the alloy's makeup and the size of the bars to fit your production methods and performance goals. OEM and ODM relationship models let you work together to create unique formulations that set your frac plug goods apart in the market. Support for prototyping and scalable production lines lower the risk of development when introducing new tool designs or going into new markets in other countries.

Reliability in Logistics and the Supply Chain

Reliable suppliers have clear contact and wait times that can be predicted. Unreliable suppliers make scheduling unclear. Standard sizes kept in safety stock allow for quick sampling and emergency restocking, but custom standards need a production schedule that takes into account the time it takes to get the raw materials, handle them, and check the quality.

It's easier to handle logistics when suppliers are present in both the production areas and the end markets. A supplier with headquarters in China and operations in the US can offer low-cost manufacturing as well as local expert help, faster reaction times, and easier logistics planning. Trade terms that are flexible, such as EXW, FOB, and CIF, allow for different buying tastes and internal financial needs.

Practical Tips for Procurement and Application in Frac Plug Manufacturing

Specification Development and RFQ Processes

Making clear specifications speeds up the response time from suppliers and makes sure that prices meet your real needs. Write down the mechanical qualities you want, such as the minimum tensile and yield forces at the right temperatures. Set goals for the rate of dissolution and list the test conditions that go with them, such as the temperature, salinity, and fluid makeup. Set clear goals for licenses, inspections, and paperwork right from the start.

Before agreeing to production numbers, ask for sample amounts to be checked out first. Samples let you check the accuracy of the dimensions, the quality of the surface, the ability to be machined, and the mechanical performance using your own production methods. This step of approval lowers the chance of finding problems after getting large orders, which saves money on delays and extra work.

Integrating Materials Testing into Manufacturing Workflows

Protocols for incoming checking make sure that the Dissolvable Magnesium Alloy bars that are received meet the requirements for the buy. Dimensional checking checks the straightness, surface finish, and diameter limits. Random sampling for hardness tests is a quick way to see how well heat treatment is working. Keeping the COA paperwork and sample materials allows for tracking throughout the whole production process.

Verification testing on finished frac plugs on a regular basis makes sure that the behavior of the material matches what is expected of the tool. Under artificial fracture loads, pressure testing proves that the structure is solid. Testing for dissolution on representative samples makes sure that the rust behavior has not been changed negatively by cutting or any other secondary processes. Field mistakes that hurt customer relationships and the brand's image can't happen with these quality gates in place.

Managing Inventory and Supply Continuity

To find the right balance between the costs of keeping goods and the risks of losing a supply source, you need to know how lead times change and how demand patterns work. Keeping a smart stock of standard sizes for your most popular frac plug types cuts down on production delays when demand goes up. Just-in-time purchasing for special or low-volume needs keeps working capital from getting stuck in inventory that doesn't move quickly.

Building relationships with providers that keep safety stock and offer fast production choices gives you the freedom to respond to sudden increases in demand or project speedups. Framework deals with agreed-upon volume amounts and delivery windows ensure supply for projects that last more than one year while allowing for changes based on real field activity levels.

Conclusion

When making frac plugs, choosing the right Dissolvable Magnesium Alloy bars means finding the right balance between technical performance, supply chain stability, and total cost of ownership. The right material has regular dissolution rates that work with working schedules, enough mechanical strength for conditions downhole, and industrial properties that make machining as efficient as possible. It's also important to work with suppliers who offer detailed documentation, tech help, and output that can be scaled up or down. Focusing on these factors and doing thorough validation testing lets makers choose materials that improve the dependability of frac plugs, lower the costs of completion, and boost well productivity in a variety of working conditions.

FAQ

1. How long does it take for dissolvable magnesium alloy bars to fully dissolve downhole?

Dissolution time is affected by the type of metal, the temperature of the wellbore, and the chemistry of the fluid. For oilfield brines that are between 90°C and 150°C, the normal range is from 24 hours to 14 days. Higher temperatures and more salt in the water speed up the rate of breakdown. Suppliers should give you dissolution rate curves that were tried in conditions that are similar to your working environment. This will let you accurately predict when something will break down.

2. Can dissolvable magnesium alloy bars maintain integrity during high-pressure fracturing operations?

Yes, if the right option is chosen. Differential pressures greater than 10,000 psi can't break Dissolvable Magnesium Alloy bars, which have tensile strengths between 240 MPa and 380 MPa. The important thing is to make sure that the breakdown window starts only after the pumping operations are over and that the alloy's strength matches the highest pressure loads that you expect.

3. How do I verify the authenticity and quality of dissolvable magnesium alloy bars from suppliers?

Ask for a lot of paperwork, like Certificates of Analysis that show the chemical makeup and are confirmed by ICP-OES, reports on mechanical property tests done at the right temperatures, and tests on breakdown rates in standard fluids. Suppliers with ISO licenses and labs that are approved by CNAS show that their quality systems are mature. By inspecting the goods as they come in and keeping samples from each batch, you can do independent checks and keep track of the whole manufacturing process.

​​​​​​​
