Magnesium Alloy Round Bar: A Complete Buyer’s Guide

When you're evaluating lightweight structural materials for mission-critical applications, understanding what separates a commodity supply from an engineered solution makes the difference between smooth production and costly delays. A magnesium alloy round bar is a cylindrical semi-finished product manufactured from magnesium-based alloys—primarily combined with aluminum, zinc, manganese, or zirconium—designed to deliver exceptional strength-to-weight ratios, superior machinability, and reliable performance in demanding environments. Whether you're specifying components for oil and gas completion tools, aerospace assemblies, or precision electronics, choosing the right material and supplier directly impacts your project timeline, cost structure, and operational risk.

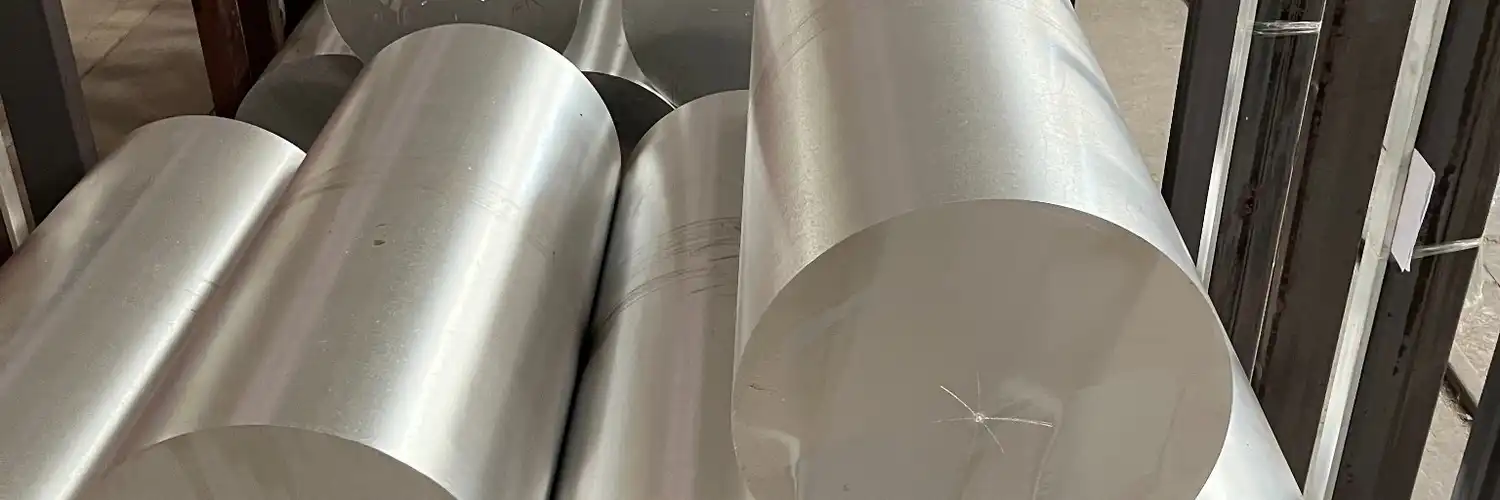

Understanding Magnesium Alloy Round Bars

What Defines a High-Performance Magnesium Alloy Round Bar?

A round bar of magnesium alloy offers the lightest structural metal combined with well managed alloying elements to provide a mix of mechanical strength, corrosion resistance and processing flexibility. Common grades like AZ31B , AZ61A and AZ91D use aluminium and zinc to increase their tensile strength , but yet enable them to be formed readily . The ultimate product will be between 1.74 and 1.83 g/cm3, roughly 33% lighter than aluminium and 75% lighter than steel without losing any of its strength.

That weight advantage translates into actual operational benefits. The mass of pieces influences the moment of inertia in spinning assemblies, the fuel consumption for transportation and the launch cost for space missions. Magnesium is also lighter than the other metals. For applications where heat transmission and shaking control are crucial, magnesium is also ideal since it has a high thermal conductivity (70-96 W/m·K) and a good damping capacity.

Key Mechanical and Environmental Properties

Knowing the technical specifications allows for the procurement teams to better align the capabilities of the material to the application’s requirements. The tensile strengths of AZ31B are in the range of 255 to 290 MPa and the stretch values are in the range of 12 to 21 %. So it may be utilised for pieces that need to be both robust and flexible. AZ61A has superior tensile strength (290-315 MPa) and moderate elongation (10-16%). AZ91D has better hardness (63-90 HB) but less flexibility (3-5% elongation).

Heat treatment has a huge influence on function. Solution annealing increases the flexibility and corrosion resistance of metals, and ageing processes increase their hardness and strength. Direct influence on fatigue life is controlling the grain structure via extrusion settings and heat processing. This is an essential item to consider for downhole equipment and aircraft parts that are loaded and unloaded multiple times.

How Magnesium Compares to Aluminum, Steel, and Titanium

Often, what we decide to purchase is very much a function of comparative performance. Aluminium is more corrosion resistant than magnesium in coastal environments, although magnesium is more vibration dampening. Steel is stronger under tension but it makes for heavier constructions and the weight adds up over time. Titanium is incredibly robust and resistant to corrosion, but is quite costly and difficult to process.

Magnesium is excellent for applications where weight savings immediately benefits system performance . Like in aeroplane frames , automotive steering components and portable electronics . It can be machined. It can be cut at quicker rates, tighter standards and with less tool wear. This decreases the cost per part while in high-volume manufacture. The lower weight and quicker processing of magnesium may frequently compensate for the higher material prices compared to steel or aluminium in terms of total cost of ownership.

Applications and Advantages of Magnesium Alloy Round Bars

Where Magnesium Delivers Measurable Impact

When every gram counts, the strategic value of Magnesium alloy round bars becomes clear. In oil and gas completions, dissolvable magnesium parts get rid of the need for expensive fishing by melting automatically when they've done their job. Engineered magnesium alloys are used to make bridge plugs, frac balls, and temporary isolation tools that can hold all the weight during fracturing operations and then dissolve completely in the fluids in the wellbore, leaving no obstruction and eliminating the need for intervention costs.

Magnesium's high strength-to-weight ratio is used in helicopter transmission housings, satellite structure parts, and airplane seat frames, among other things. The material naturally reduces vibrations, which extends the life of worn-out parts and lowers noise levels inside. In the field of automobile engineering, magnesium round bars are made into steering columns, seat frames, and motor parts. Less rotational inertia makes the vehicle go faster, and absorbing crash energy makes passengers safer.

Precision electronics and robotics require stiffness without the weight. Magnesium is helpful for the construction of drone frames, professional camera housings and robotic arm constructions, since it can sustain structures and prevent electromagnetic radiation. The material retains its structure when temperatures vary , and helps to remove heat from closely packed electronics ( this is vital for keeping messages intact in challenging electromagnetic environments ) .

Quantifiable Advantages Over Competing Materials

In addition to benefits that are specific to a given application, Magnesium alloy round bars offer quantifiable benefits that have an effect on overall performance. In transportation applications, lowering weight directly leads to higher fuel efficiency—a 10% drop in mass usually saves 6–8% of fuel over the life of a vehicle. In the aerospace industry, every kilogram saved on structural parts means more payload or a longer range.

Sustainability factors are becoming more and more important in purchasing decisions. It is possible to recycle magnesium completely, and the energy needed for reprocessing is much lower than the energy needed for creation. It is found in large amounts in seawater and mineral reserves, which makes sure that there will always be enough of it. This lowers the global risks that come with getting other specialty metals.

More efficient manufacturing is achieved by making things easier to machine. It is possible to cut magnesium three to five times faster than aluminum, and the cutting forces are lower and the tool life is longer. This means shorter cycle times, lower tooling costs, and less scrap, which is especially helpful in oil and gas tool making, where output is high-mix and low-volume.

How Magnesium Alloy Round Bars Are Made

Manufacturing Process and Quality Control

Magnesium is made from basic magnesium extracted from seawater or mineral ores. Then it is combined with alloying ingredients in certain proportions. The melt is poured into billets . The billets are driven through hot dies . These are heated to 300 to 450 C . The grain structure and the tensile properties are a function of the extrusion pressure, die shape and the pace of cooling of the material.

Large diameter capabilities offer additional challenges to the production process. Magnesium alloy round bars up to 300 mm with a homogeneous microstructure need rigorous temperature control across the cross-section of the billet, carefully regulated extrusion rates and controlled cooling to minimise internal tensions and physical deformation. By controlling these factors, producers can make sure that each batch behaves the same, which is particularly crucial when considering whether to employ materials in safety-critical scenarios.

There are quality assurance protocols that examine the chemistry and the performance. The composition of the alloy is confirmed to fulfil the criteria of ASTM B107/B107M by ICP-OES (Inductively Coupled Plasma Optical Emission Spectrometry). Ultrasonic defect detection may reveal holes or other features within a structure that may degrade it. The mechanical characteristics are evaluated by tensile testing. The grain size and microstructural homogeneity are evaluated by metallographic inspection.

Certifications and Traceability

More and more, B2B procurement needs proof that can be documented. ISO 9001 approval shows that a company follows the rules for a quality management system. ISO 14001 and ISO 45001 deal with promises to the environment and worker health. Testing in a lab that is accredited by CNAS verifies the properties and claims of a material in a way that is recognized around the world.

Each package comes with a material certification (COA/COC) that lists the heat numbers, chemical analyzes, mechanical test results, and checks of the dimensions. This makes it easier to check the qualifications of suppliers, do internal tests, and make sure that regulations are being followed. This is especially important in oil and gas uses where a broken part can have serious safety and environmental effects.

Practical Machining and Fabrication Considerations

Downstream manufacturing benefits from magnesium's good grinding properties, but it needs to be handled in a certain way. Cutting fluids made for magnesium stop decomposition, and sharp tools and enough chip space keep heat from building up. Fine particles can be avoided by ensuring proper air, and storing things in low-humidity areas will keep the surface from oxidizing, which can damage the bonding of coatings.

When figuring out how much something will bend under load, design engineers should take into account that magnesium has a lower elastic modulus (45 GPa) than steel (200 GPa). Its higher thermal expansion coefficient (26 × 10⁻⁶/°C) needs to be taken into account when putting together parts made of different materials. In harsh environments, surface treatments like anodizing, chromate conversion coatings, and organic coatings make metals less likely to rust.

Comparing Magnesium Alloy Round Bars with Alternatives for Procurement Decisions

Performance Metrics That Drive Material Selection

When choosing building materials, procurement teams have to think about a lot of different things. A lot of the time, people talk about reducing weight, but a full review looks at things like strength-to-weight ratio, wear resistance, corrosion behavior, thermal qualities, and total lifetime cost. Magnesium alloy round bars work best in certain performance ranges that match up with aircraft structures, oil and gas completion tools, and industry parts that need to be light.

AZ31B magnesium has a tensile strength of 255 to 290 MPa and a density of 1.77 g/cm3. 6061-T6 aluminium has a tensile strength of 310 MPa and a density of 2.70 g/cm3. Magnesium is 35 percent lighter than aluminium, while retaining 82 to 94 percent of the strength of aluminium. Magnesium is 25-30% stronger than aluminium, 300% stronger than steel and almost as strong as titanium at a fraction of the cost in terms of specific strength (strength to weight ratio).

Corrosion resistance is dependent on the environment and the surface finish. Aluminium naturally generates an oxide coating to protect it from the air, while magnesium has to have its surface cleaned so it doesn’t rust over time. Dissolvable magnesium alloys are designed to degrade in downhole applications . This converts a liability into an asset by obviating recovery activities .

Cost and Supply Chain Factors

The cost of materials is only one part of the total cost of acquisition. Magnesium is more expensive as a base material than aluminum or steel, but it has advantages in handling, saves weight, and works better. Better machinability lowers the costs of manufacturing tools and labor. Getting rid of extra weight cuts down on shipping costs and makes things run more smoothly in their final use.

Project risk is affected by how reliable the supply chain is. Multi-tier supply delays are less likely to happen when you work with vertically integrated producers who handle melting, extruding, and finishing of alloys. For regular orders, suppliers keep safety stock of standard sizes with lead times of 2–4 weeks. For custom specifications that need alloy matching or special process parameters, lead times are usually 4–8 weeks, but there are options to speed things up for important projects.

Industry-Specific Selection Criteria

Dissolution control, mechanical strength over the service life, and recorded tracking are the most important things in oil and gas completion uses. Dissolvable Magnesium alloy round bars must exhibit known degradation rates that are adjusted to wellbore conditions (temperature, salinity, pH) while preserving structural integrity during finishing operations. Testing and batch documentation that is approved by CNAS help meet qualification requirements and operational safety protocols.

Weight reduction, fatigue resistance, and quality system compliance are all important in aerospace procurement. To support airworthiness documentation, parts need thorough material certifications, records of non-destructive tests, and full traceability. Suppliers that are recognized by API and have well-established HSE systems show that they have the process control needed for aerospace-grade output.

Automotive applications have to match efficiency needs with cost goals. For high-volume production, materials must have uniform qualities from batch to batch, be easy to machine, and have prices that are competitive. Suppliers that offer engineering help for choosing alloys and improving processes can help automakers deal with problems caused by material substitution and shorten the time it takes to get qualified.

Buying Guide: Procurement, Suppliers, and Logistics

How to Identify Qualified Magnesium Alloy Round Bar Suppliers

Select vendors who have integrated manufacturing, well-known quality certifications and industry credentials. Chemical / Mechanical Property Validation: Accredited lab reports, batch traceability, COAs and COCs. Give preference to manufacturers that have a proven track record in big diameter, consistent microstructure, production control and industrial case studies.

Understanding Ordering Logistics and Customization Options

Standard grades and sizes of magnesium usually need minimum orders of 500 kg to 1,000 kg, with special alloys or bigger bars requiring greater quantities. customisation allows tailoring of alloy composition and processing for particular dissolving rates. The price varies on testing, lead time, volume and customisation. Long term contracts may enhance price and capacity allocation.

International Procurement and Logistics Considerations

International procurement involves precise Incoterms, proper export documentation and coordinated shipment. FOB, CIF and EXW provide distinct levels of cost and responsibility. Suppliers are required to supply invoices, packing list, origin verification, HS codes and certificates. The sea takes an additional 3-4 weeks, whereas air is 7-10 days, but more money.

After-Sales Support and Long-Term Partnership Value

After-sales technical assistance helps to address the problems of processing, machining and surface treatment, saving the development cost and speeding up the production. Non-conformances should be addressed and failure analysis should be supported by responsive providers using CAPA. Capacity planning, raw-material strategies, financial stability and customer variety are indicators of stable relationships and reduced procurement risks for long-term projects.

Conclusion

Technical performance, quality assurance, and supply chain dependability must all be considered when choosing a Magnesium alloy round bar supplier. The properties of the material, such as its alloy composition, mechanical strength, and ability to dissolve, must match the needs of your application. Controlling the manufacturing process, especially for large-diameter bars, has a direct effect on the success of later processing and the accuracy of each batch. Commodity suppliers are different from strategic partners because they offer full certifications, documented traceability, and quick technical support. You can help your procurement team get reliable goods that meet project deadlines, keep costs low, and reduce operational risk by using these criteria to evaluate providers and making your needs clear.

FAQ

1.What are typical lead times when ordering magnesium alloy round bars?

When buying Magnesium alloy round bars, what are the usual wait times? Standard sizes in popular metals (AZ31B, AZ61A) usually ship within 2–4 weeks of order confirmation from sources who keep safety stock. Custom specifications that need alloy changes, special heat treatment, or large diameters usually take 4–8 weeks, which includes planning production, processing, checking quality, and making sure all the paperwork is ready. Depending on production capacity and availability of raw materials, faster delivery may be possible. Talk about your timeline needs early on in the quotation process. When you send goods internationally, it takes an extra three to four weeks by sea or seven to ten days by air. Planning purchases around project goals and giving yourself enough time to spare keeps your plan from getting thrown off.

2.How does corrosion resistance of magnesium alloys compare to aluminum?

Aluminum naturally makes a protective oxide layer that keeps it from rusting in the air without any extra treatment. For long-term safety in corrosive settings, magnesium needs to have its surface treated with chromate conversion, anodizing, or organic coatings. When properly treated, magnesium works well in many situations, but aluminum is usually better at resisting corrosion in wet or marine environments. Dissolvable magnesium alloys turn this limitation into a practical advantage—they are designed to break down slowly in certain fluid conditions, so oil and gas workers don't have to go back and get tools. When properly defined, corrosion needs can be met by application-specific surface treatments and metal choice.

3.Can magnesium alloy round bars be customized for specific applications?

There are many ways to customize something. Dimensional specifications allow for diameters, lengths, and tolerances that aren't standard. For uses that need to dissolve, the alloy's makeup can be changed to find a good balance between strength, ductility, and dissolution rate. Protocols for heat treatment change the material qualities to meet the needs of an application. Surface treatments make things less likely to rust or get ready for coatings that will come later. The most customization options are available from suppliers who have expertise in both manufacturing control and application engineering. Talk about your working conditions, performance needs, and qualification limits as soon as possible. Collaborative material selection cuts down on development cycles and speeds up deployment times while making sure that the performance of the material fits your real service environment.

Partner with HAGRIEN for Certified Magnesium Alloy Round Bar Solutions

For demanding applications where performance and supply chain dependability cannot be compromised, HAGRIEN provides Magnesium alloy round bar materials. We can make everything in-house, from heating alloys to extruding them thru Ø300 mm holes and then precision-machining them. This makes sure that each batch is the same and the right size, which lowers the risk of problems later on in the process. With ISO 9001/14001/45001 certification, CNAS-accredited testing, and more than 7 years of ongoing production experience, we give buying teams the technical help and written traceability they need to be successful with qualification. Standard materials ship in two to four weeks, while customized dissolution rates and engineering solutions made for a specific application ship in four to eight weeks, with options for faster delivery. Our responsive engineering support and quality-first approach help you meet project deadlines while keeping costs low, whether you need dissolvable downhole tools, aerospace parts, or precision industrial parts. Contact our team at cyrus@us-hagrien.com to talk about your needs with a Magnesium alloy round bar manufacturer who has a lot of experience and knows both the metallurgy and the timeline for your application.

References

1. American Society for Testing and Materials. (2021). Standard Specification for Magnesium-Alloy Extruded Bars, Rods, Profiles, Tubes, and Wire (ASTM B107/B107M-13). West Conshohocken, PA: ASTM International.

2. Mordike, B. L., & Ebert, T. (2001). Magnesium: Properties—applications—potential. Materials Science and Engineering: A, 302(1), 37-45.

3. Friedrich, H. E., & Mordike, B. L. (2006). Magnesium Technology: Metallurgy, Design Data, Applications. Berlin: Springer-Verlag.

4. Polmear, I. J., StJohn, D., Nie, J. F., & Qian, M. (2017). Light Alloys: Metallurgy of the Light Metals (5th ed.). Oxford: Butterworth-Heinemann.

5. Avedesian, M. M., & Baker, H. (Eds.). (1999). ASM Specialty Handbook: Magnesium and Magnesium Alloys. Materials Park, OH: ASM International.

6. SAE International. (2018). Aerospace Material Specification: Magnesium Alloy Bars, Rods, and Wire (AMS 4377). Warrendale, PA: SAE International.
