One-Time Setting Tool for Reliable Wireline Bridge Plug Operations

In wireline bridge plug operations, the setting process directly affects plug anchoring, pressure integrity, and overall completion efficiency. A bridge plug may be well designed, but if the setting tool cannot generate stable and controlled force, the final downhole result may still be uncertain.

That is why HAGRIEN developed the HGRNST001 One-Time Setting Tool — a compact, ignition-driven setting tool designed for wireline bridge plug operations. It connects the bridge plug and wireline cable during deployment, helping operators complete plug setting and release actions through controlled gas pressure generation.

Why the Setting Tool Matters in Bridge Plug Operations

During hydraulic fracturing, temporary isolation tools are often deployed stage by stage. Each plug must be placed at the correct depth, set reliably, and maintain pressure during the operation. Any instability during setting may lead to poor anchoring, incomplete sealing, or additional intervention risk.

A reliable setting tool helps operators improve three key aspects:

First, it supports controlled plug deployment. The bridge plug needs sufficient force to complete anchoring and sealing inside the casing.

Second, it helps reduce operational uncertainty. A compact and purpose-designed structure makes the setting process more predictable.

Third, it improves compatibility with wireline operations. For many completion programs, wireline deployment remains an efficient method for plug placement, especially when speed and repeatability are important.

Designed for Wireline Bridge Plug Setting

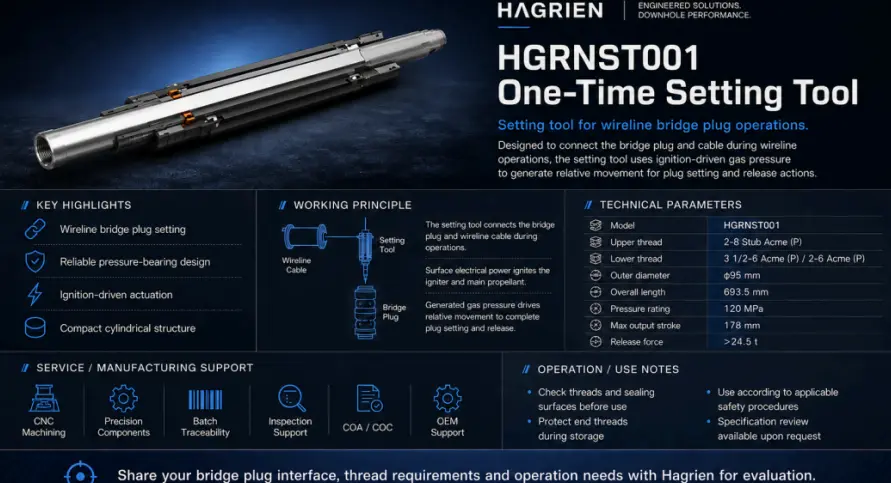

The HGRNST001 One-Time Setting Tool is designed to connect the bridge plug and cable during wireline operations. The tool uses ignition-driven actuation. Surface electrical power ignites the internal igniter and main propellant, generating gas pressure to drive relative movement and complete plug setting and release.

This working principle makes the tool suitable for bridge plug operations where a compact structure, clear output action, and reliable pressure-bearing design are required.

Key Product Highlights

The HGRNST001 One-Time Setting Tool is built around practical downhole operation needs.

It features a wireline bridge plug setting design, supporting plug deployment in wireline operations. Its reliable pressure-bearing structure helps maintain mechanical stability during the setting process. The ignition-driven actuation system provides the power source required for plug setting and release. Its compact cylindrical structure supports easier integration with bridge plug assemblies and related downhole tools.

For operators and procurement teams, these features are not just technical descriptions. They are closely related to job reliability, tool compatibility, and completion efficiency.

Technical Parameters

These parameters can support engineering evaluation before procurement. For bridge plug programs, HAGRIEN recommends confirming bridge plug interface, thread requirements, casing size, setting force demand, and operating procedures before final selection.

Manufacturing and Engineering Support

HAGRIEN supports completion tool projects with more than a standard product supply model. For bridge plug and setting tool applications, we provide support in:

· CNC machining

· Precision components

· Batch traceability

· Inspection support

· COA / COC documentation

· OEM support

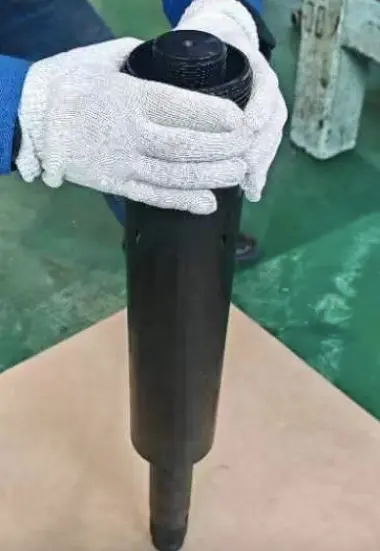

This allows customers to communicate not only the tool model, but also the actual bridge plug interface, thread requirements, and operation conditions. For projects involving dissolvable bridge plugs, customized components, or different completion tool assemblies, this engineering communication is especially important.

Application Scenarios

The HGRNST001 One-Time Setting Tool is suitable for wireline bridge plug operations where reliable setting and release actions are required. It can be used in completion programs involving bridge plugs, temporary isolation tools, and related downhole assemblies.

Typical application needs may include:

· Wireline bridge plug setting

· Temporary isolation operations

· Fracturing completion support

· Bridge plug deployment programs

· Matching evaluation with customized bridge plug interfaces

For different projects, customers are advised to share their bridge plug interface, thread requirements, casing information, and operation requirements with HAGRIEN for technical evaluation.

Why Work with HAGRIEN

Bridge plug operations require more than a single product. They require material understanding, machining capability, component matching, and engineering communication.

HAGRIEN focuses on dissolvable magnesium alloy materials, completion tool components, dissolvable bridge plug solutions, rubber elements, and setting tools. By combining material support, CNC machining, inspection documentation, and OEM service, HAGRIEN helps customers reduce communication gaps between material selection, tool design, and field application.

Talk to HAGRIEN

If you are evaluating a setting tool for wireline bridge plug operations, please share your bridge plug interface, thread requirements, casing size, pressure demand, and operation needs with HAGRIEN.

Our team can help review the application and provide technical evaluation based on your project requirements.

Need a setting tool for your bridge plug operation?

Share your bridge plug interface, thread requirements, casing size, pressure rating, and operation needs with HAGRIEN. Our engineering team will review your application and provide technical evaluation.
