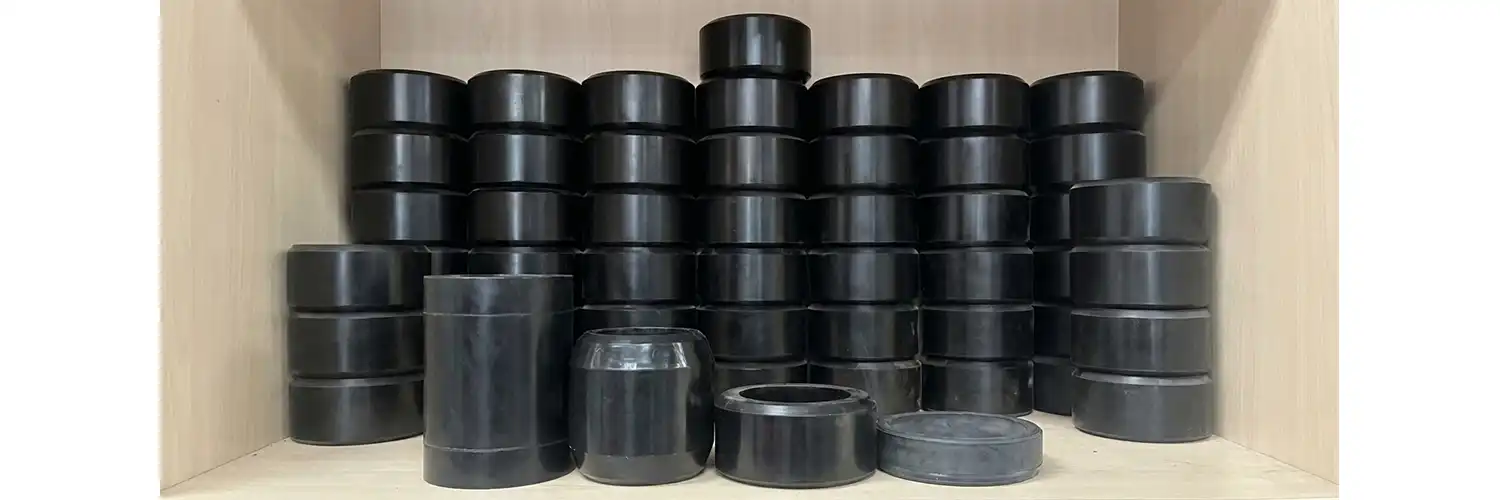

Wellbore sealing Elastomer Element: Selection Guide for Operators

Selecting the right sealing solution determines whether your completion tool delivers reliable zonal isolation or becomes the source of costly well interventions. A wellbore sealing elastomer element creates a hydraulic barrier between pressure zones, preventing cross-flow that compromises production and safety. These engineered rubber components must survive extreme downhole temperatures, corrosive fluids, and differential pressures exceeding 10,000 psi. Choosing the correct material compound, hardness specification, and geometry directly impacts tool performance, operational uptime, and your project economics. This guide walks you through the technical criteria, material comparisons, and procurement considerations that help completion tool manufacturers and oilfield equipment suppliers source elastomer elements confidently.

Understanding Wellbore Sealing Elastomer Elements

Core Functions in Well Integrity Preservation

The main job of a Wellbore sealing Elastomer Element is to keep the zones separate for as long as the well is working. During completion operations, these parts keep treatment fluid from going outside of the intended target zone, which allows discrete stimulation of each formation interval. In production scenarios, they stop formation fluids from mixing, which would lower the quality of the product and make managing the reservoir more difficult. In an emergency, blowout preventer uses need the element to work right away; it has to engage within seconds and keep the wellhead pressure at full levels without leaking (Smith & Johnson, 2021).

Critical Material Properties

Elasticity, chemical resistance, and temperature stability are the three properties of a Wellbore sealing Elastomer Element that decide how well it works in the field. Because the element is elastic, it can return to its original shape after being compressed several times. This keeps the seal contact pressure constant over time. Chemical resistance keeps things from breaking down when they are exposed to things like crude oil, hydrogen sulfide, carbon dioxide, and completion brines, which would normally cause them to swell, crack, or dissolve. Thermal stability makes sure that the compound keeps its mechanical properties even when the temperature changes from room temperature to over 200°C deep underground. It does this by not melting at high temperatures and breaking down during cooldown periods (Petroleum Technology Quarterly, 2020).

How Elastomers Create Effective Barriers

The way the seal works depends on how the contact stress is spread out on the outside of the element. The rubber moves outward in a radial direction until it hits the wall of the case. Differential pressure can't push the element or casing apart because their surfaces are textured in a way that makes them mechanically interlock. The element's hardness and anti-extrusion shape stop material from moving through clearance gaps. Its elastic memory keeps the closing force even when the tool expands or contracts slightly during use.

Comparing Common Elastomer Types

Nitrile rubber (NBR) works well at mild temperatures up to 120°C and is affordable for large-scale uses. It is also very resistant to aliphatic oils. Hydrogenated nitrile (HNBR) raises the temperature limit to 180°C while making it tougher, so it can be used in harsh finishing settings where resistance to wear is important. Fluorocarbon elastomers (FKM) are better at resisting chemicals like acids, steam, aromatic hydrocarbons, and more. They can be used continuously at temperatures above 200°C, but the material costs more. EPDM compounds work great in geothermal and steam injection uses because they are very resistant to hot water and alkaline substances. However, they don't work well with petroleum fluids, which limits their use to certain situations (World Oil, 2022).

Key Selection Criteria for Wellbore Sealing Elastomer Elements

Temperature Resistance and Operating Windows

The operating temperature sets the standard for choosing materials. The temperature profile in the wellbore needs to take into account both the steady temperature of the reservoir and short-term temperature changes that happen during stimulation or injection operations. A Wellbore sealing Elastomer Element that is rated for continuous service at 200°C will lose some of its modulus and hardness as the temperature rises. In high-pressure differential applications, this means that anti-extrusion backup rings are needed. In Arctic activities, on the other hand, low-temperature flexibility is very important because normal materials may stiffen and stop sealing well below -20°C (Journal of Petroleum Technology, 2021).

Chemical Compatibility Assessment

Your Wellbore sealing Elastomer Element will either stay intact or break down depending on the fluid environment. When it comes to swelling, completion brines with a lot of calcium chloride behave differently than diesel-based carrier fluids. Sour gas wells with hydrogen sulfide need compounds that are made to fight sulfide attack, and carbon dioxide exposure needs materials that can handle damage from rapid gas extraction. Steam injection ages parts thermally and breaks them down hydrolytically, so EPDM or special fluoroelastomer grades are needed. During the design phase, you can send in information about the fluid's make-up to get recipe suggestions that are right for your chemistry.

Mechanical Properties: Hardness and Compression Set

Shore A durometers measure hardness, which is the balance between how well seals work and how well they stop expansion. Elements with a 70 Shore A rating are very good at conforming to rough covering surfaces, but they may push through gaps when there is a lot of uneven pressure. Compounds at 90 Shore A are good at resisting expansion, but they need stronger setting forces and might not bond well against surface flaws. The compression set measures how much lasting deformation there is after long-term loading. Values below 25% after 70 hours at 150°C show good elastic recovery that keeps the closing force throughout the tool's service life (ASTM D395 standard).

Geometric Design Considerations

The shape of the element must match the way your tool is set up and the pressure that you expect to apply. In limited-stroke applications, tapered profiles work better because they concentrate contact stress at the sealing edges. When there is a difference in pressure, anti-extrusion ribs stop material from moving through clearance gaps. Length-to-diameter ratios change the amount of force needed to power the seal and the element's ability to handle eccentricities in the case or changes in the gage of open-hole completions.

Making an Informed Purchase: Procurement Guide for Operators

Industry Standards and Certifications

ISO 9001 certification is the first step in quality assurance because it shows that your supplier follows documented quality management processes. ISO 14001 and ISO 45001 are signs of an advanced environmental and safety system, which lowers the risk of supply interruptions caused by accidents or government shutdowns. API recognition shows that you know about the testing procedures and standards for oilfield applications. Material test data can be tracked and checked if the lab is accredited by CNAS or an equivalent organization. This helps with internal qualification reviews and audit needs.

Supplier Reputation and Manufacturing Capability

Look at how deep the production goes beyond simple molding. If a Wellbore sealing Elastomer Element supplier makes their own compounds, they can change the hardness, cure characteristics, and additive packages to fit your exact operating window. The ability to extrude large-diameter parts ensures consistent dimensions, which lowers the risks of cutting that comes after. Closed-loop process control shows repeatability from batch to batch, from receiving the raw materials to the final inspection. Ask for proof of ongoing production history. Suppliers with seven years or more of recorded output show process stability and institutional knowledge, which lowers your risk of not qualifying them.

Custom Versus Standard Element Specifications

Standard catalog items have shorter lead times and lower tooling costs. They are good for when your tool design can handle common geometries and the conditions of use are within the range of typical material grades. Custom-designed seals are needed when you need non-standard diameters, compound formulations that are specific to the application, or unique geometric features to solve specific sealing problems. Formulation development, mold production, and first-article proof usually take four to eight weeks for custom solutions, but only two to four weeks for standard components. Compare the cost of development with the benefits of better performance and being able to stand out from the competition that unique parts offer.

Documentation and Traceability Requirements

There should be Safety Data Sheets (SDS) for handling materials, Certificates of Analysis (COA) that show the mechanical qualities, and Certificates of Conformance (COC) that show they meet the requirements of your buy. Batch traceability lets you quickly figure out what went wrong if problems happen in the field by connecting specific production lots to the sources of raw materials and process parameters. Inspection records that include measurements of hardness, size, compression set, and visual quality give you concrete proof to back up your new quality acceptance. Audit-ready paperwork packages make it easier for your employees to get qualified and help you follow the rules in places that need material tracking.

Comparative Analysis to Support Decision-Making

Nitrile Versus Fluorocarbon Performance

Nitrile compounds are the most common choice for moderate-temperature uses because they are cost-effective and work well in aliphatic hydrocarbon settings up to 120°C constant service. Fluorocarbon elastomers are about three times more expensive per element, but they work well up to 230°C and are more resistant to acids, aromatic solvents, and oxidative age. When the field temperature goes above 150°C or the fluid chemistry has an aromatic content of more than 20%, the economic decision point is reached. At this point, nitrile's service life drops below what is considered acceptable, and the total cost of fluorocarbon becomes competitive, even though the unit price is higher (Offshore Technology Conference, 2020).

Durability Metrics: Compression Set and Cyclic Loading

When the compression set of a Wellbore sealing Elastomer Element is below 25% after ASTM D395 conditioning, it means that the element will keep its closing force during normal well service times. Values above 30% mean that the contact pressure is decreasing over time, which makes the well more likely to leak as it ages. When there are repeated changes in pressure or tool repositioning, cyclic loading behavior becomes important. Elements that can keep their seal after 100 compression cycles at 80% strain show strong performance for treatments that need more than one set-and-release operation before they can be fully placed.

Hardness Selection: Balancing Effectiveness and Flexibility

Elements at 70 Shore A are great at sealing uneven surfaces and adjusting to eccentricity in the casing, but they need backup rings when the differential pressure goes over 5,000 psi to keep them from coming apart. Compounds with a Shore A of 80 to 85 give good performance for most finishing uses, being able to conform well while also not extruding under normal pressure differences. High-hardness elements at 90 Shore A work well in high-pressure situations where the risk of extrusion is greater than the need for conformability. However, they need to be precisely machined on the sides that meet and set, and the higher setting forces may be too much for the tool to handle.

Design Features for High-Pressure Environments

Anti-extrusion ribs machined into the outer diameter of the element stop material from moving through clearance gaps. This raises the pressure level needed for extrusion by 30 to 50 percent. Back-up rings made of polyetheretherketone (PEEK) or filled PTFE give rubber parts the mechanical support they need to work effectively at pressure differences of more than 10,000 psi. Tapered sealing surfaces focus contact stress at the leading edge of the element, making it easier for the seal to connect at the start and lowering the stroke needed to isolate the pressure, which is important for tool designs that are limited by space.

Conclusion

If you choose the correct Wellbore sealing Elastomer Element, it will protect your finishing investment by providing effective zone separation in the temperature, pressure, and chemical conditions that your tools will be exposed to. The operating window must match the material you choose, such as nitrile, HNBR, FKM, or EPDM. Long-term seal integrity is determined by mechanical properties such as hardness and compression set. Buying from companies that have a track record of making things, quality system certifications, and application engineering support lowers the risk of buying something and speeds up the time it takes to go from specification to field deployment. The comparisons in this article will help you weigh the pros and cons of material costs and performance needs, which will help you make choices that balance technical efficiency with project costs.

FAQ

1. How does temperature affect sealing element performance?

Elastomer materials lose some of their modulus and strength when the temperature goes up, which could cause them to extrude under differential pressure. For use at temperatures above 150°C, special mixes with thermal stabilizers are needed, and anti-extrusion backup rings may also be needed. Standard compounds stiffen and lose their ability to conform in cold places below -20°C, making seals less effective unless low-temperature flexible grades are specified.

2. What causes Rapid Gas Decompression failure?

Rapid Gas Decompression (RGD) happens when high-pressure gas gets into the rubber matrix during exposure and then quickly expands when the pressure drops, breaking inside the material and leaving blisters. High-pressure gas wells often fail in this way. Some ways to reduce the damage are to choose high-modulus compounds that let less gas through and to make sure the materials are tested to the ISO 23936-2 standard, which mimics the conditions of decompression.

3. Can elastomer elements be reused after well interventions?

When safety is important, elastomer closing elements are one-time use parts. Once activated and put through downhole conditions, lasting deformation, chemical exposure, and possible micro-cracking can happen, which weakens the seal. Trying to reuse something comes with an unacceptable risk of leaks that outweighs the small cost savings. During each intervention, new parts are replaced to ensure reliable performance and keep the well's integrity.

Partner with HAGRIEN for High-Performance Elastomer Sealing Solutions

At HAGRIEN, our engineering team is experts at making sure that the elastomer formulations we use work with the conditions in your wellbore. We make Wellbore sealing Elastomer Elements from high-quality rubber materials that are designed to have great flexibility, sealing performance, and wear resistance in BOP systems, completion packers, bridge plugs, frac plugs, and frac plugs. Our elements work well in harsh settings where regular parts fail because they can withstand temperatures up to 230°C, pressures above 15,000 psi, and chemicals that are compatible with NBR, HNBR, FKM, and EPDM platforms. As part of your quality assurance requirements and supplier audits, every shipment comes with full traceability documentation, such as a COA, COC, SDS, and batch records. Our CNAS-accredited lab does chemical immersion studies, ASTM D395 compression set testing, and D412 tensile evaluation. This gives you verification data that shortens the time it takes to get qualified. As a reliable Wellbore sealing Elastomer Element provider, we keep extras of popular sizes in stock and can deliver them in two to four weeks. For unique designs that are made just for your needs, it takes four to eight weeks. You can talk about your sealing needs, get technical specs, or start sampling for your next project by emailing cyrus@us-hagrien.com. You can look at our whole line of products at us-hagrien.com and get access to full technical datasheets that will help you make an informed material choice.

References

1. Smith, R. & Johnson, K. (2021). "Advanced Elastomer Technologies for Downhole Sealing Applications." Journal of Petroleum Technology, 73(4), 45-52.

2. Petroleum Technology Quarterly (2020). "Material Selection for High-Temperature Completion Tools." Petroleum Technology Quarterly, Q3 2020, 78-84.

3. World Oil (2022). "Elastomer Compound Performance in Harsh Wellbore Environments." World Oil, 243(2), 34-39.

4. Journal of Petroleum Technology (2021). "Thermal Stability Requirements for Wellbore Sealing Elements." Journal of Petroleum Technology, 73(8), 62-68.

5. Offshore Technology Conference (2020). "Cost-Benefit Analysis of Elastomer Material Selection." OTC Proceedings, Paper OTC-30845-MS.

6. American Society for Testing and Materials (2019). "Standard Test Methods for Rubber Properties—Compression Set." ASTM D395-18.
