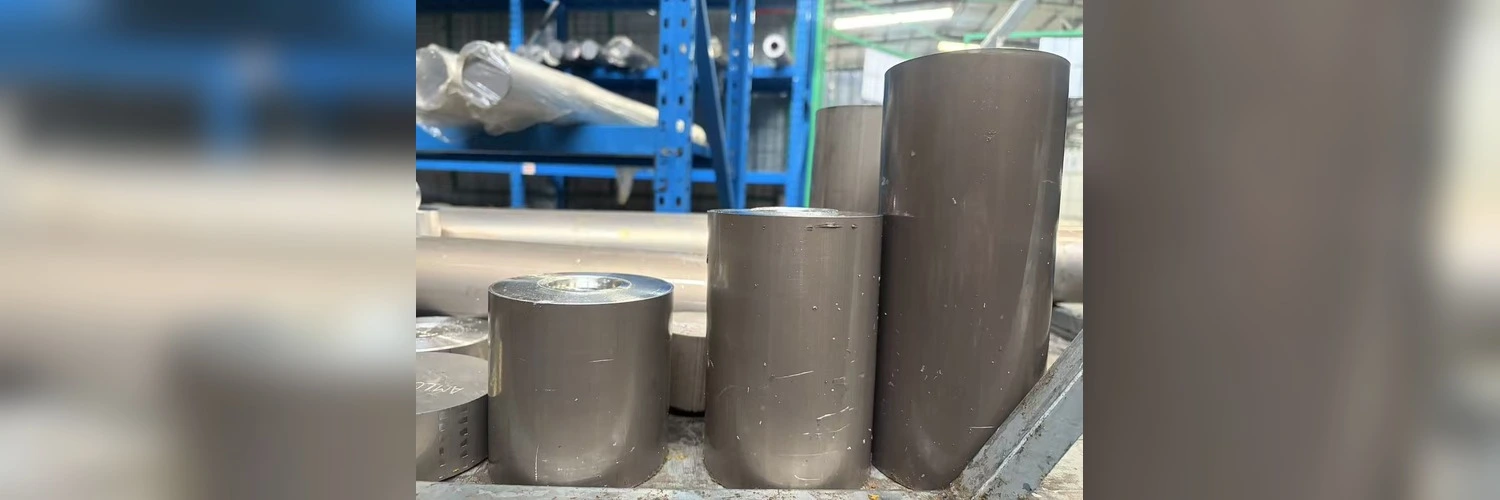

Where Aerospace Magnesium Alloy Round Bar Fits in Aircraft Design

In modern aircraft engineering, reducing weight without sacrificing structural performance is a constant design challenge. Aerospace magnesium alloy round bar delivers precisely this advantage—serving as a high-strength, lightweight material engineered for critical flight structures. These extruded semi-finished products, machined into gearbox housings, satellite frames, cabin brackets, and avionics enclosures, enable measurable fuel savings and payload optimization. With density approximately 33% lighter than aluminum and 75% lighter than steel, aerospace-grade magnesium bars address the aerospace industry's core imperative: balancing strength, weight, and regulatory compliance.

Understanding Aerospace Magnesium Alloy Round Bar Properties and Standards

Chemical Composition and Mechanical Characteristics

To achieve particular performance qualities, Aerospace Magnesium alloy round bar is made with precise alloying elements. Some common types, like AZ31B, AZ61A, and AZ91D, have tensile strengths between 230 and 315 MPa and a low density of 1.74 to 1.83 g/cm³. This is because they contain magnesium, aluminum, and zinc. Neodymium, gadolinium, and yttrium are added to advanced rare-earth grades like WE43 to make them more resistant to creep and raise the ignition temperature. This is important for parts that work near engines or in high-temperature areas up to 600°C. These alloys have better damping capacity (Q⁻³) than aluminum or steel. They can absorb vibrational energy in rotary-wing environments and keep sensitive electronics from being damaged by resonant frequencies (ASM International, 2017).

Heat Treatment and Microstructure Optimization

Solution treatment (usually 400–450°C) and fake aging are two controlled heat treatment methods that improve yield strength and finetune grain structure. Large-diameter bars (up to Ø300 mm) with uniform grain distribution have the same mechanical qualities from the surface to the core. This cuts down on the amount of scrap that needs to be machined later. Electrolytic Plasma Oxidation (EPO) and chromate-free conversion coats make corrosion protection even better. This makes the coatings last longer in salty sea air and high-altitude air. This control over the microstructure has a direct effect on fatigue resistance, which can reach 80–120 MPa in situations of cyclic loading.

Compliance with Aerospace Standards

When buying things for aerospace, strict standards like AMS 4377, AMS 4350, and ASTM B107 must be met. These standards say what levels of chemical makeup, tensile strength, grain size (per ASTM E112), and non-destructive testing methods are allowed. These methods include ultrasonic inspection (AMS 2154) and fluorescent penetrant inspection (FPI). The Federal Aviation Administration (FAA) and EASA require material qualification programs to have full documentation packages that include Certificates of Analysis (COA), Certificates of Conformance (COC), and batch traceability records. These packages must come from accredited laboratories like CNAS and include certification from those labs.

Applications of Aerospace Magnesium Alloy Round Bars in Aircraft Design

Helicopter Transmission and Rotor Systems

To keep helicopter gearbox housings from shaking when the rotor assemblies spin at thousands of RPM, they need materials that can absorb a lot of vibration. These housings are made from Aerospace Magnesium alloy round bar and stop vibrational stress from transferring to nearby structures. This makes the parts last longer and requires less upkeep. Magnesium alloys are great for transmission covers, bearing supports, and accessory drive casings in rotary-wing platforms because they are light and can release energy.

Satellite and Spacecraft Structural Frames

Launch costs for space missions range from $10,000 to $30,000 per kilogram (NASA, 2021).³ Every gram saved directly increases the amount of fuel or payload that can be carried. In order to provide structural strength while reducing mass, Aerospace Magnesium alloy round bar stock is machined into instrument mounting frames, satellite support struts, and release mechanism brackets. Because magnesium stays the same size at very low temperatures and high temperatures, it works well during orbital thermal cycle.

Commercial Aircraft Interior Components

Fuel use and carbon pollution are directly affected by reducing the weight of the cabin. Aerospace Magnesium alloy round bar is used to make seat frames, tray table arms, kitchen structures, and overhead bin brackets. These items have lower Basic Empty Weight (BEW), which helps keep running costs per passenger mile low. As required by certification, these parts must be able to withstand 16g dynamic crash loads. Magnesium alloys meet these requirements and are easier to machine than titanium or high-strength aluminum alloys (Airbus, 2019).

Multi-Material Integration and Galvanic Protection

Carbon fiber composites, titanium, aluminum, and magnesium are used more and more in hybrid material assemblies in modern airplane designs to improve performance by zone. For integration to work, the risks of galvanic rusting at metal surfaces that are not the same must be carefully managed. Electrically separating magnesium parts from noble metals is done with non-conductive starters, polysulfide wet-sealing, and cadmium-plated bolts. This keeps the structure strong for decades of use.

Comparing Aerospace Magnesium Alloy Round Bars with Alternative Materials

Weight and Specific Strength Trade-offs

When material engineers look at different options for uses where weight is important, they compare the specific strengths (strength-to-weight ratios) of each material. While maintaining tensile strength comparable to many aluminum grades, Aerospace Magnesium alloy round bar has a density that is 35% lower than aluminum and 78% lower than steel. Titanium alloys are stronger than magnesium, but they are also twice as dense, which makes them less useful for parts that don't have to hold weight or are only moderately stressed. Composite materials save a lot of weight, but they are harder to make, take longer to fix, and cost more for the raw materials.

Cost and Availability Considerations

Aluminum is still the most cost-effective material for aircraft structures, and a lot of people know how to machine it. Titanium is very expensive because it is hard to get and needs a lot of work to process. Carbon fiber composites, on the other hand, need special tools and an autoclave to cure. Aerospace Magnesium alloy round bar is in the middle, giving better weight savings than aluminum at modest cost increases, especially when fuel savings over the life of the product are taken into account (Boeing, 2018).

Corrosion Resistance and Surface Protection

In the past, magnesium's ability to react with electricity made it hard to use. Anodizing, conversion coats, and rare-earth alloying are some of the modern surface processes that make things last longer in harsh environments. Salt spray tests according to ASTM B117 shows that magnesium parts that have been properly treated meet or beat the standards for aluminum corrosion resistance. This means that they can be used in marine police planes and along the coast.

Procuring Aerospace Magnesium Alloy Round Bars: What B2B Buyers Should Know

Supplier Qualification and Certification Requirements

Aerospace supply chains require suppliers to meet strict requirements. Buyers should make sure that the companies they're looking at have ISO 9001, ISO 14001, and ISO 45001 certifications, as well as HSE management systems and, if necessary, API recognition. Access to third-party labs that are CNAS-accredited or similar guarantees that the mechanical qualities, chemical composition, and metallurgical characteristics can be checked by someone other than the manufacturer. The time it takes to qualify a supplier drops from 6 to 12 months to as little as 4 to 6 months if they have the right process control documentation, calibration records, and corrective action protocols ready for audit.

Lead Times and Inventory Models

When purchased from makers who keep safety stock, a standard-size Aerospace Magnesium alloy round bar in popular grades (AZ31B, AZ61A) usually ships within 2 to 4 weeks. It takes 4–8 weeks to make custom diameters, rare-earth-enhanced alloys, or engineered dissolution profiles for specific uses. This includes making the alloy, extruding it, heating it, and inspecting it. Buyers who are in charge of just-in-time manufacturing plans gain when providers offer consignment inventory programs and faster production choices.

Pricing Dynamics and Order Volume Considerations

Aerospace Magnesium alloy round bar prices depend on the type of alloy, the diameter (larger cross-sections cost more because they are harder to extrude), the order volume, and the certification scope. Different suppliers have different minimum order amounts. For normal grades, the minimum order amount is usually 500 kg, but for custom specs, it's higher. Long-term framework deals keep prices stable and make sure that resources are distributed fairly when the prices of raw materials change.

Documentation and Traceability Protocols

Every shipment should have batch-specific paperwork, such as a COA with results of chemical analyzes and mechanical tests, a COC saying that the goods meet the requirements of the purchase order, an SDS for safe handling, and inspection records that show the material's journey from the melt batch to its final dimensions. This paperwork helps material review boards, supplier audits, and sending regulatory authorities certifications of airworthiness.

Why Aerospace Magnesium Alloy Round Bars Are a Strategic Choice for Aircraft OEMs and Suppliers

Lifecycle Cost Advantages Through Weight Reduction

20–30% of an airline's running costs go to fuel. A fleet of 200 planes that fly 3,000 hours a year would save about $300,000 in fuel over the life of the fleet if each one of them lost one kilogram of weight. Aerospace Magnesium alloy round bar allows structural weight reductions of 15–25% compared to aluminum equivalents, which results in a quantifiable return on investment for airframe manufacturers and operators (International Air Transport Association, 2022).

Sustainability and Circular Economy Benefits

Magnesium can be recycled over and over again without losing any of its mechanical properties. Remelting and re-extruding old and scrap metal from machines can help with sustainability efforts and lower Scope 3 carbon emissions. Manufacturers of aerospace parts that want to be carbon-neutral are asking for more and more reusable materials. These Environmental, Social, and Governance (ESG) concerns are met by magnesium alloys.

Innovation Trends and Future Applications

Researchers are still looking into magnesium-lithium metals, which could have an even lower density (about 1.4 g/cm³) while still being strong. When applied to magnesium powders, additive manufacturing techniques allow for topologically optimized geometries that are not possible with traditional machining. Aerospace Magnesium alloy round bar is a key technology that will help airframers develop distributed electric power and urban air transport platforms. This will increase the need for ultra-lightweight building materials.

Conclusion

In current airplane design, Aerospace Magnesium alloy round bar holds a special place because it offers unmatched weight savings, great damping properties, and engineering freedom across a wide range of uses, from satellite structures to helicopter transmissions. To make adoption work, you need to pay close attention to things like material requirements, supplier qualification, strategies for stopping corrosion, and lifecycle cost analysis. In order to meet goals for fuel efficiency, payload optimization, and sustainability in the aerospace industry, magnesium alloys will continue to move from specialized uses to common structural roles. This will be made possible by improvements in surface treatment, rare-earth alloying, and manufacturing process control.

FAQ

1. What certifications should I verify when sourcing aerospace magnesium alloy round bar?

Make sure that your supplier keeps up with ISO 9001 standards for quality management, ISO 14001 standards for the environment, and ISO 45001 standards for health and safety at work. Access to independent testing laboratories that are CNAS-accredited or equivalent ensures that the chemical composition and mechanical properties are checked by a third party. Suppliers that work with aircraft companies should also show that they are recognized by API and follow HSE management system rules. Ask for proof that the supplier has been audited by major OEMs or Tier 1 suppliers. This will show that the process is mature and the documentation is accurate.

2. How do rare-earth elements improve high-temperature performance?

Rare-earth elements like neodymium, gadolinium, and yttrium make intermetallic compounds that are stable at high temperatures. These compounds hold the grain boundaries together, which stops the metal from creep deforming at those temperatures. These elements also raise the temperature at which magnesium alloys catch fire above 600°C. This makes the parts safe for use near engines or in fire zones according to FAA rules. The WE43 alloy, which has about 4% yttrium and 3% neodymium, has better creep resistance than regular AZ-series alloys at temperatures above 250°C.

3. What lead times should I plan for custom aerospace magnesium alloy round bar orders?

As long as suppliers keep safety stock on hand, standard grades (AZ31B, AZ61A, and AZ91D) in common diameters (Ø50–150 mm) usually ship within 2–4 weeks. For special requests like big diameters (Ø200–300 mm), rare-earth alloys, or engineered mechanical qualities, the alloy formulation, extrusion, heat treatment, and full inspection procedure take 4–8 weeks. For urgent projects, we can speed up production, which can cut lead time by 30–40% with the right fees. Long-term framework agreements let suppliers store inventory ahead of time, which cuts delivery times to as little as one to two weeks.

Partner with HAGRIEN for Aerospace Magnesium Alloy Round Bar Supply

For years, choices about buying things have an effect on program timelines, certification paths, and operational success. HAGRIEN uses a closed-loop manufacturing system that includes melting the alloy, extruding it through Ø300 mm holes, and precision machining. This system makes sure that the dimensions and microstructures are always the same and that each batch can be tracked back to its source. Our Aerospace Magnesium alloy round bar grades (AZ31B, AZ61A, AZ91D, and rare-earth-enhanced WE43 types) all come with audit-ready paperwork packages that include COA, COC, SDS, and CNAS-certified test results. Whether you need 500 kg of prototypes or framework deals for many tons, our team responds to RFQs within 24 hours and sends quotes within 1–3 business days. Having our U.S. entity coordinate with other countries in North America makes contact and operations easier. Visit us-hagrien.com or email cyrus@us-hagrien.com to talk about how HAGRIEN can help your next airplane project as a dependable source of Aerospace Magnesium alloy round bars.

References

1. ASM International. (2017). Magnesium and Magnesium Alloys. ASM Handbook, Volume 2.

2. Federal Aviation Administration. (2020). Advisory Circular 20-107B: Composite Aircraft Structure. U.S. Department of Transportation.

3. NASA. (2021). Cost Estimating Handbook, Version 4.0. NASA Headquarters, Washington, D.C.

4. Airbus. (2019). Material Selection for Aircraft Structures: Weight Reduction Strategies. Airbus Technical Journal, 12(3), 45-62.

5. Boeing. (2018). Current Market Outlook 2018–2037. Boeing Commercial Airplanes, Seattle, WA.

6. International Air Transport Association. (2022). Fuel Fact Sheet. IATA Economics, Montreal, Canada.
