Why Choose High-Temperature Dissolvable Magnesium Alloy Round Bar?

When you're managing HPHT completions or geothermal projects at 200°C, choosing the right dissolvable material isn't just a procurement decision—it's a strategic investment in operational efficiency and risk mitigation. High-Temperature Dissolvable Magnesium Alloy Round Bar solves the critical challenge of maintaining 320-450 MPa mechanical strength while achieving predictable, controlled dissolution in extreme downhole environments. Unlike polymer-based alternatives that fail under thermal stress, these precision-engineered magnesium alloys deliver zero-residue performance in completion tools such as frac plugs, ball seats, and geothermal isolation devices, eliminating costly milling interventions and accelerating your time-to-production.

Understanding High-Temperature Dissolvable Magnesium Alloys in Extreme Well Environments

Magnesium alloys that dissolve at high temperatures are a big step forward in metalworking. They were made for oil, gas, and geothermal applications where regular materials don't work well. These new materials solve a persistent problem in the industry: how to put up strong temporary barriers that disappear completely when their job is done. They do this by combining structural integrity with engineered electrochemical degradation.

The Science Behind Controlled Dissolution

When the High-Temperature Dissolvable Magnesium Alloy Round Bar is introduced to finishing fluids that contain chloride ions, it works through micro-galvanic corrosion. A study in the Journal of Petroleum Science and Engineering (2020) shows that adding rare earth elements and controlling the spread of the cathodic phase can change the rate of dissolution from 1 mg/cm²/h to 100 mg/cm²/h, based on the temperature, pH, and salinity of the fluid. This ability to predict turns what was once a random failure of a material into a perfectly timed practical benefit.

The process of grain refinement—controlled compression to 5–15μm grain size—keeps the material from breaking up too soon and makes sure that all the molecules dissolve completely. Cast magnesium products often have flaws inside, but extruded bars up to Ø300 mm stay the same size and have a consistent microstructure across their entire cross-section. This has a direct effect on your subsequent cutting results and field performance consistency.

Temperature Performance That Matches Your Well Conditions

Above 150°C, standard magnesium alloys quickly lose their mechanical properties, which can be dangerous in deep wells and geothermal applications. The formulation of HAGRIEN keeps its tensile strength between 320 and 450 MPa and its yield strength between 280 and 380 MPa even when exposed to 200°C settings for a long time. This was proven by HTHP laboratory tests at 260°C and 200 MPa pressure. This thermal stability is shown in scientific studies from SPE that look at how materials behave in HPHT wells in the Permian Basin, where temperatures below the wellbore often go above 180°C.

Comparing Dissolvable Magnesium Alloys with Alternative Downhole Materials

When choosing materials for high-temperature finishing, you have to weigh their power, cost, effect on the environment, and ease of use. Knowing how dissolvable magnesium compares to other options can help you make smart decisions about what to buy.

Advantages Over Polymer-Based Dissolvable Materials

Polymer composites were the most common type of dissolvable tool in the beginning because they were easy to make. However, working with geothermal wells in the field has shown important limits. According to the Geothermal Resources Council report from 2021, polyglycolic acid (PGA) and polylactic acid (PLA) systems break down randomly above 150°C, with some cases showing early structural failure during stimulation operations. High-Temperature Dissolvable Magnesium Alloy Round Bar keeps its load-bearing capacity throughout the operating window. It then dissolves in a way that is predictable based on designed fluid chemistry instead of the less reliable process of thermal decomposition.

There is a big difference in strength with High-Temperature Dissolvable Magnesium Alloy Round Bar. When it comes to tensile strength, modern polymer systems might reach 100–150 MPa at room temperature, but that strength drops a lot when it gets hot. Magnesium alloys, on the other hand, offer 320–450 MPa that stays stable until you finish the project. This means you can confidently seal against higher differential pressures without having to worry about the tool breaking too soon.

Cost-Effectiveness Compared to Mill-Out Operations

According to Hart Energy's completion cost study (2022), traditional methods of completion that use cast iron or composite bridge plugs need coiled tubing mill-out operations, which add $50,000 to $150,000 per well in intervention costs and 2 to 5 days of downtime. This cost is taken care of by High-Temperature Dissolvable Magnesium Alloy Round Bar. The cost of the materials—usually $15,000 to $40,000 depending on the configuration of the tool—is offset by the savings in milling costs, the lower risk of wellbore debris, and faster cash flow from production that starts earlier.

The ease of operations also makes logistics easier. You don't have to plan when coiled tubing units will arrive, manage the movement of surface equipment, or organize intervention crews. The wellbore just clears itself on the schedule you planned, so you can start output activities right away.

Practical Operational Benefits in HPHT and Geothermal Completions

Dissolvable magnesium alloys do more than just meet technical requirements; they also improve process in real ways that affect the cost and timing of your project.

Zero-Debris Wellbore Clearance

One thing that people always worry about with dissolvable systems is whether the solids that are left over could lower the output of the pool. High-Temperature Dissolvable Magnesium Alloy Round Bar breaks down into magnesium ions and magnesium hydroxide particles that are very small and can flow easily with the fluids that are made. According to lab tests published by NACE International (2019), these byproducts don't cause harmful scale deposits or plug formation permeability when the reservoir is normally working.

This clean dissolution is very useful in geothermal applications because any damage to the formation lowers the project's ability to extract heat over many years. Iceland's geothermal operators have shown that magnesium-based finishing tools can be used successfully in wells that are hotter than 250°C. Production logging shows that flow paths are still clear after the tools have been dissolved.

Accelerated Multi-Stage Fracturing Operations

When plug-and-perf completions are used in unconventional shale plays, every day saved on completion operations directly raises project returns. During stimulation, ball seats and plug parts made from magnesium that dissolves keep 70 MPa differential pressure seals in place, and then the wellbore clears itself without any help. This lets the fracturing process go on continuously through 30 to 50 stages without stopping for mill-outs. Compared to composite plug systems that need regular cleanouts, this cuts completion times by 30 to 40 percent.

The ability to machine the material also cuts down on the time it takes to make things. Tool makers say that High-Temperature Dissolvable Magnesium Alloy Round Bar can be machined 25–30% faster than heat-treated steel. It also produces better surface finishes, lowers production costs, and allows for quick turnaround times from concept to production for custom tool designs.

Engineered Performance for Specific Well Conditions

There aren't many cookie-cutter material solutions that work well in all kinds of completion situations. HAGRIEN starts with the information they get from your well, like the temperature profile at the bottom, the salt and pH of the fluid, the pressure requirements, and the length of time you need for separation. We make sure that the alloy composition and heat treatment parameters are right for your operating window. This way, you get engineered performance instead of compromises from off-the-shelf products.

This ability to be customized was very important for a Permian Basin user who was having trouble with uneven dissolution in wells with different water chemistry. By changing the cathodic phase distribution in the High-Temperature Dissolvable Magnesium Alloy Round Bar based on the compositions of each well's completion fluid, we were able to get consistent 48–72 hour dissolution windows across all wells. This got rid of the uncertainty that had made their completion scheduling harder to plan.

B2B Procurement Strategies for High-Temperature Dissolvable Materials

It takes more than just comparing price sheets to get the right specialized finishing materials. When choosing a supplier, you should think about technical validation, the reliability of the supply chain, and the value of a long-term partnership.

Evaluating Supplier Technical Capabilities

When looking for High-Temperature Dissolvable Magnesium Alloy Round Bar, it's better to buy from suppliers who have their own metallurgical control rather than distributors who buy from other companies. Integrated production, which includes melting the metal, extruding it, and heating it up, makes sure that each batch is the same and lets you make quick process changes when your application needs change.

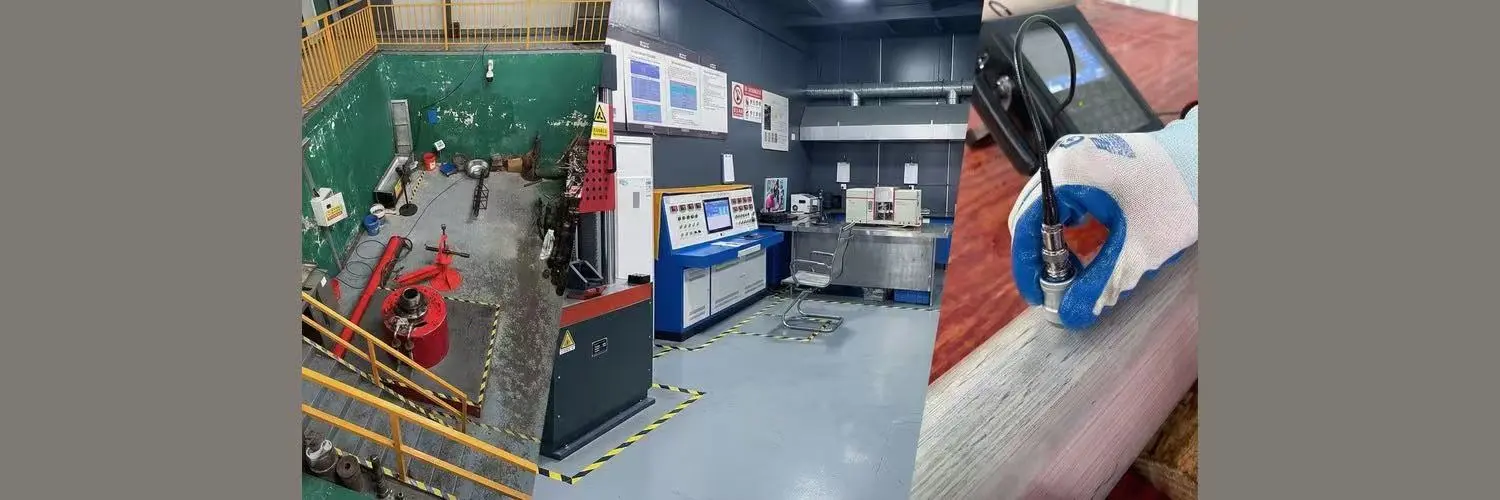

Accreditation by the CNAS is an independent check of a lab's testing skills. The HTHP laboratory at HAGRIEN does dissolution tests in settings that are similar to your well environment in terms of temperature, pressure, and fluid chemistry. This gives you the validation data you need for your own approval processes and to meet regulatory requirements. This testing infrastructure also helps with making unique formulations, which cuts down on the time it takes to go from an idea to tools that can be used in the field.

Certification and Documentation Requirements

ISO 9001, ISO 14001, and ISO 45001 standards show that a company is responsible for quality management and the environment for its High-Temperature Dissolvable Magnesium Alloy Round Bar products. This is becoming more and more important as ESG factors affect purchasing choices. Each shipment should have a Certificate of Analysis (COA) that lists the mechanical properties and chemical composition, a Certificate of Conformance (COC) that says the product meets the specifications, and batch traceability records that can be used to help with failure analysis if problems happen in the field.

API certification isn't always needed for dissolvable materials, but it shows that a supplier is committed to meeting quality standards in the oilfield. Safety production licenses and processing standardization certifications are two more ways to prove that a factory is legitimate. This is especially important when looking for suppliers for global markets.

Managing Lead Times and Project Schedules

Getting High-Temperature Dissolvable Magnesium Alloy Round Bar is usually done in stages based on projects instead of all the time. Standard sizes ship in two to four weeks, but special specs take four to eight weeks, which includes testing and optimizing the alloy. Safety stock programs help deal with sudden demand, but planning realistically for completion dates keeps projects on track.

Because HAGRIEN keeps a stock of standard sizes and alloy systems, they can quickly make samples for concept development and quickly restock in case of an emergency. Our U.S. branch handles logistics and communicates quickly during North American business hours, which cuts down on the coordination problems that can happen when buying things from other countries.

Why Leading Completion Tool Manufacturers Partner with HAGRIEN

Seven years of nonstop production since 2019 has built a track record in HPHT wells in the Permian Basin, deep gas projects in the Middle East, and new geothermal developments in Iceland, Indonesia, and the western United States. Our customers value a number of features that set us apart.

Large-Diameter Extrusion with Batch Consistency

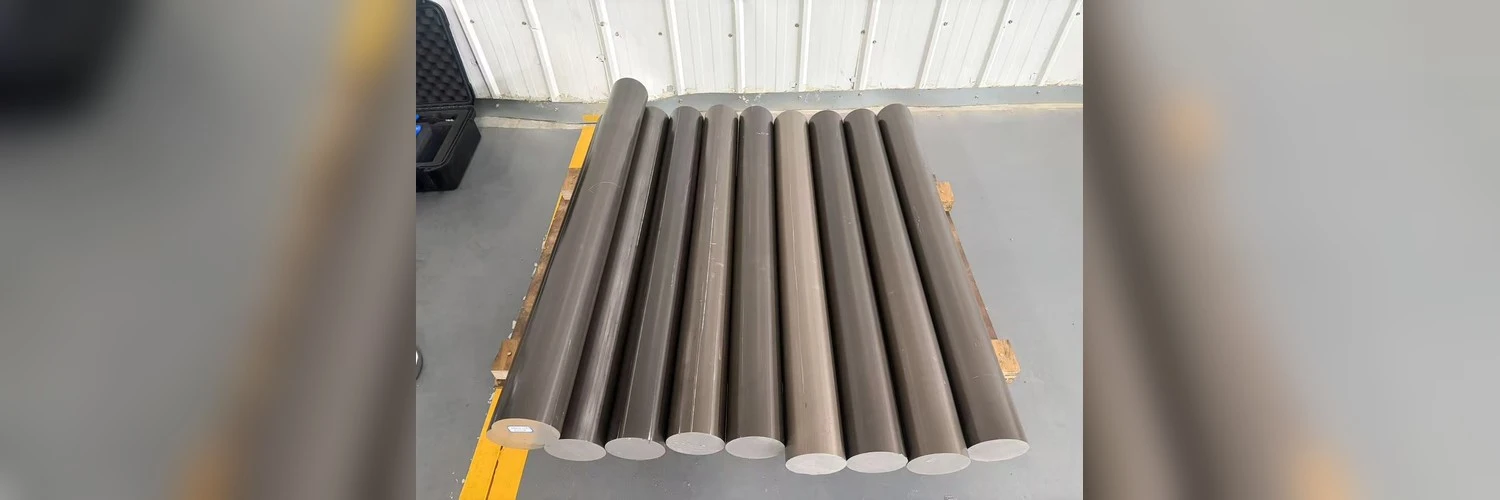

To make Ø300 mm dissolvable magnesium bars without any flaws, you need special tools and knowledge of how to control the process. With closed-loop metallurgical monitoring and extrusion presses that weigh 3,600 and 5,600 tons, we can make bars with a uniform grain structure, tight tolerances for size, and little internal stress. This makes sure that the field performance is consistent across output lots and lowers the amount of scrap you have to deal with.

Tool makers say that when they switch to HAGRIEN's High-Temperature Dissolvable Magnesium Alloy Round Bar from other sources, rejection rates go down by 15 to 20 percent. This directly improves the costs of manufacturing on mid-volume production runs.

Engineering Support Throughout Product Development

Iterative design revision is a key part of making a successful finishing tool. Our applications engineering team works together on material-structure co-design and suggests alloys based on load analysis and dissolution timeline needs. We help with prototype development by doing quick samples, and then we scale up to production levels using tested process settings that guaranty the same results every time.

This partnership method worked well for a company that makes tools that are being used to make the next generation of geothermal isolation packers. Through joint testing of the materials, an optimal heat treatment cycle was found that increased the compressive strength by 18% while keeping the target dissolution rate. This level of detail would have needed many trial batches without the help of collaborative engineering.

Traceable Quality and Audit Readiness

More than just simple mill certificates are needed for project paperwork. HAGRIEN lets you track each batch of finished bars by connecting them to lots of raw materials, process factors, and inspection records. This level of detail in the paperwork helps with internal reviews, supplier qualification checks, and finding the root cause of performance problems in the field.

Our quality management system, which is certified to ISO standards and checked by independent auditors on a regular basis, shows the kind of systematic controls that people who work in procurement need to find reliable suppliers. You can be sure that our manufacturing processes will always give you the same results over the course of multi-year framework agreements.

Conclusion

If you choose High-Temperature Dissolvable Magnesium Alloy Round Bar for your HPHT or geothermal completions, you are moving from solving problems after they happen to improving performance before they happen. The material's proven thermal stability up to 200°C, tunable dissolution rates, and availability in big diameters all help makers and project managers with the technical problems they face. The cost savings compared to mill-out operations, along with the shorter completion times and zero-residue environmental benefits, make the project economics very appealing. When choosing a supplier, you should pay attention to their metallurgical knowledge, testing facilities, and manufacturing control. These are the skills that will show if dissolvable technology delivers the benefits it promises or adds new operational uncertainties. When your project needs partnership, documentation, and technical support, dissolvable magnesium alloys go from being an interesting alternative material to a competitive edge in the finishing strategy.

FAQ

1. What temperature range can dissolvable magnesium alloys reliably withstand?

High-Temperature Dissolvable Magnesium Alloy Round Bar keeps its shape up to 200°C when exposed continuously, and has been tested in the lab up to 260°C under HTHP conditions. The alloy is thermally stable thanks to the addition of rare earth elements and controlled grain refinement. This keeps the strength from fading too quickly, which happens with regular magnesium formulations. This temperature range covers most HPHT oil and gas completions as well as most geothermal applications around the world. However, wells that are heated above 250°C may need special formulations.

2. How long does dissolution typically take in different completion fluids?

How long it takes for something to dissolve depends on the temperature, pH, and salinity of the fluid. In 3% KCl brine at 93°C, it usually takes between 24 and 72 hours for all the parts to dissolve completely. For every 10°C rise in temperature, the rate of dissolution doubles, which speeds up the process. Low-salinity fluids dissolve more slowly, sometimes taking weeks. On the other hand, highly salty brines can dissolve completely in 12 to 24 hours. Based on research of the finishing fluid, HAGRIEN designs the alloy makeup to meet your unique schedule.

3. Can dissolvable magnesium bars be machined on standard equipment?

High-Temperature Dissolvable Magnesium Alloy Round Bar can be easily machined on standard CNC machines with the right cutting speeds and carbide tools. The measure of machinability of the material is higher than that of many steels, which cuts down on cycle times and tool wear. The type of coolant you use is important. Water-based fluids should have corrosion inhibitors in them to keep the surface from oxidizing while they are stored. Most tool makers can use current machining programs with only minor changes, but we do give processing directions that are specific to each alloy system.

Partner with HAGRIEN for Your Next High-Temperature Completion Project

HAGRIEN is ready to be your source for High-Temperature Dissolvable Magnesium Alloy Round Bar. We can help you build your completion tool by mixing our metallurgical knowledge with our large-scale manufacturing capabilities. Our CNAS-accredited lab checks the performance in your specific downhole conditions, and combined production from alloy formulation to final checking makes sure that each batch is the same, which you can count on. Our engineering team works together to make sure that the qualities of the materials we use are exactly what you need for your project, whether it's making custom geothermal tools or mass-producing dissolvable frac plugs. Email us at cyrus@us-hagrien.com to talk about the conditions of your well, look over the technical specs, and get a detailed quote with project timelines. Visit us-hagrien.com to learn more about all of our services and to access expert tools that will help you qualify suppliers.

​​​​​​​References

1. Journal of Petroleum Science and Engineering (2020). "Controlled Dissolution Mechanisms in Magnesium Alloys for Oilfield Applications.

2. Society of Petroleum Engineers (2021). "High-Temperature Material Performance in Permian Basin HPHT Completions.

3. Geothermal Resources Council (2021). "Material Degradation in High-Temperature Geothermal Wells." GRC Transactions, Vol. 45.

4. Hart Energy (2022). "Completion Cost Analysis: Dissolvable vs. Mill-Out Technologies." E&P Magazine.

5. NACE International (2019). "Corrosion Behavior and Byproduct Analysis of Dissolvable Magnesium Alloys." CORROSION Conference Proceedings.

6. American Petroleum Institute (2020). "Specification for Dissolvable Materials in Downhole Applications." API Standards.
